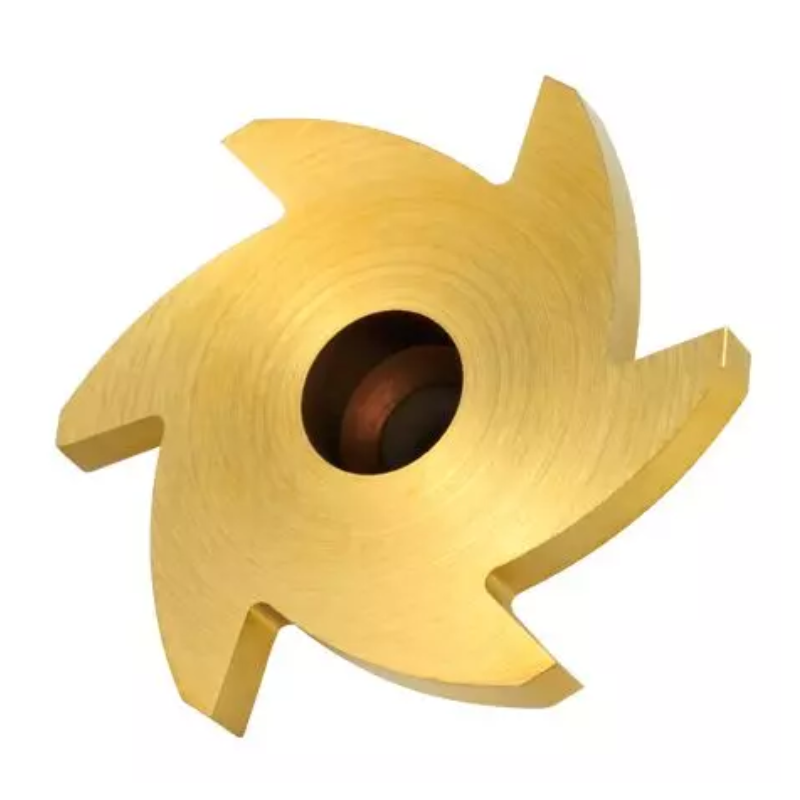

Y.T. Solid UFO T-Slot Insert - Steels, Stainless, Super Alloys - 22mm Cutter Diameter 1.9mm Thickness 5.5mm Cutting Depth 4 Teeth (3T1022C-1.9-ME.B100)

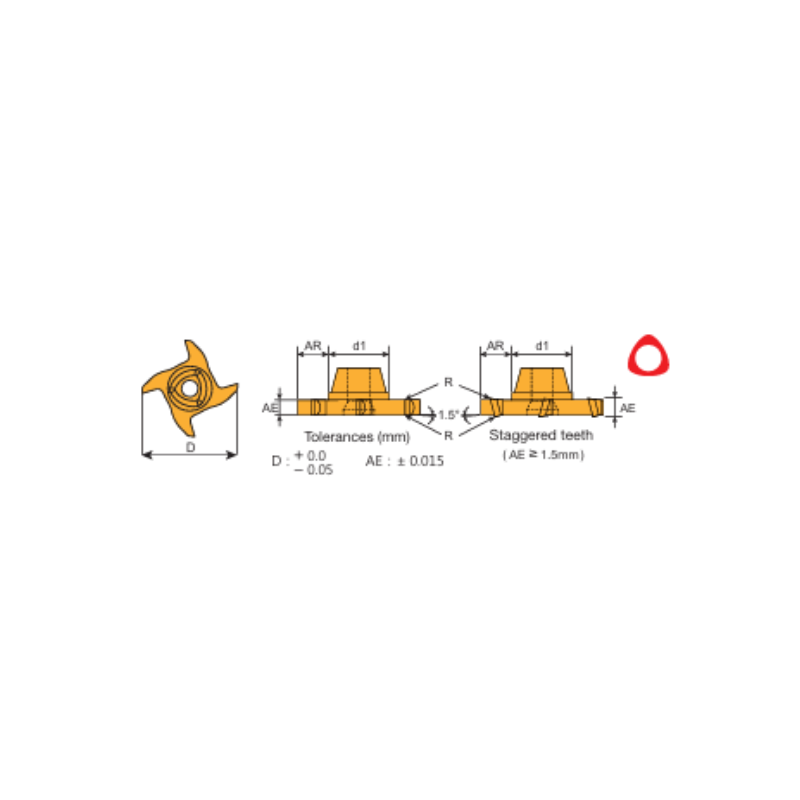

Y.T. Solid UFO T-Slot Insert is a precision cutting insert designed for small-slot work in hard-to-machine materials. It features a tapered-polygon interface produced by complete-grind processing to achieve a ±0.01 mm connect-positioning tolerance, boosting both machining accuracy and insert life. With a 22 mm cutter diameter, 1.9 mm thickness, 5.5 mm cutting depth, and 4 teeth, this insert excels in steels, stainless steels, and super alloys.

The UFO geometry and robust build support a broad sizing range: inserts cover diameters from 10 to 32 mm, with a minimum thickness of 0.5 mm. For thinner needs, we stock every 0.1 mm increment, ensuring fast, ready-to-use options for tight tolerances and precise slots. In addition, the design emphasizes efficient chip evacuation to maintain smooth cuts and consistent finishes even in demanding materials.

• Ultra-tight interface for repeatable accuracy: The complete-grind and tapered-polygon interface deliver ±0.01 mm mating tolerance, reducing runout and extending insert life in demanding slots.
• Broad, fine-grain sizing with fast availability: Diameters 10–32 mm and minimum thickness 0.5 mm, with 0.1 mm step options for thinner inserts, so you can match the exact slot width quickly and without compromise.
• Efficient chip evacuation for clean slots: UFO geometry promotes excellent chip flow, minimizing clogging and heat buildup for reliable cuts in steels, stainless, and super alloys.

In practice, you’ll experience steadier feeds, cleaner slot finishes, and fewer tool changes—delivering faster throughput, reduced downtime, and more consistent results across a range of projects that demand precision in tough materials.
