Y.T. Indexable Side Milling Cutter For SNGX/SNGW 110 Inserts - 80mm Diameter 4mm Insert Thickness 17mm Cutting Depth 8 Teeth (STL080-4-22)
| Saw Diameter (D) | 80 |
| Insert Thickness (AE) | 4 |
| Cutting Depth (AR) | 17 |
| Number of Teeth (Z) | 8 |
| d | 22 |
| Blade Width (P) | 3.4 |
Learn more about Klarna

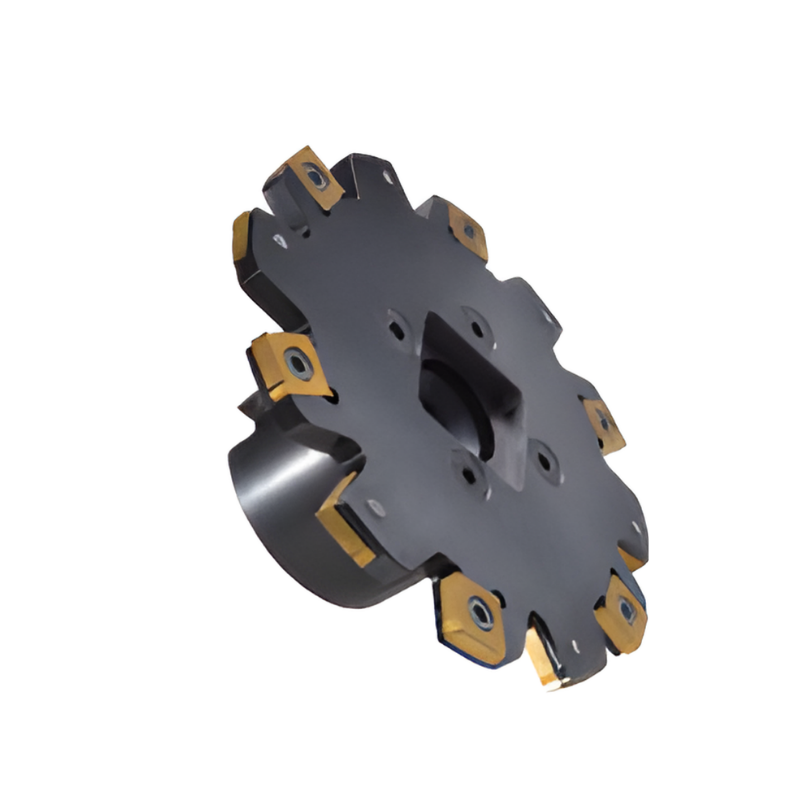

The Y.T. 80 mm indexable side milling cutter is built for precision machinists who demand flexibility and rapid tool changes. Designed for use with SNGX/SNGW 110 inserts, it delivers reliable performance in slotting and side milling applications at high speeds.
- Diameter: 80 mm
- Teeth: 8 teeth for balanced cutting and consistent finishes
- Insert compatibility: accepts indexable SNGX/SNGW 110 inserts
- Insert thickness: 4 mm inserts for rigid engagement and stability
- Cutting depth: 17 mm maximum cutting depth for deeper slots
- Safe insert clamping: secure, reliable insert clamping design
- Chip evacuation: patented groove design to prevent chip blockages during operation
- Max RPM readiness: Swedish-certified to operate securely up to 17,200 RPM
This cutter is designed to reduce downtime with easy insert replacement while maintaining strong performance across a range of materials. Its robust clamping and integrated chip evacuation help maintain precise dimensions and smooth finishes even during high-speed slotting and side milling. The versatile insert compatibility minimizes inventory, allowing quick adaptation to different machining tasks without swapping tools.

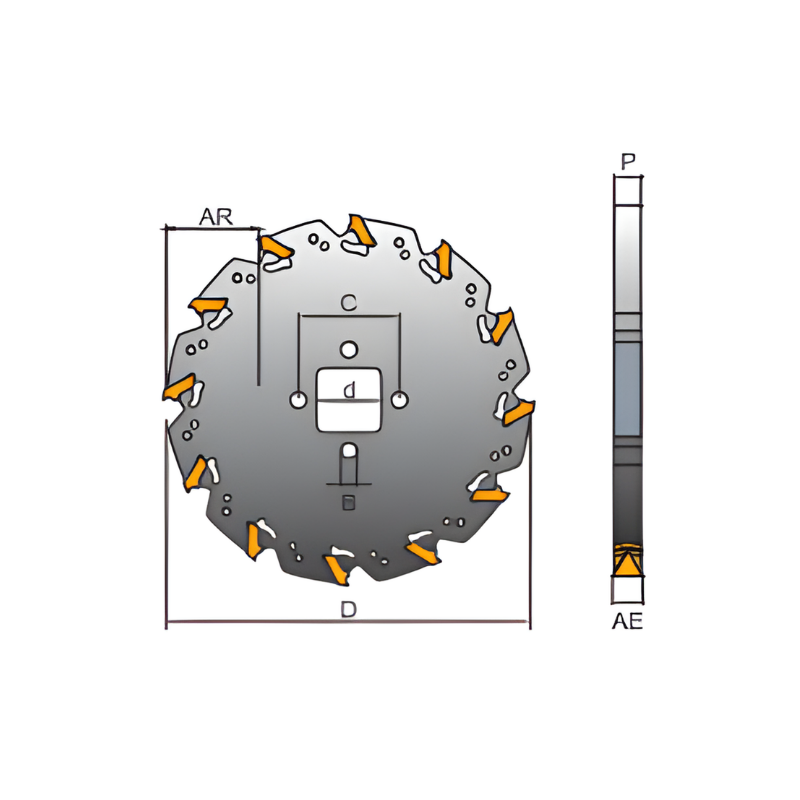

| Saw Diameter (D) | 80 |
| Insert Thickness (AE) | 4 |
| Cutting Depth (AR) | 17 |
| Number of Teeth (Z) | 8 |
| d | 22 |
| Blade Width (P) | 3.4 |
| KG | 0.16 |
| Max RPM | 13700 |
| C | 34 |
| b | 5 |
| Insert | SNGX/SNGW 1102 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable Side Milling Cutter
View full collection →You are viewing PRO2201572. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201572 Viewing | 80 | 4 | 17 | 8 | £468.06 | 5 days | |
| PRO2201573 | 80 | 5 | 17 | 8 | £468.06 | 5 days | |
| PRO2201574 | 100 | 4 | 27 | 10 | £582.82 | 5 days | |
| PRO2201575 | 100 | 5 | 27 | 10 | £582.82 | 5 days | |
| PRO2201576 | 125 | 4 | 33 | 12 | £726.27 | 5 days | |
| PRO2201577 | 125 | 5 | 33 | 12 | £726.27 | 5 days | |
| PRO2201578 | 160 | 4 | 50.5 | 16 | £927.05 | 5 days | |
| PRO2201579 | 160 | 5 | 50.5 | 16 | £927.05 | 5 days |
