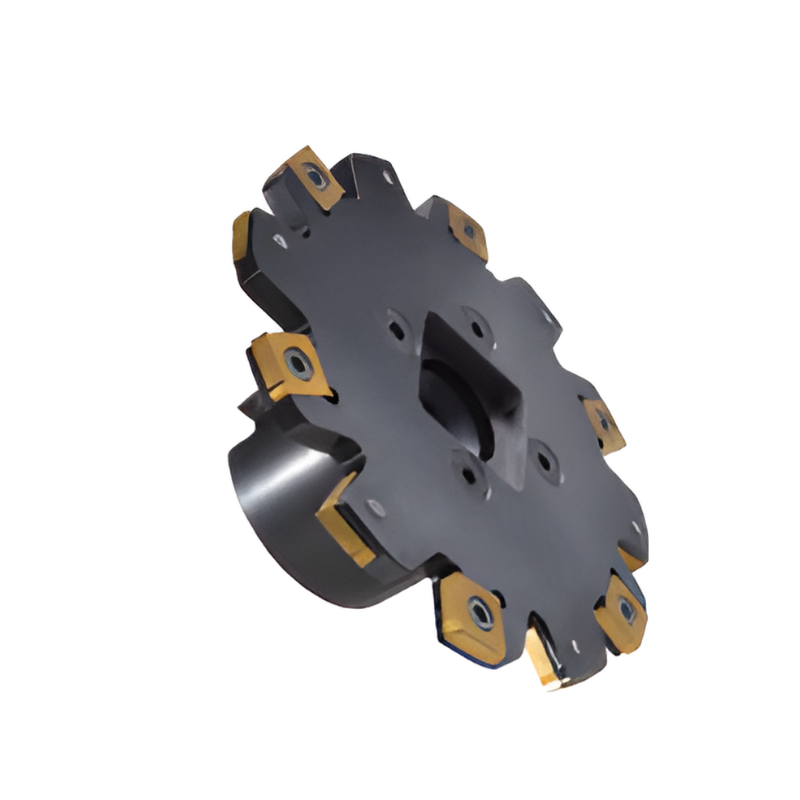

Y.T. Indexable Side Milling Cutter For SNGX/SNGW 110 Inserts - 125mm Diameter 4mm Insert Thickness 33mm Cutting Depth 12 Teeth (STL125-4-32)
| Saw Diameter (D) | 125 |
| Insert Thickness (AE) | 4 |
| Cutting Depth (AR) | 33 |
| Number of Teeth (Z) | 12 |
| d | 32 |
| Blade Width (P) | 3.4 |
Learn more about Klarna
Y.T. Indexable Side Milling Cutter for SNGX/SNGW 110 Inserts delivers reliable, high-precision side milling with a dedicated insert system. Designed around a 125 mm diameter and 33 mm cutting depth, it spans 12 teeth for steady, efficient material removal.
- Diameter: 125 mm
- Insert Thickness: 4 mm
- Cutting Depth: 33 mm
- Teeth: 12
- Insertion System: Indexable carbide inserts; compatible with over 10 insert types
- Clamp Design: Safe and reliable insert clamping, certified by Swedish customers for secure operation at up to 17,200 RPM
- Chip Evacuation: Patented chip evacuation design prevents blockages within the groove during cutting
- Series Range: Standard thickness options from 1.4 mm to 5.5 mm; cutter diameters from 50 mm to 300 mm across the series
This cutter combines quick insert replacement with a robust clamping system, minimizing downtime and helping maintain consistent cutting quality. The specialized chip evacuation and the broad insert compatibility ensure reliable performance across demanding milling tasks, making it a solid choice for precision side milling operations.

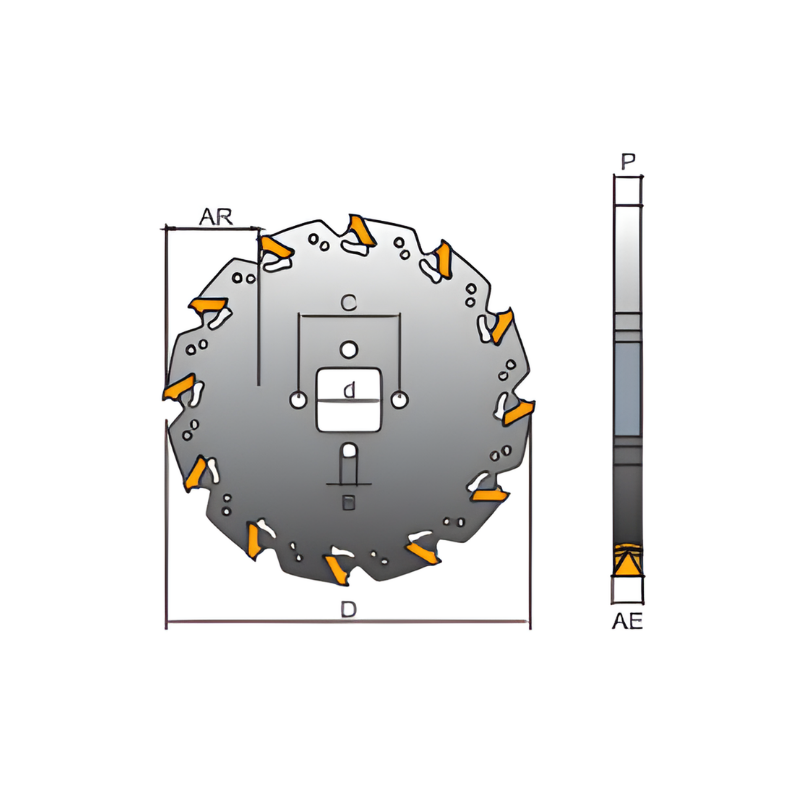

| Saw Diameter (D) | 125 |
| Insert Thickness (AE) | 4 |
| Cutting Depth (AR) | 33 |
| Number of Teeth (Z) | 12 |
| d | 32 |
| Blade Width (P) | 3.4 |
| KG | 0.37 |
| Max RPM | 10900 |
| C | 46 |
| b | 6 |
| Insert | SNGX/SNGW 1102 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable Side Milling Cutter
View full collection →You are viewing PRO2201576. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201572 | 80 | 4 | 17 | 8 | £468.06 | 5 days | |
| PRO2201573 | 80 | 5 | 17 | 8 | £468.06 | 5 days | |
| PRO2201574 | 100 | 4 | 27 | 10 | £582.82 | 5 days | |
| PRO2201575 | 100 | 5 | 27 | 10 | £582.82 | 5 days | |
| PRO2201576 Viewing | 125 | 4 | 33 | 12 | £726.27 | 5 days | |
| PRO2201577 | 125 | 5 | 33 | 12 | £726.27 | 5 days | |
| PRO2201578 | 160 | 4 | 50.5 | 16 | £927.05 | 5 days | |
| PRO2201579 | 160 | 5 | 50.5 | 16 | £927.05 | 5 days |
