Y.T. Indexable Side Milling Cutter For SNGX/SNGW 110 Inserts - 100mm Diameter 4mm Insert Thickness 27mm Cutting Depth 10 Teeth (STL100-4-22)
| Saw Diameter (D) | 100 |
| Insert Thickness (AE) | 4 |
| Cutting Depth (AR) | 27 |
| Number of Teeth (Z) | 10 |
| d | 22 |
| Blade Width (P) | 3.4 |
Learn more about Klarna

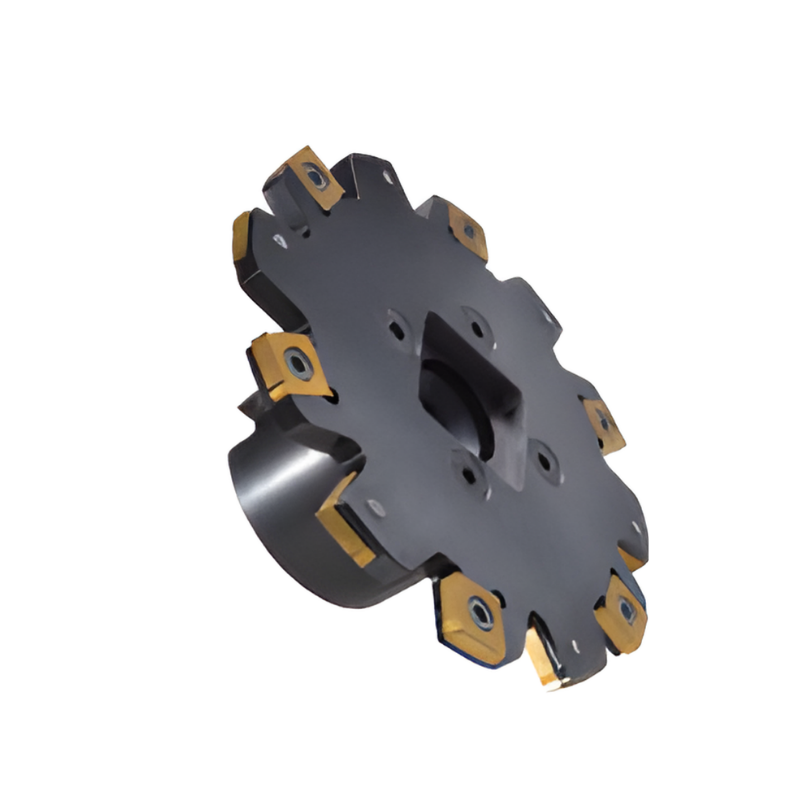

The Y.T. Indexable Side Milling Cutter (STL100-4-22) is a 100 mm diameter milling cutter with 27 mm cutting depth and 10 teeth, designed for SNGX/SNGW 110 inserts. It uses 4 mm thick indexable carbide inserts and is built for high-speed milling up to 17,200 RPM.
- Diameter: 100 mm
- Insert thickness: 4 mm
- Cutting depth: 27 mm
- Teeth: 10
- Insert compatibility: SNGX/SNGW 110 inserts
- Indexable carbide inserts: easy replacement
- Clamping design: Safe and reliable insert clamp design
- Chip evacuation: Patented design prevents chip blockages in the groove
- Max speed (certified): Up to 17,200 RPM
- Insert variety compatibility: Compatible with over 10 insert types
- Series insert thickness range: Standard thicknesses from 1.4 mm to 5.5 mm
This cutter delivers reliable, fast material removal with a straightforward insert-change process, helping to minimize downtime. The built-in chip evacuation design reduces the risk of groove blockages, while the wide insert compatibility and robust clamping provide consistent performance across a range of materials and applications—perfect for precise side milling and grooving tasks in professional shops.

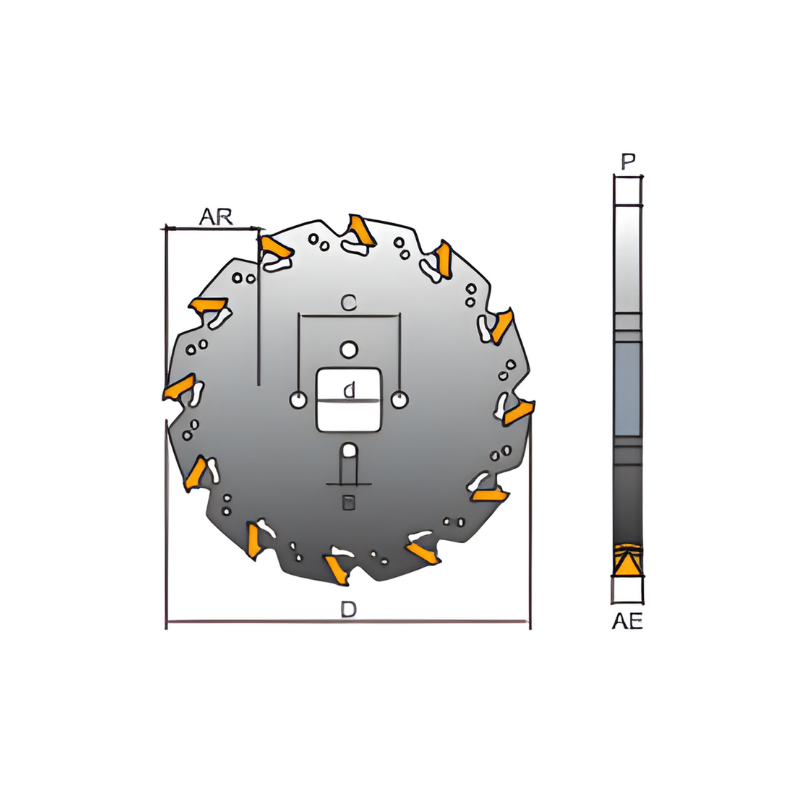

| Saw Diameter (D) | 100 |
| Insert Thickness (AE) | 4 |
| Cutting Depth (AR) | 27 |
| Number of Teeth (Z) | 10 |
| d | 22 |
| Blade Width (P) | 3.4 |
| KG | 0.26 |
| Max RPM | 12000 |
| C | 34 |
| b | 5 |
| Insert | SNGX/SNGW 1102 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable Side Milling Cutter
View full collection →You are viewing PRO2201574. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201572 | 80 | 4 | 17 | 8 | £468.06 | 5 days | |
| PRO2201573 | 80 | 5 | 17 | 8 | £468.06 | 5 days | |
| PRO2201574 Viewing | 100 | 4 | 27 | 10 | £582.82 | 5 days | |
| PRO2201575 | 100 | 5 | 27 | 10 | £582.82 | 5 days | |
| PRO2201576 | 125 | 4 | 33 | 12 | £726.27 | 5 days | |
| PRO2201577 | 125 | 5 | 33 | 12 | £726.27 | 5 days | |
| PRO2201578 | 160 | 4 | 50.5 | 16 | £927.05 | 5 days | |
| PRO2201579 | 160 | 5 | 50.5 | 16 | £927.05 | 5 days |
