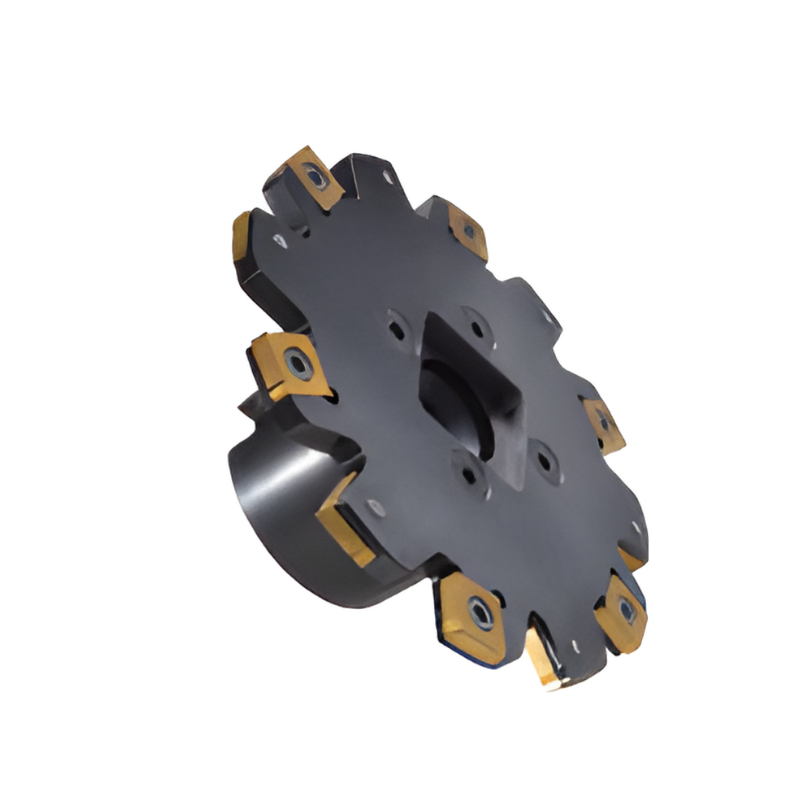

Y.T. Indexable Side Milling Cutter For SNGX/SNGW 110 Inserts - 100mm Diameter 5mm Insert Thickness 27mm Cutting Depth 10 Teeth (STL100-5-22)

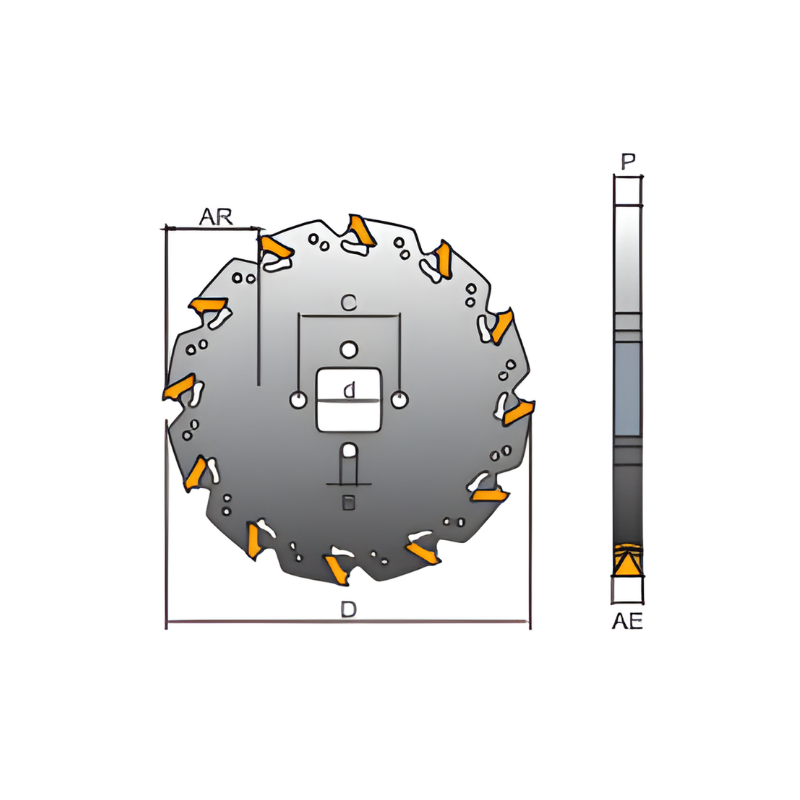

| Saw Diameter (D) | 100 |
| Insert Thickness (AE) | 5 |
| Cutting Depth (AR) | 27 |
| Number of Teeth (Z) | 10 |
| d | 22 |
| Blade Width (P) | 4.2 |
Learn more about Klarna
The Y.T. STL100-5-22 Indexable Side Milling Cutter is a precision tool designed for high-efficiency side milling with a 100 mm diameter, 27 mm cutting depth, and 10 teeth, optimized for SNGX/SNGW 110 inserts.
- Diameter: 100 mm
- Insert thickness: 5 mm
- Cutting depth: 27 mm
- Teeth: 10
- Insert system compatibility: Designed for SNGX/SNGW 110 inserts
- Insert compatibility: Compatible with over 10 different types of inserts
- Insert clamping design: Safe and reliable insert clamping for secure operation
- Chip evacuation: Patented chip evacuation design prevents blockages within the groove
- Maximum RPM: Certified for up to 17,200 RPM
- Standard insert thickness range: Accepts standard thicknesses from 1.4 mm to 5.5 mm
- Series diameter range: Part of the STL100-5 family with diameters from 50 mm to 300 mm
The design delivers tangible production benefits: quick, reliable insert changes reduce downtime, while the chip-evacuation system keeps grooves clear for consistent cuts. High-speed capability up to 17,200 RPM enables efficient material removal, and the 10-tooth configuration provides balanced cutting forces for stable, precise milling when working with SNGX/SNGW inserts.
| Saw Diameter (D) | 100 |
| Insert Thickness (AE) | 5 |
| Cutting Depth (AR) | 27 |
| Number of Teeth (Z) | 10 |
| d | 22 |
| Blade Width (P) | 4.2 |
| KG | 0.26 |
| Max RPM | 12000 |
| C | 34 |
| b | 5 |
| Insert | SNGX/SNGW 1103 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable Side Milling Cutter
View full collection →You are viewing PRO2201575. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201572 | 80 | 4 | 17 | 8 | £468.06 | 5 days | |
| PRO2201573 | 80 | 5 | 17 | 8 | £468.06 | 5 days | |
| PRO2201574 | 100 | 4 | 27 | 10 | £582.82 | 5 days | |
| PRO2201575 Viewing | 100 | 5 | 27 | 10 | £582.82 | 5 days | |
| PRO2201576 | 125 | 4 | 33 | 12 | £726.27 | 5 days | |
| PRO2201577 | 125 | 5 | 33 | 12 | £726.27 | 5 days | |
| PRO2201578 | 160 | 4 | 50.5 | 16 | £927.05 | 5 days | |
| PRO2201579 | 160 | 5 | 50.5 | 16 | £927.05 | 5 days |
