Y.T. Indexable Side Milling Cutter For SNGX/SNGW 110 Inserts - 80mm Diameter 5mm Insert Thickness 17mm Cutting Depth 8 Teeth (STL080-5-22)

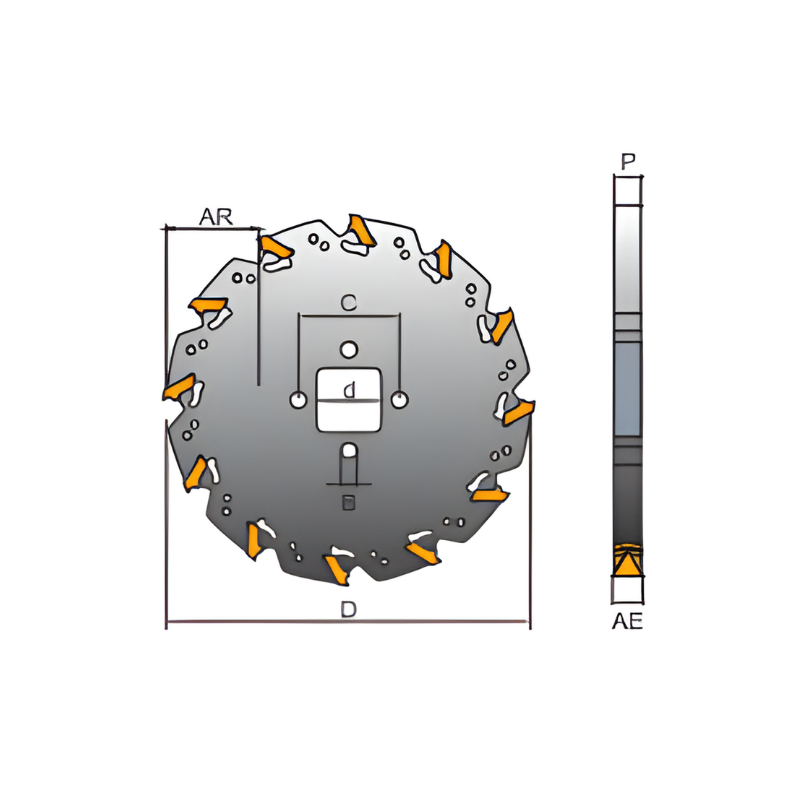

| Saw Diameter (D) | 80 |
| Insert Thickness (AE) | 5 |
| Cutting Depth (AR) | 17 |
| Number of Teeth (Z) | 8 |
| d | 22 |
| Blade Width (P) | 4.2 |
Learn more about Klarna

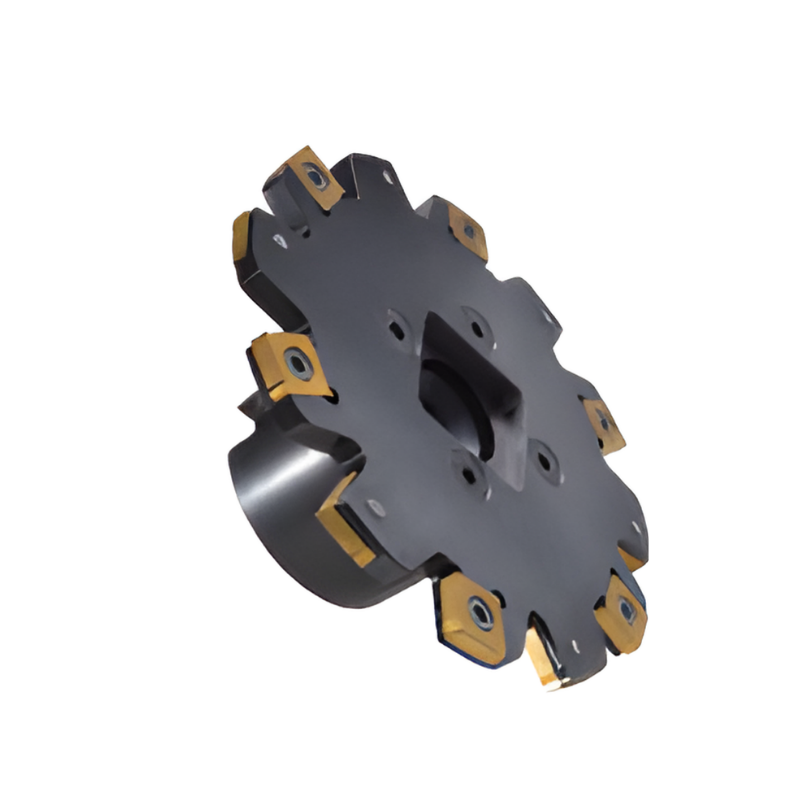

Introducing the Y.T. STL080-5-22 Indexable Side Milling Cutter—designed for SNGX/SNGW 110 inserts, this 80 mm diameter tool delivers precise side milling and slitting performance with a robust, compact form. It combines a 5 mm insert thickness and a 17 mm cutting depth to handle demanding metalworking tasks with consistency.
- Diameter: 80 mm
- Insert thickness: 5 mm
- Cutting depth: 17 mm
- Teeth: 8
- Insert type compatibility: SNGX/SNGW 110 inserts
- Insert clamping design: Safe and reliable insert retention for secure operation
- Max speed: Certified up to 17,200 RPM (Swedish customers verify performance)
- Chip evacuation: Patented design prevents chip blockages within the groove
- Insert system: Uses indexable carbide inserts; compatible with over 10 insert types
- Series range: Part of a broader family with standard thicknesses 1.4–5.5 mm and cutter diameters 50–300 mm
This cutter offers quick insert changes, modular insert compatibility, and reliable chip management, enabling smoother finishes and longer tool life. Its sturdy clamping and high-speed capability support both precision finishing and productive roughing, making the STL080-5-22 a versatile choice for professional workshops that demand consistent results from their indexable milling tooling.
| Saw Diameter (D) | 80 |
| Insert Thickness (AE) | 5 |
| Cutting Depth (AR) | 17 |
| Number of Teeth (Z) | 8 |
| d | 22 |
| Blade Width (P) | 4.2 |
| KG | 0.16 |
| Max RPM | 13700 |
| C | 34 |
| b | 5 |
| Insert | SNGX/SNGW 1103 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable Side Milling Cutter
View full collection →You are viewing PRO2201573. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201572 | 80 | 4 | 17 | 8 | £468.06 | 5 days | |
| PRO2201573 Viewing | 80 | 5 | 17 | 8 | £468.06 | 5 days | |
| PRO2201574 | 100 | 4 | 27 | 10 | £582.82 | 5 days | |
| PRO2201575 | 100 | 5 | 27 | 10 | £582.82 | 5 days | |
| PRO2201576 | 125 | 4 | 33 | 12 | £726.27 | 5 days | |
| PRO2201577 | 125 | 5 | 33 | 12 | £726.27 | 5 days | |
| PRO2201578 | 160 | 4 | 50.5 | 16 | £927.05 | 5 days | |
| PRO2201579 | 160 | 5 | 50.5 | 16 | £927.05 | 5 days |
