Y.T. Indexable Side Milling Cutter For SNGX/SNGW 110 Inserts - 125mm Diameter 5mm Insert Thickness 33mm Cutting Depth 12 Teeth (STL125-5-32)
| Saw Diameter (D) | 125 |
| Insert Thickness (AE) | 5 |
| Cutting Depth (AR) | 33 |
| Number of Teeth (Z) | 12 |
| d | 32 |
| Blade Width (P) | 4.2 |
Learn more about Klarna

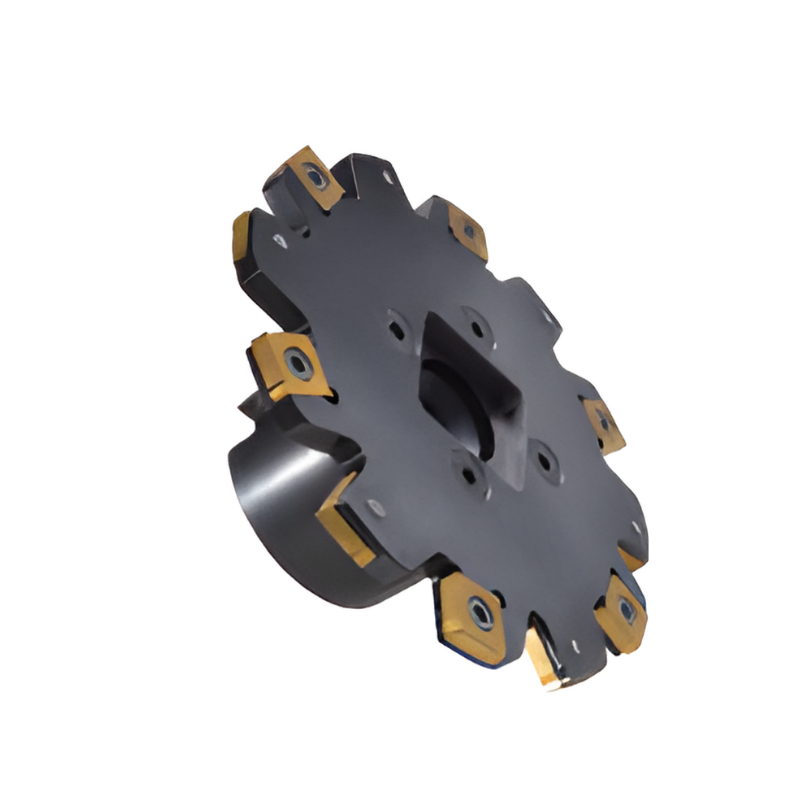

The Y.T. Indexable Side Milling Cutter is built for high-speed, precision milling with SNGX/SNGW 110 inserts. With a 125 mm diameter, 12 teeth, 33 mm cutting depth, and 5 mm insert thickness, it delivers reliable performance in demanding operations while enabling fast insert changes.
- Diameter: 125 mm
- Teeth: 12
- Cutting Depth: 33 mm
- Insert Thickness: 5 mm
- Insert System: SNGX/SNGW 110 inserts
- Max RPM: 17,200 RPM (certified)
- Clamping Design: Safe and reliable insert clamping design
- Chip Evacuation: Patented chip evacuation design prevents groove blockages
- Insert Compatibility: Compatible with over 10 types of inserts
- Series Flexibility: Standard thicknesses 1.4–5.5 mm; diameters 50–300 mm across the series
Designed to minimize downtime and maximize consistent results, this cutter uses indexable carbide inserts for quick replacement and adaptable performance across materials. The secure clamping reduces insert shift under load, while the patented chip evacuation system helps maintain clear grooves for smoother cuts and better surface finish. With broad insert compatibility and a robust 125 mm diameter, 12-tooth configuration, this cutter provides efficient material removal at high speeds while offering flexibility to tailor inserts to your specific applications.

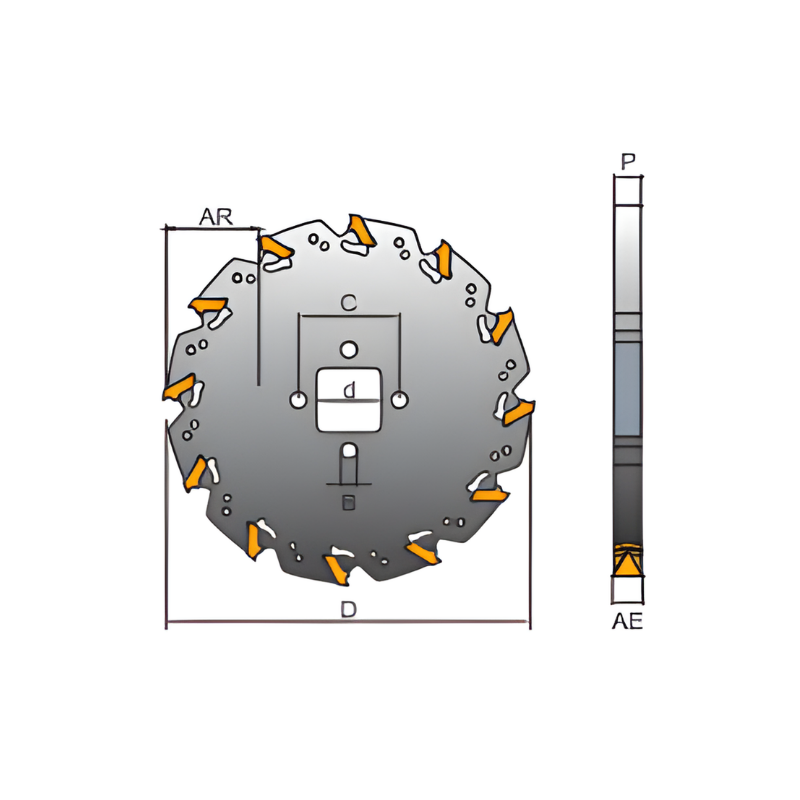

| Saw Diameter (D) | 125 |
| Insert Thickness (AE) | 5 |
| Cutting Depth (AR) | 33 |
| Number of Teeth (Z) | 12 |
| d | 32 |
| Blade Width (P) | 4.2 |
| KG | 0.37 |
| Max RPM | 10900 |
| C | 46 |
| b | 6 |
| Insert | SNGX/SNGW 1103 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable Side Milling Cutter
View full collection →You are viewing PRO2201577. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201572 | 80 | 4 | 17 | 8 | £468.06 | 5 days | |
| PRO2201573 | 80 | 5 | 17 | 8 | £468.06 | 5 days | |
| PRO2201574 | 100 | 4 | 27 | 10 | £582.82 | 5 days | |
| PRO2201575 | 100 | 5 | 27 | 10 | £582.82 | 5 days | |
| PRO2201576 | 125 | 4 | 33 | 12 | £726.27 | 5 days | |
| PRO2201577 Viewing | 125 | 5 | 33 | 12 | £726.27 | 5 days | |
| PRO2201578 | 160 | 4 | 50.5 | 16 | £927.05 | 5 days | |
| PRO2201579 | 160 | 5 | 50.5 | 16 | £927.05 | 5 days |
