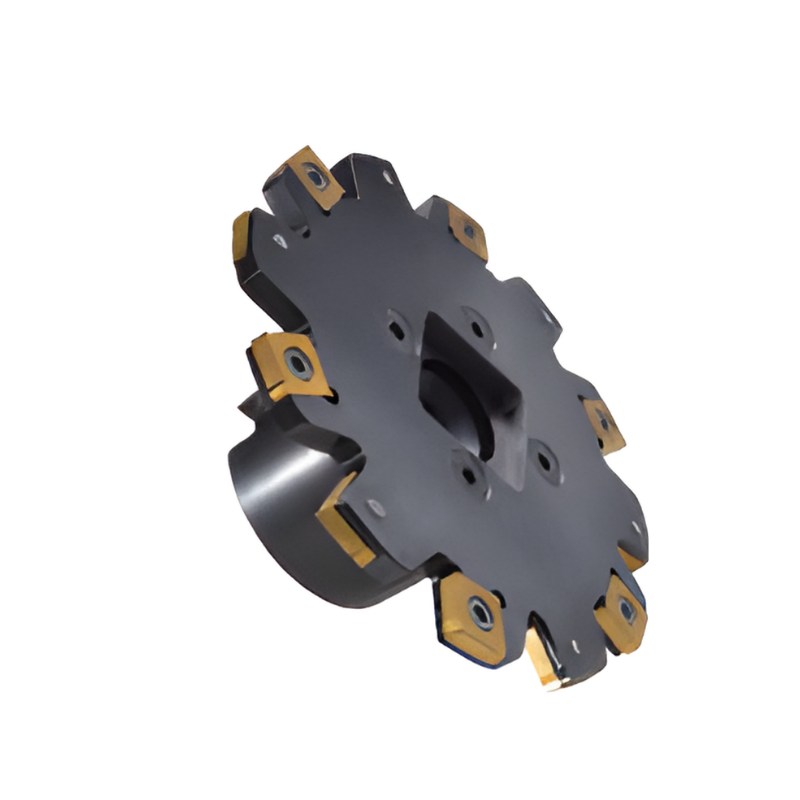

Y.T. Indexable Side Milling Cutter For SNGX/SNGW 110 Inserts - 160mm Diameter 4mm Insert Thickness 50.5mm Cutting Depth 16 Teeth (STL160-4-32)

The Y.T. Indexable Side Milling Cutter is a precision tool built for high-speed side milling with SNGX/SNGW 110 inserts. With a 160 mm diameter and 16 teeth, it delivers reliable performance and easy insert replacement in demanding production environments.

• Diameter: 160 mm
• Teeth: 16 cutting teeth for efficient material removal
• Insert thickness: 4 mm insert thickness compatibility
• Cutting depth: 50.5 mm maximum cutting depth
• Insert system: Indexable carbide inserts; compatible with over 10 insert types
• Clamping design: Safe and reliable insert clamping, certified by Swedish customers up to 17,200 RPM
• Chip evacuation: Patented chip evacuation design prevents chip blockages in the groove
• Series breadth: Part of a broader range with standard thicknesses 1.4–5.5 mm and diameters 50–300 mm

By using replaceable carbide inserts, you can refresh the cutting edge without replacing the entire cutter, reducing downtime and maintenance costs. The patent-pending chip evacuation system keeps chips clear of the groove, promoting smoother cuts and longer insert life. The tool's robust clamping minimizes insert movement even at high speeds, while the impressive 17,200 RPM capability supports fast material removal and improved productivity. The 160 mm diameter and 50.5 mm depth enable substantial material removal per pass in side milling tasks, and the ability to use more than 10 insert types adds flexibility to tailor performance for different workpieces and materials.
