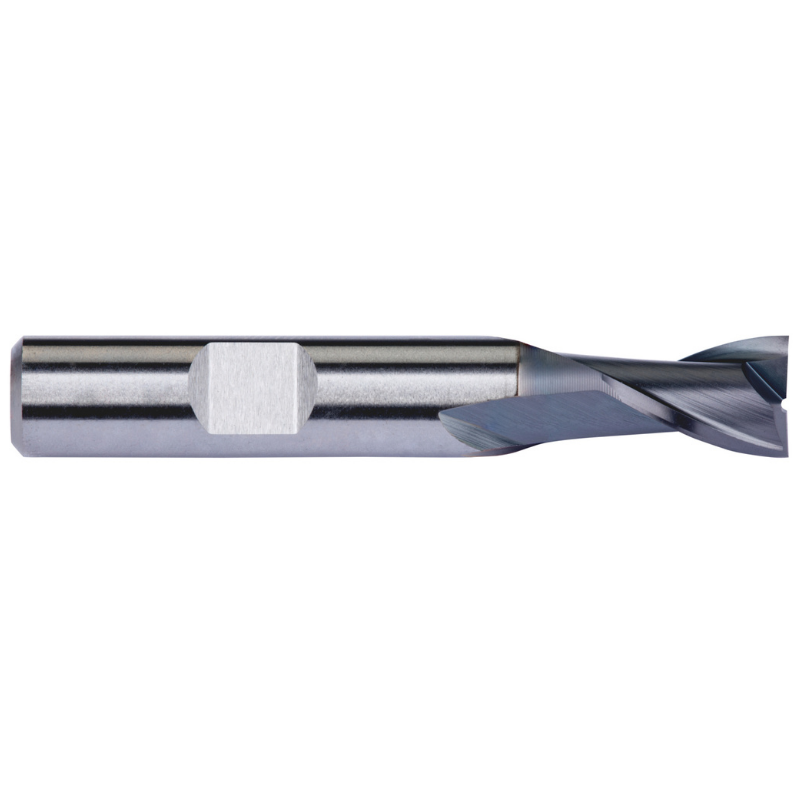

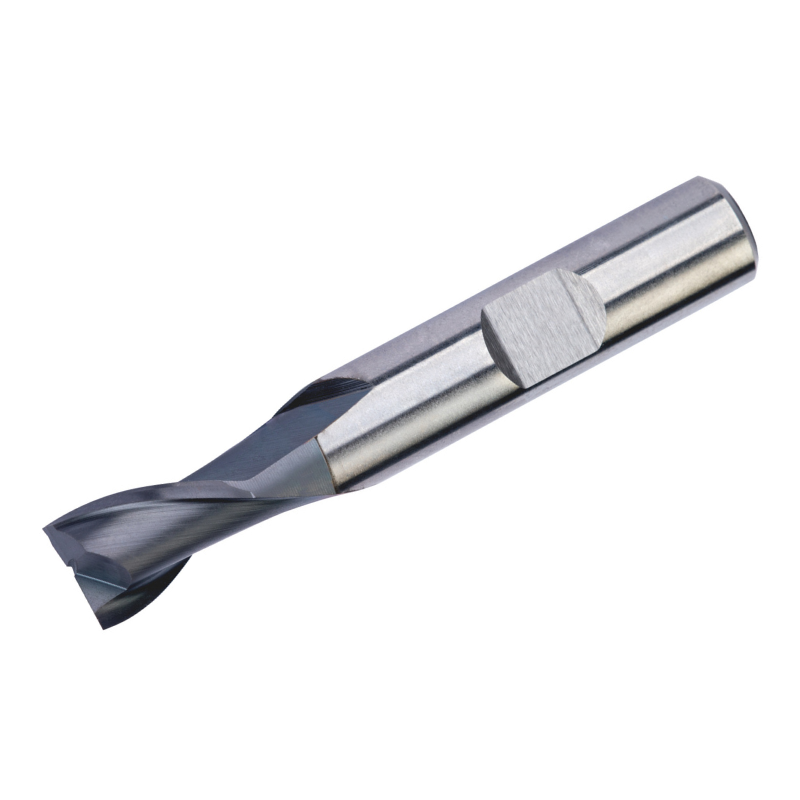

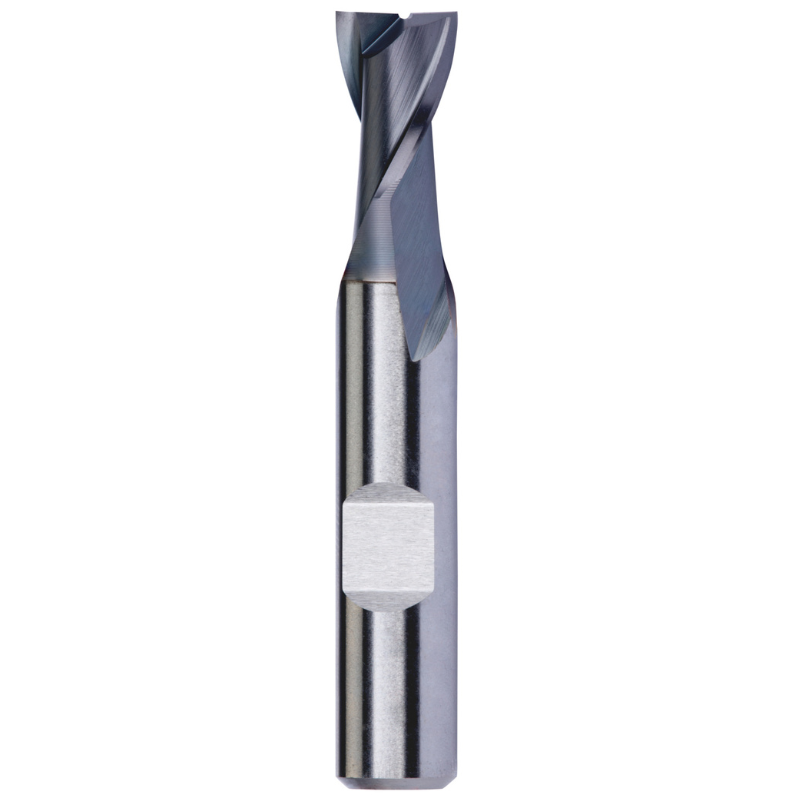

Dormer Pramet C126 10.0mm HSS-E-Powder Metal TICN Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C126 10.0 mm extra-short slot drill is a precise, two-flute tool designed for shoulder milling, slot milling, and ramping in tight pockets. Built on a powder‑metallurgical HSS‑E base with TiCN coating, it delivers dependable performance in free‑machining steels, cast iron, copper alloys, and titanium alloys.

• Diameter: 10.0 mm
• Number of Flutes: 2
• Length of Cut: 13.0 mm
• Overall Length: 63.0 mm
• Reach with Neck Relief: 22.5 mm
• Shank: Weldon flat, 10 mm
• Material & Coating: Powder Metallurgical HSS‑E with TiCN coating
• Helix & Rake: 30° helix, 12° rake angle
• Standards: DIN 327 D
• Applications: Shoulder milling, slot milling and ramping in free‑machining steels, cast iron, copper alloys, copper alloys, and titanium alloys

This compact 2‑flute design concentrates rigidity and stability in shallow slots, helping maintain accuracy in tight pockets and challenging setups. The TiCN coating reduces wear and heat buildup, extending tool life even when cutting abrasive materials. The extra‑short geometry minimizes deflection, delivering cleaner slots and steadier surfaces during shoulder milling and ramping passes. The Weldon 10 mm shank provides a secure, repeatable clamping interface with standard tool holders, supporting reliable performance across multiple setups and jobs.
