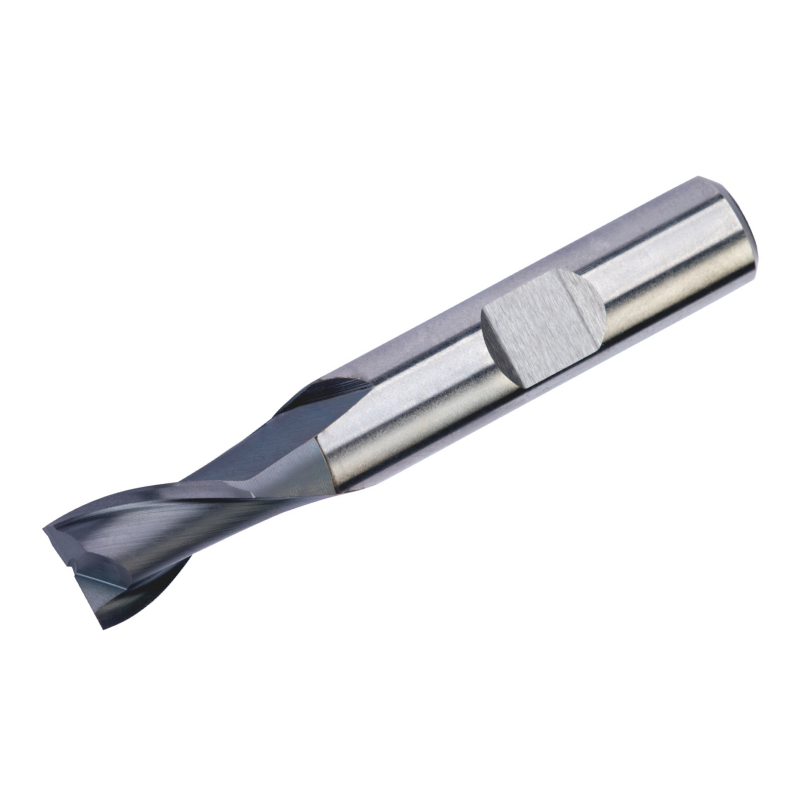

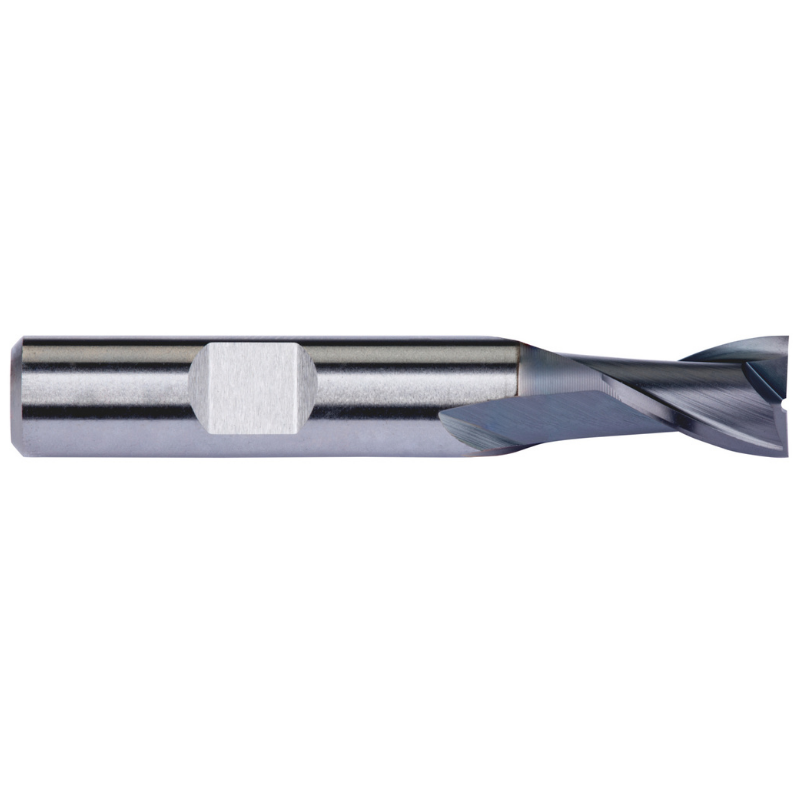

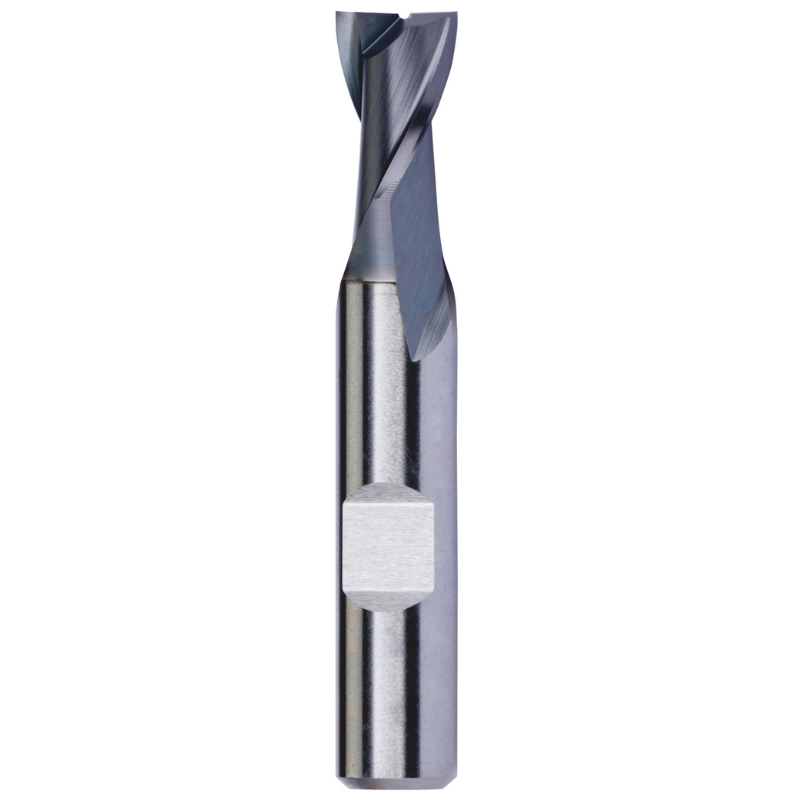

Dormer Pramet C126 16.0mm HSS-E-Powder Metal TICN Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C126 16.0mm HSS-E-Powder Metallurgy TiCN-coated slot drill is engineered for precise slot and shoulder milling in metalworking projects. With a compact profile and robust coating, it delivers reliable performance in shallow pockets and tight slots.

• Diameter: 16.0 mm
• Length of Cut: 19 mm
• Overall Length: 79 mm
• Reach with Neck Relief: 30.5 mm
• Shank: 16 mm Weldon shank
• Flutes: 2
• Material: HSS-E (high-speed steel, powder metallurgy)
• Coating: TiCN for reduced wear and longer tool life
• Helix: 30° for efficient chip control
• Rake Angle: 12° to enhance cutting efficiency in shoulder milling and ramping
• DIN Standard: 327 D
• Applications: Slot milling, shoulder milling and ramping
• Compatibility: Suitable for free-machining plain carbon and alloy steel, cast-iron, copper or copper alloys, and titanium or titanium alloys

This extra-short series drill excels where a compact tool body and stable engagement are key. The two-flute geometry provides solid chip evacuation in slot work, while the powder-metallurgy HSS-E core delivers a tough, wear-resistant cutting edge. The TiCN coating helps reduce friction and temperature buildup, improving life in demanding materials. The 16 mm Weldon shank ensures secure clamping in standard toolholders, promoting consistent runout and accuracy in repetitive cycles.
