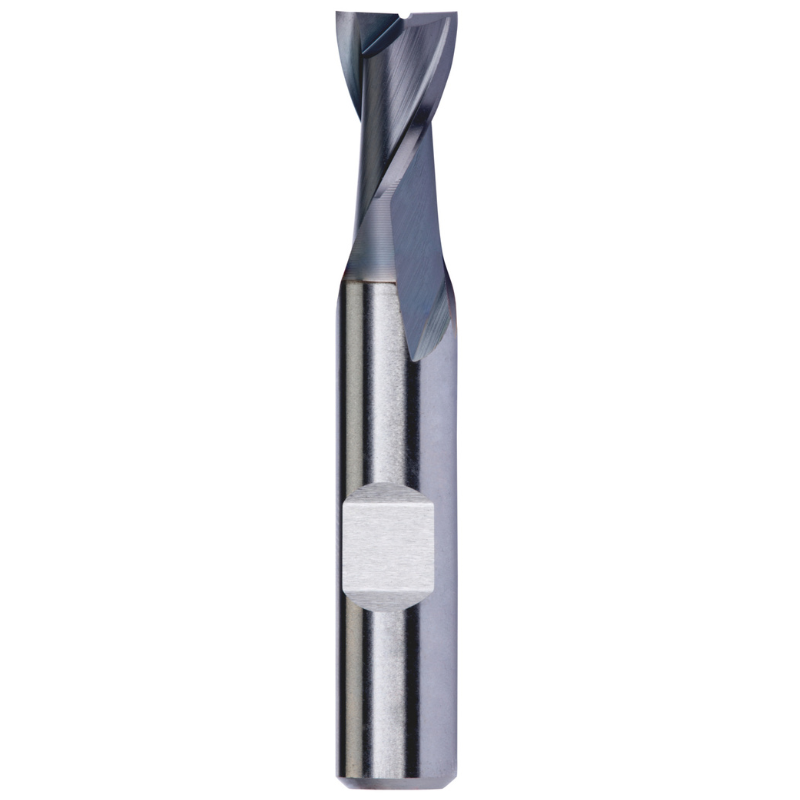

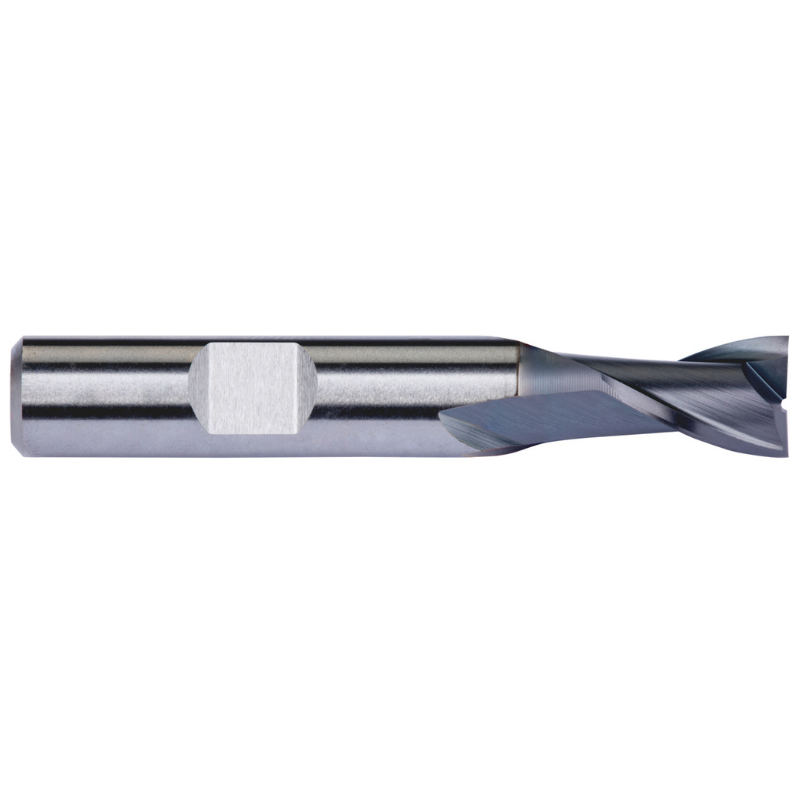

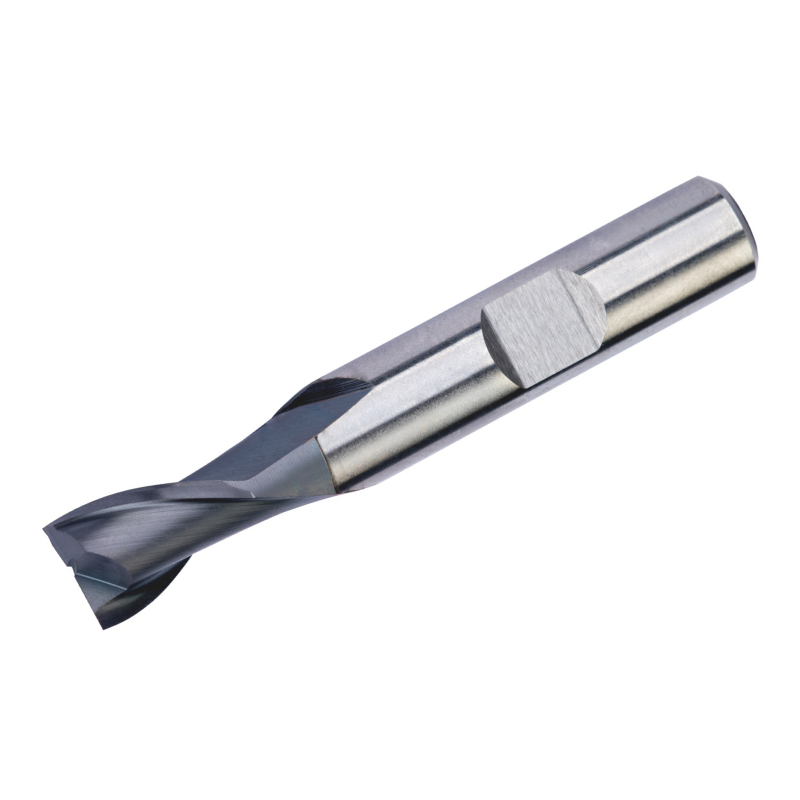

Dormer Pramet C126 11.5mm HSS-E-Powder Metal TICN Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C126 11.5 mm slot drill is a compact, two-flute tool designed for shoulder milling, slot milling, and ramping in tight spaces. Crafted with powder-metallurgical HSS-E and TiCN coating, it combines durability with precise cutting for a range of metalworking tasks.

• Diameter: 11.5 mm
• Length of cut: 13 mm
• Overall length: 70 mm
• Shank: 12 mm Weldon with flat for secure seating
• Flutes: 2
• Series: Extra-short for restricted clearance applications
• Material: Powder-metallurgical HSS-E
• Coating: TiCN for wear resistance and extended life
• Helix angle: 30°
• Rake angle: 12°
• Standard: DIN 327 D
• Applications: Shoulder milling, slot milling, ramping
• Recommended materials: Free‑machining and alloy steels, plain carbon steels, cast iron, copper and copper alloys, titanium and titanium alloys

Designed to perform in short, controlled cuts with dependable chip evacuation, this drill maintains accurate slot dimensions while reducing tool deflection in thin sections. The TiCN coating minimizes wear under cutting pressures common in free‑machining steels and other alloys, helping to extend tool life and improve surface finish. Its DIN 327 D specification ensures compatibility with standard tooling setups, while the Weldon shank provides reliable clamping in collets or chucks for consistent performance across repetitive operations.
