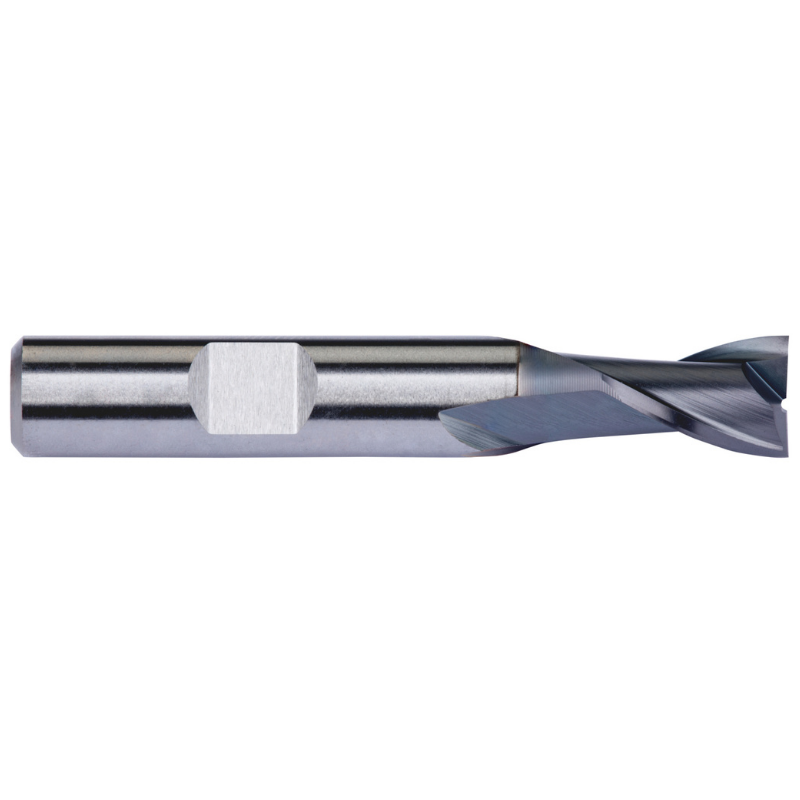

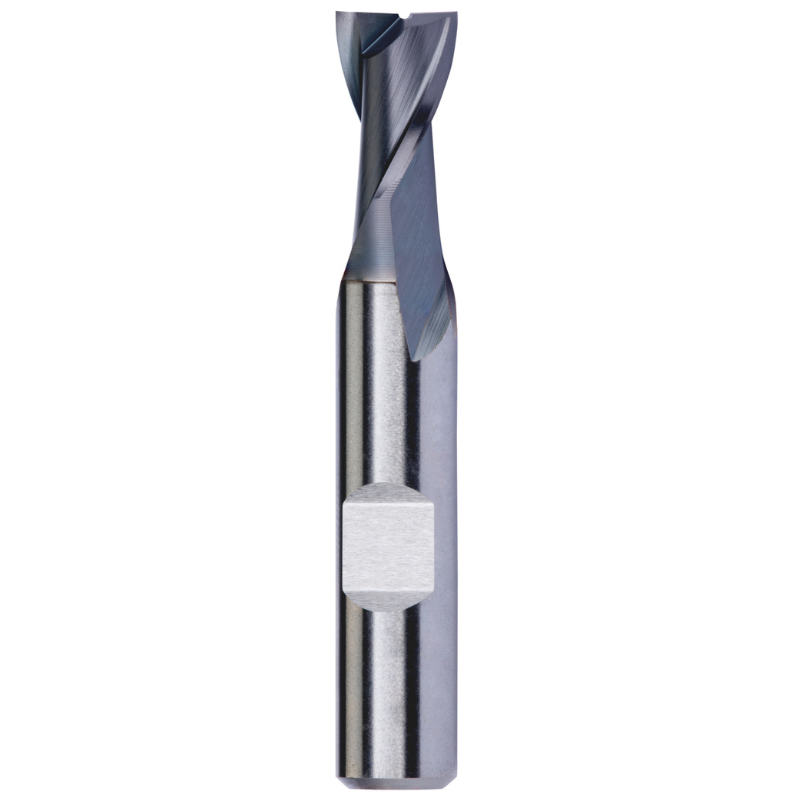

Dormer Pramet C126 24.0mm HSS-E-Powder Metal TICN Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C126 24.0mm HSS-E-Powder TiCN coated slot drill is a compact, two-flute tool designed for precise slot milling, shoulder milling, and ramping in tight workspaces. Built for reliability in free-machining steels and a range of alloys, it delivers stable performance in confined pockets and demanding setups.

• Diameter: 24.0 mm
• Length of cut: 26 mm
• Overall length: 102 mm
• Reach with neck relief: 45.5 mm
• Shank: 25 mm Weldon (DIN 327 D)
• Material: HSS‑E with powder metallurgy
• Coating: TiCN for increased wear resistance
• Flutes: 2-flute geometry for efficient chip evacuation
• Helix angle: 30° for smooth cutting action
• Rake angle: 12° to optimize shoulder and ramping cuts
• Standard: DIN 327 D
• Applications: slot milling, shoulder milling, and ramping in free machining steel, plain carbon and alloy steel, cast iron, copper and copper alloys, and titanium and titanium alloys

With a TiCN-coated HSS‑E substrate and an extra-short form, this drill delivers rigidity and wear resistance where space is limited. The 2-flute geometry supports efficient material removal while maintaining a clean edge and good surface finish. The 45.5 mm reach from neck relief enables deep features without sacrificing stiffness, and the Weldon shank provides a secure, stable hold in standard tool holders. This makes the C126 well-suited for production environments that require reliable performance across a range of common engineering materials.
