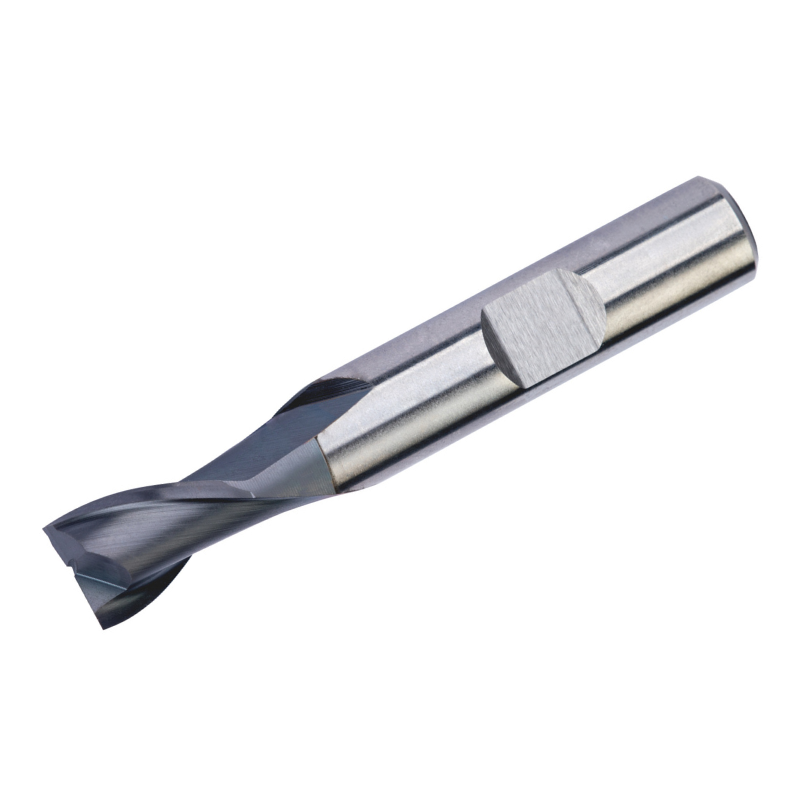

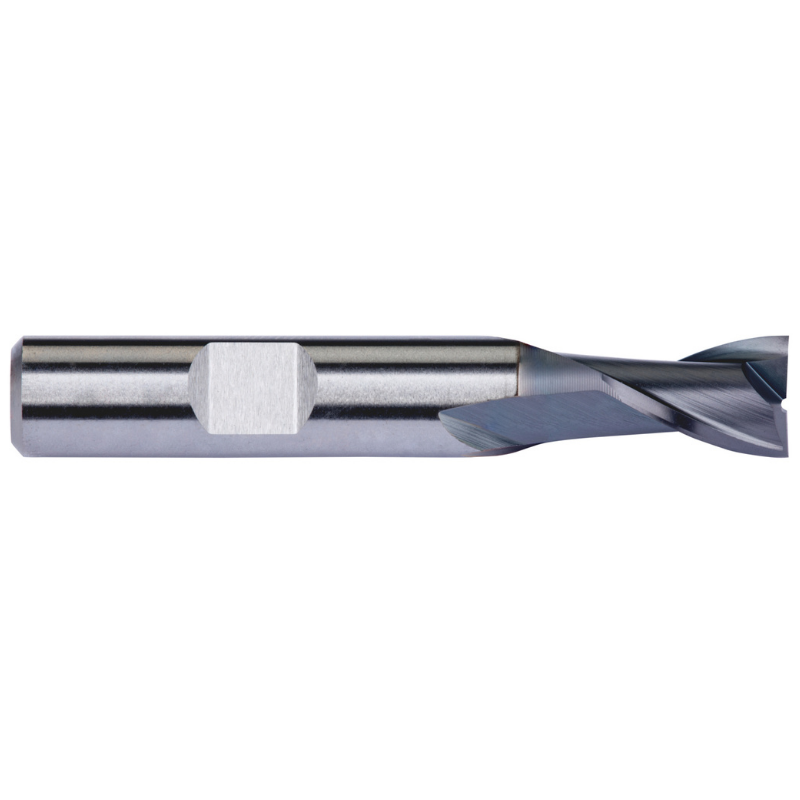

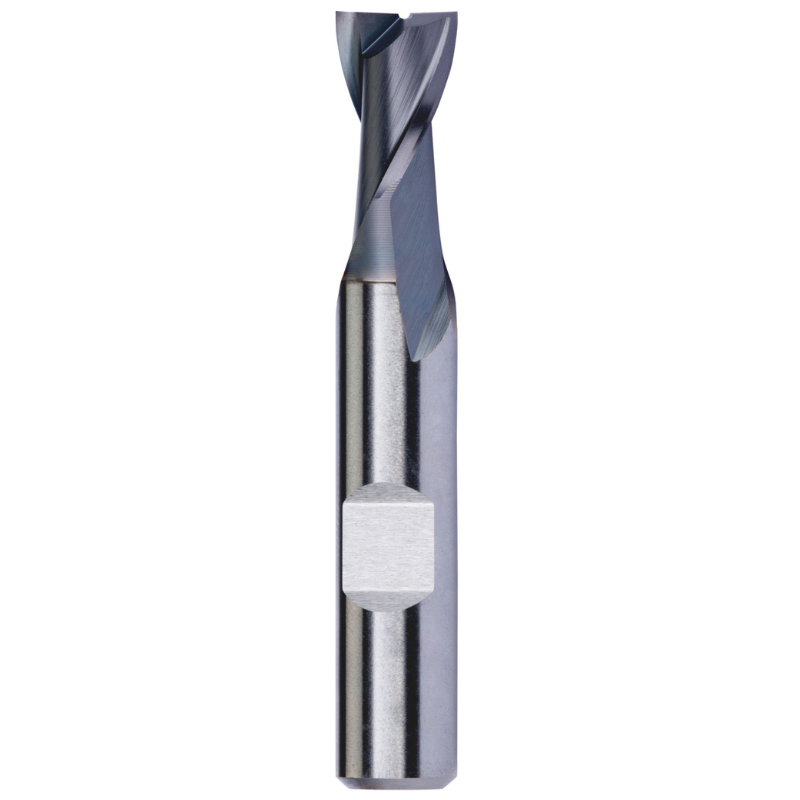

Dormer Pramet C126 20.0mm HSS-E-Powder Metal TICN Flatted Shank 2 Flute Short Series Slot Drill DIN 327 D

The Dormer Pramet C126 20.0mm HSS-E-Powder Metall TICN Flatted Shank 2 Flute Short Series Slot Drill (DIN 327 D) is an extra-short, two-flute tool designed for precise shoulder milling, slot milling, and ramping in a range of metals. Built with powder metallurgical HSS-E and a TiCN coating, it combines rigidity with efficient chip control for tight cavities and free-machining materials.

• Model and standard: C126, DIN 327 D
• Diameter: 20.0 mm
• Flutes: 2
• Length of cut: 22 mm
• Overall length: 88 mm
• Reach with neck relief: 37.5 mm
• Shank: Weldon, 20 mm
• Material and coating: Powder metallurgical HSS-E with TiCN coating
• Helix and rake: 30° helix, 12° rake angle
• Primary applications: Shoulder milling, slot milling, ramping
• Suitable workpiece materials: Free-machining steel, plain carbon and alloy steel, cast iron, copper and copper alloys, titanium and titanium alloys

Designed for use in confined slots and shoulder features, this drill delivers consistent accuracy and durable performance. The TiCN coating reduces wear and improves chip evacuation, while the short form factor and Weldon shank provide enhanced rigidity and control in demanding milling scenarios. Ideal for shop environments that require reliable, versatile tooling for a variety of common engineering materials.
