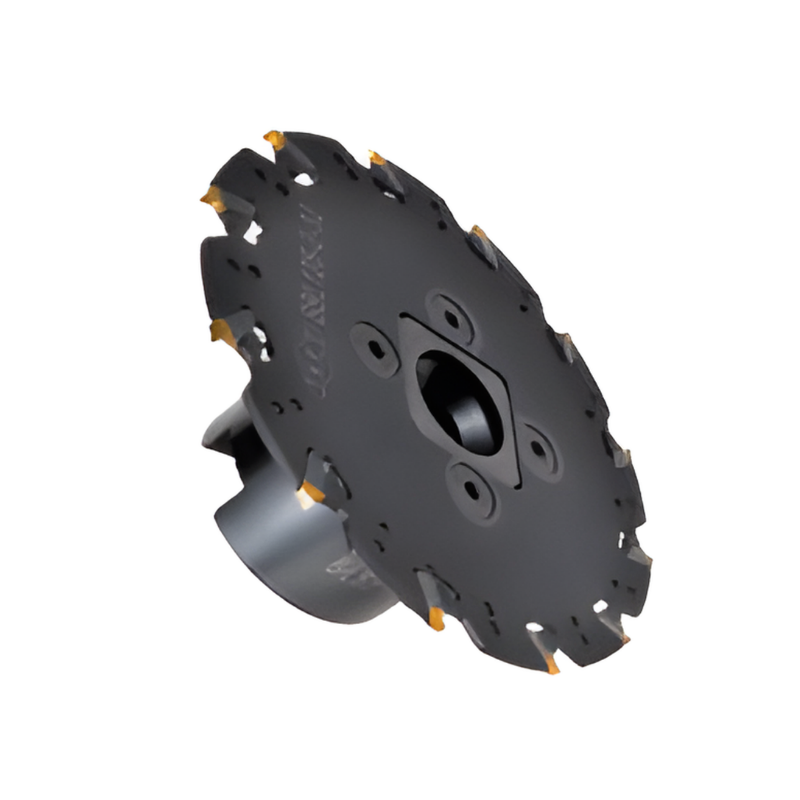

Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 100mm Diameter 1.4 to 1.5mm Insert Thickness 27mm Cutting Depth 10 Teeth (SBL100-1.4-22)

The Y.T. Indexable Saw Milling Cutter in 100 mm diameter is a high-precision tool designed for efficient, repeatable slotting with LNGT inserts. It’s built for reliability in demanding milling applications.

• Diameter: 100 mm
• Insert Thickness (SBL100-1.4-22): 1.4–1.5 mm
• Cutting Depth: 27 mm
• Teeth: 10
• Insert Clamping Design: Safe and reliable, certified by Swedish customers to function securely up to 17,200 RPM
• Chip Evacuation: Patented design prevents chip blockages within the groove during operation
• Insert System: Uses indexable carbide inserts for easy replacement; compatible with over 10 insert types
• Series Range: Cutter diameters span 50–300 mm across the entire series

This indexable slitting saw delivers efficient, consistent cuts with a robust insert-clamping system and proactive chip evacuation. Its 10-tooth configuration provides a balanced, smooth slotting action, while compatibility with multiple LNGT insert types gives you flexibility and cost-effective maintenance. Ideal for precision milling tasks that demand reliable performance at higher speeds and straightforward insert replacement.
