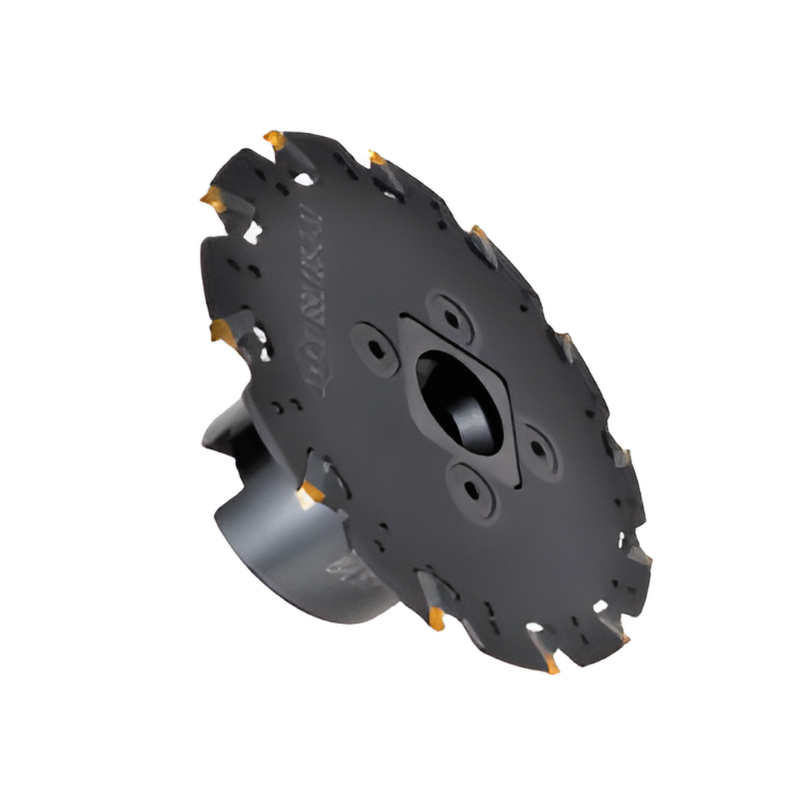

Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 100mm Diameter 4 to 4.5mm Insert Thickness 27mm Cutting Depth 10 Teeth (SBL100-4-22)

The Y.T. Indexable Slitting Saw is a precise 100 mm diameter milling cutter designed for LNGT insert applications. It combines a safe, reliable insert clamping system with high-speed performance, making it ideal for professional workshops needing quick insert changes and secure operation.

• Diameter: 100 mm
• Insert Thickness: 4–4.5 mm
• Cutting Depth: 27 mm
• Teeth: 10
• Insert Type: LNGT indexable carbide inserts; compatible with over 10 insert types
• Clamping Design: Safe and reliable insert clamp design
• Maximum RPM Rating: Certified for secure operation up to 17,200 RPM
• Chip Evacuation: Patented design prevents chip blockages in the groove
• Series Insert Thickness Range: Standard thicknesses from 1.4 mm to 5.5 mm (this model uses 4–4.5 mm)

The cutter’s carbide inserts are replaceable, delivering economical maintenance with consistent cutting performance. The patented chip evacuation groove minimizes chip buildup during deep cuts, helping maintain accuracy and prolong tool life. With a high-speed rating of up to 17,200 RPM, this saw enables efficient material removal while preserving edge integrity. Ten cutting teeth provide balanced load distribution around the perimeter for smooth, stable milling and clean slits, making it a reliable choice for precision groove and slitting work using LNGT inserts.
