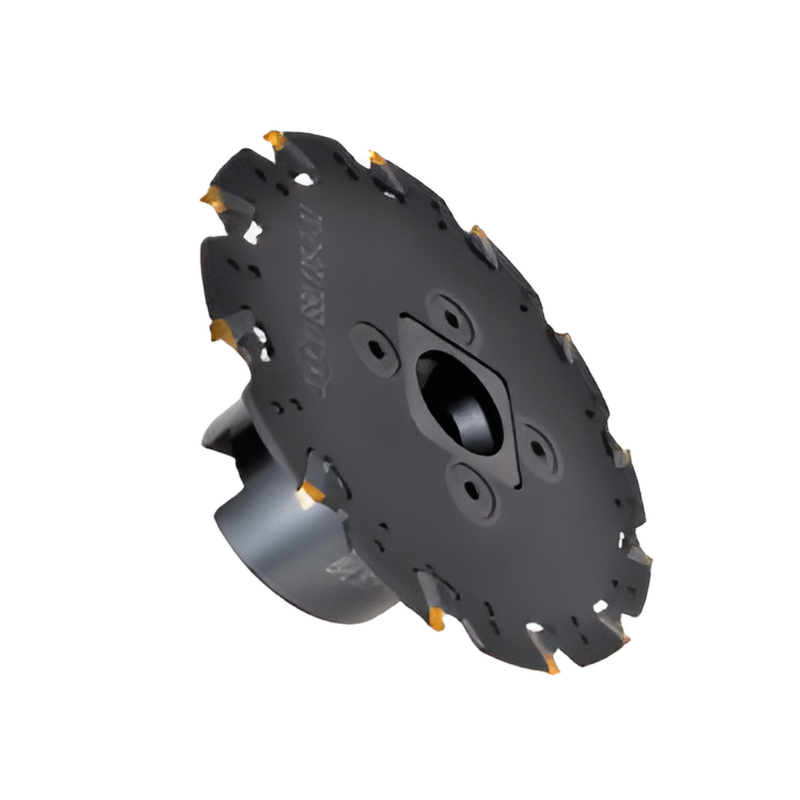

Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 100mm Diameter 2.5 to 3mm Insert Thickness 27mm Cutting Depth 10 Teeth (SBL100-2.5-22)

The Y.T. Indexable Slitting Saw is a precision cutting tool designed for CNC milling that uses LNGT indexable inserts. It delivers quick insert replacement and dependable performance at high RPM.

• Diameter: 100 mm
• Insert Thickness: 2.5–3 mm
• Cutting Depth: 27 mm
• Teeth: 10
• Insert System: LNGT indexable inserts
• Clamping Design: Safe and reliable insert clamping, certified by Swedish customers to operate securely up to 17,200 RPM
• Chip Evacuation: Patented chip-evacuation design prevents chip blockages in the groove during cutting
• Insert Compatibility: Indexable carbide inserts; compatible with over 10 insert types
• Standard Thickness Range: 1.4–5.5 mm
• Series Diameter Range: 50–300 mm across the entire series

This cutter is optimized for tight tolerance slots and precise depth control. The robust clamping system reduces insert shift and ensures repeatable results, while the broad insert compatibility supports material variety and end finishes. The combination of a 27 mm cutting depth and 10 teeth provides a stable cut that helps achieve clean, consistent slots in production environments, even at high speeds.
