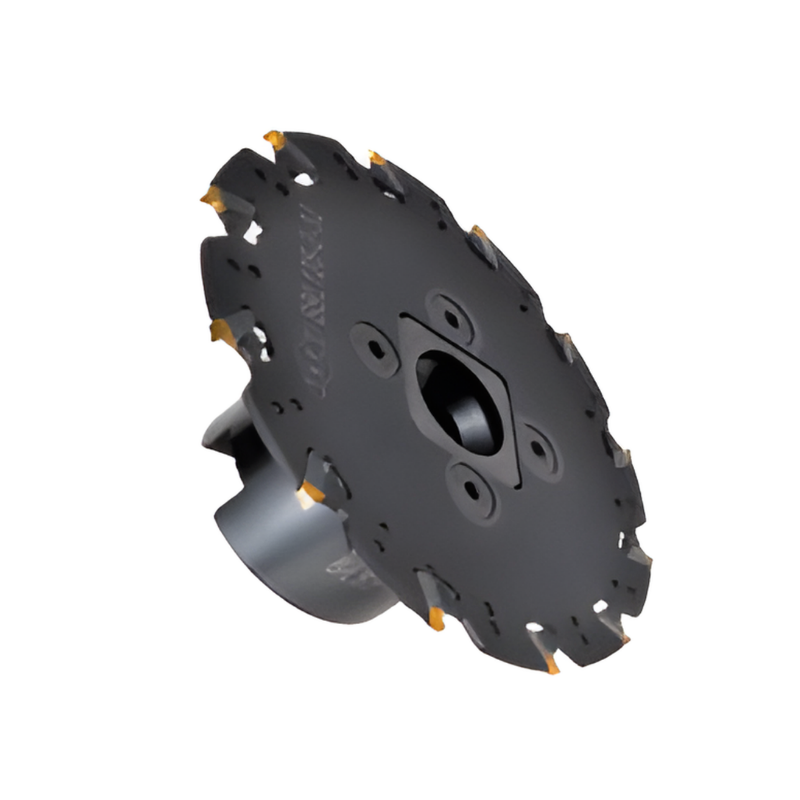

Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 100mm Diameter 1.8mm Insert Thickness 27mm Cutting Depth 10 Teeth (SBL100-1.8-22)

The Y.T. Indexable Slitting Saw is a precision milling tool designed for LNGT inserts, delivering reliable, interchangeable cutting performance. Ideal for machine shops and manufacturers, it pairs a robust insert clamping system with versatile insert compatibility for fast tool changes.

• Diameter: 100 mm
• Insert Thickness: 1.8 mm
• Cutting Depth: 27 mm
• Teeth: 10
• Insert Clamping Design: Safe and reliable insert locking while in operation
• Maximum Speed: Certified up to 17,200 RPM
• Chip Evacuation: Patented design to prevent chip blockages inside the groove
• Insert Replaceability: Uses indexable carbide inserts for easy replacement; compatible with over 10 insert types
• Series Range: Across the series, cutter diameters extend from 50 mm to 300 mm and thicknesses from 1.4 mm to 5.5 mm

With 17,200 RPM capability and a secure insert clamp, this cutter enables precise, repeatable slitting at high productivity. The replaceable carbide inserts reduce downtime—swap worn segments while keeping the same body. The patented chip evacuation design minimizes groove buildup, preserving cutting efficiency and extending tool life. Its broad insert compatibility (more than 10 insert types) provides flexibility across materials and machining tasks without needing multiple tools.
