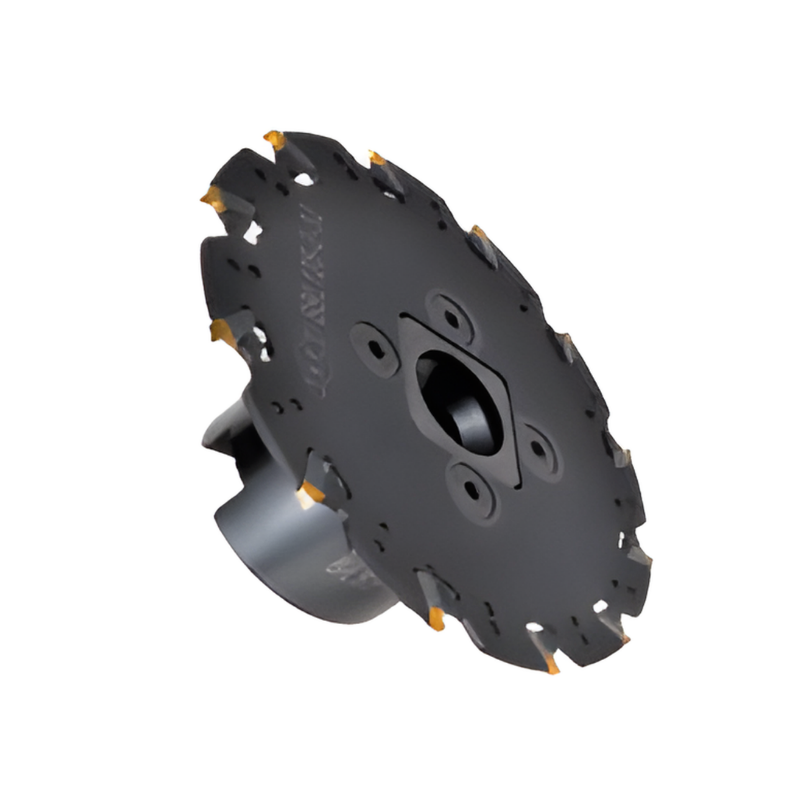

Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 125mm Diameter 4 to 4.5mm Insert Thickness 33mm Cutting Depth 12 Teeth (SBL125-4-32)

The Y.T. Indexable Saw Milling Cutter (SBL125-4-32) is a precision solution designed for LNGT inserts, delivering reliable milling and slotting performance with easy insert replacement.

• Diameter: 125 mm
• Insert Thickness: 4–4.5 mm
• Cutting Depth: 33 mm
• Teeth: 12
• Insert Clamping Design: Safe and reliable insert clamping that holds inserts securely, certified by Swedish customers to operate up to 17,200 RPM
• Chip Evacuation: Patented chip evacuation design prevents chip blockages within the groove during operation
• Insert Compatibility: Uses indexable carbide inserts and is compatible with over 10 different insert types
• Series Thickness Range: Standard thicknesses from 1.4 mm to 5.5 mm
• Series Diameter Range: Cutter diameters from 50 mm to 300 mm across the full series

Benefits: This cutter provides high-speed, dependable performance for LNGT insert applications, with a secure clamp that minimizes runout and a dedicated chip-ejection design that keeps grooves clear for uninterrupted cuts. The interchangeable carbide inserts enable quick geometry and grade changes without replacing the entire tool, reducing downtime and tooling costs. The 125 mm diameter, 33 mm cutting depth, and 12-tooth configuration strike a balance between aggressive material removal and a smooth finish, making it suitable for mid-depth milling tasks while supporting a broad range of LNGT insert types.
