Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 100mm Diameter 2 to 2.5mm Insert Thickness 27mm Cutting Depth 10 Teeth (SBL100-2-22)

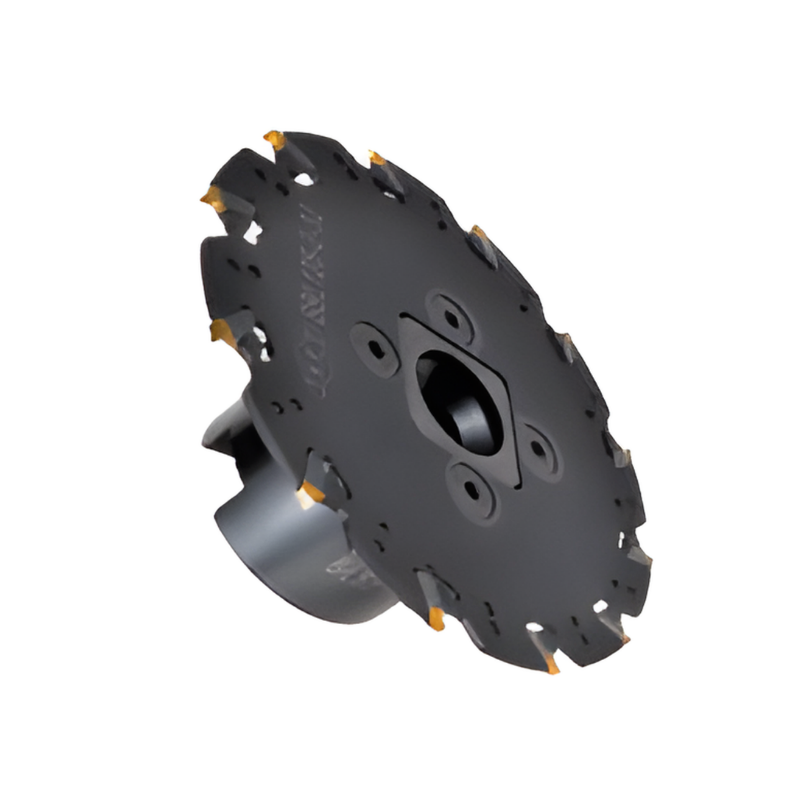

The Y.T. Indexable Saw Milling Cutter for LNGT Inserts (SBL100-2-22) is a 100 mm diameter indexable slitting tool designed for high-speed milling with LNGT insert systems. It combines secure insert clamping, easy replacement, and a patented chip evacuation design for reliable, continuous machining.

• Diameter: 100 mm
• Insert thickness compatibility: 2–2.5 mm insert thickness
• Cutting depth: 27 mm
• Teeth: 10
• Insert system: Indexable carbide inserts for easy replacement; compatible with over 10 insert types
• Clamping design: Safe and reliable insert clamping, certified by Swedish customers to function securely at up to 17,200 RPM
• Chip evacuation: Patented design prevents chips from blocking the groove during operation
• Series scope: Part of a broader LNGT-compatible line with standard thicknesses from 1.4–5.5 mm and diameters from 50–300 mm

The tool delivers dependable performance in demanding milling and slitting tasks. Its quick-change capability comes from indexable carbide inserts, while the robust clamping design minimizes insert movement under load. With a high-speed rating of up to 17,200 RPM and a dedicated chip evacuation path, it supports smooth finishes and reduced maintenance downtime. The cutter’s compatibility with multiple insert types provides flexibility to tailor inserts to your material and process, helping you consolidate tooling while maintaining precision and efficiency.
