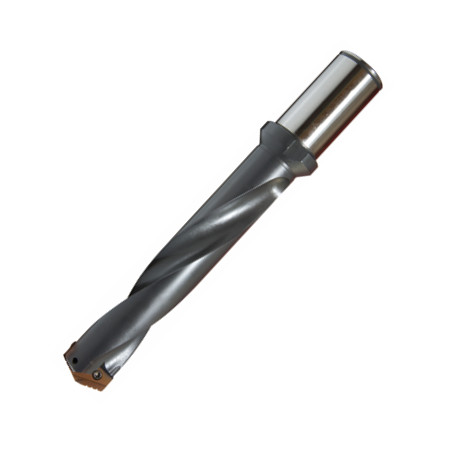

Vortex Spade Drill Holder - Spiral Flute - Extended Length - 18mm - 24mm Drill Dia - 269.9mm Max Drill Depth
| Drill Diameter | 18.0 - 24.0 |
| Length | Extended |
| Flute Type | Spiral |
| Shank Diameter | 25 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Spade Drill Holder with a spiral flute and extended reach is designed for deep-hole drilling with 18–24 mm spade drills, delivering reliable chip evacuation and through-coolant performance in demanding metalworking tasks.
- Through-Coolant: Delivers coolant directly through the holder to the cutting edge, improving cooling, chip evacuation, and overall machining efficiency.
- Spiral Flute Geometry: Optimized spiral flute enhances chip flow and cutter rigidity for smoother cutting in long-hole applications.
- Extended Length: Maximum drill depth of 269.9 mm, enabling deep-hole reach without repositioning the tool.
- Drill Diameter Compatibility: Specifically optimized for 18 mm to 24 mm spade drill diameters for precise, stable performance.
- Insert Compatibility: Accepts a wide range of spade drill inserts, available in both Metric and Imperial sizes, to tailor tools to any material.
- Size Range Coverage: Part of a broader family that spans diameters from 9.5 mm to 65.09 mm, ensuring you have the right holder as project needs evolve.
This spade drill holder is built to enhance practical drilling workflows: through-coolant improves heat management and surface finish, the long reach reduces setup changes on lengthy workpieces, and the broad insert compatibility lets you select the exact insert for your material and hole depth. Ideal for machine shops, aerospace, automotive, and heavy-industry fabrication where deep, accurate holes are routine.
Part Numbers
- Protool Part Number
- PT1824269
- Brand
- Vortex
- Category
- Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Spade Drill Holders - Straight & Spiral Flute Types
View full collection →You are viewing PT1824269. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Length | Flute Type | Shank Diameter | Max Drill Depth | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PT091119 | 9.5 - 11.0 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 | In Stock | |
| PT091131 | 9.5 - 11.0 | Short | Straight | 20 | 31.8 | 103 | £110.40 | In Stock | |
| PT091160 | 9.5 - 11.0 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 | In Stock | |
| PT0911111 | 9.5 - 11.0 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 | In Stock | |
| PT0911222 | 9.5 - 11.0 | Extra Long | Straight | 20 | 222 | 293.6 | £193.71 | In Stock | |
| PT0911290 | 9.5 - 11.0 | Over Length | Straight | 20 | 290 | 361.8 | £242.31 | In Stock | |
| PT111219 | 11.11 - 12.7 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 | In Stock | |
| PT111231 | 11.11 - 12.7 | Short | Straight | 20 | 31.8 | 103 | £110.40 | In Stock | |
| PT111260 | 11.11 - 12.7 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 | In Stock | |
| PT1112111 | 11.11 - 12.7 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 | 4-6 weeks | |
| PT1112222 | 11.11 - 12.7 | Extra Long | Straight | 20 | 221 | 293.6 | £193.71 | In Stock | |
| PT1112290 | 11.11 - 12.7 | Over Length | Straight | 20 | 290.5 | 361.8 | £242.07 | In Stock | |
| PT131722 | 13.0 - 17.5 | Stub | Straight | 20 | 22.2 | 89.5 | £111.90 | In Stock | |
| PT131734 | 13.0 - 17.5 | Short | Straight | 20 | 34.9 | 105.4 | £120.81 | In Stock | |
| PT131763 | 13.0 - 17.5 | Standard | Spiral | 20 | 63.5 | 134 | £128.10 | 4-6 weeks | |
| PT1317114 | 13.0 - 17.5 | Extended | Spiral | 20 | 114.3 | 184.8 | £154.02 | 4-6 weeks | |
| PT1317295 | 13.0 - 17.5 | Extra Long | Straight | 20 | 295 | 365.8 | £242.07 | 4-6 weeks | |
| PT1317387 | 13.0 - 17.5 | Over Length | Straight | 20 | 387 | 457.9 | £302.37 | In Stock | |
| PT182447 | 18.0 - 24.0 | Stub | Straight | 25 | 47.6 | 128.9 | £122.73 | 4-6 weeks | |
| PT182466 | 18.0 - 24.0 | Short | Straight | 25 | 66.7 | 160.2 | £135.03 | 4-6 weeks | |
| PT1824117 | 18.0 - 24.0 | Intermediate | Spiral | 25 | 117.5 | 207.9 | £153.90 | In Stock | |
| PT1824168 | 18.0 - 24.0 | Standard | Spiral | 25 | 168.3 | 258.7 | £176.31 | 4-6 weeks | |
| PT1824269 Viewing | 18.0 - 24.0 | Extended | Spiral | 25 | 269.9 | 360.3 | £221.31 | In Stock | |
| PT1824457 | 18.0 - 24.0 | Extra Long | Straight | 25 | 457 | 547.6 | £332.91 | In Stock | |
| PT1824569 | 18.0 - 24.0 | Over Length | Straight | 25 | 569 | 655.6 | £430.83 | 4-6 weeks | |
| PT253557 | 24.61 - 35.0 | Stub | Straight | 32 | 57.2 | 146.4 | £156.12 | In Stock | |
| PT253585 | 24.61 - 35.0 | Short | Straight | 32 | 85.7 | 186.5 | £163.95 | 4-6 weeks | |
| PT2535136 | 24.61 - 35.0 | Intermediate | Spiral | 32 | 136.5 | 237.3 | £200.49 | 4-6 weeks | |
| PT2535187 | 24.61 - 35.0 | Standard | Spiral | 32 | 187.3 | 288.1 | £226.23 | In Stock | |
| PT2535288 | 24.61 - 35.0 | Extended | Spiral | 32 | 288.9 | 389.7 | £271.08 | In Stock | |
| PT2535511 | 24.61 - 35.0 | Extra Long | Straight | 32 | 511 | 612 | £401.25 | In Stock | |
| PT2535692 | 24.61 - 35.0 | Over Length | Straight | 32 | 692 | 793 | £543.57 | In Stock | |
| PT364776 | 35.72 - 47.63 | Stub | Straight | 40 | 76.2 | 195.1 | £171.75 | In Stock | |
| PT3647120 | 35.72 - 47.63 | Short | Straight | 40 | 120.7 | 243.1 | £221.01 | In Stock | |
| PT3647165 | 35.72 - 47.63 | Intermediate | Spiral | 40 | 165.1 | 287.6 | £284.31 | In Stock | |
| PT3647209 | 35.72 - 47.63 | Standard | Spiral | 40 | 209.6 | 332 | £306.63 | In Stock | |
| PT3647349 | 35.72 - 47.63 | Extended | Straight | 40 | 349.3 | 471.7 | £370.02 | In Stock | |
| PT3647558 | 35.72 - 47.63 | Extra Long | Straight | 40 | 558.8 | 681.2 | £586.95 | In Stock | |
| PT3647787 | 35.72 - 47.63 | Over Length | Straight | 40 | 787.4 | 909.8 | £786.51 | In Stock | |
| PT4865130 | 48.0 - 65.09 | Short | Straight | 40 | 130.2 | 249.5 | £235.38 | In Stock | |
| PT4865231 | 48.0 - 65.09 | Standard | Spiral | 40 | 231.8 | 351.1 | £329.16 | 4-6 weeks | |
| PT4865422 | 48.0 - 65.09 | Extended | Straight | 40 | 422.3 | 541.6 | £473.55 | In Stock | |
| PT4865625 | 48.0 - 65.09 | Extra Long | Straight | 40 | 625 | 744.8 | £718.89 | In Stock | |
| PT4865879 | 48.0 - 65.09 | Over Length | Straight | 40 | 879 | 998.8 | £962.61 | In Stock |
