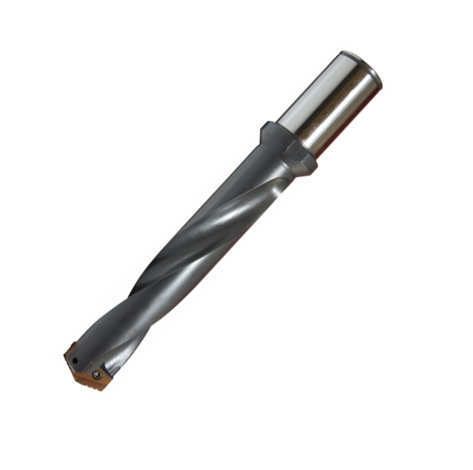

Vortex Spade Drill Holder - Spiral Flute - Intermediate Length - 35.72mm - 47.63mm Drill Dia - 165.1mm Max Drill Depth

Vortex Spade Drill Holder with a spiral flute is engineered for machinists who need reliable through-coolant performance and precise depth control when drilling with spade inserts. The intermediate-length design provides solid rigidity and versatile reach for a wide range of applications.

• Through-Coolant Design: Delivers coolant through the holder to the cutting edge, enhancing chip evacuation and overall machining efficiency.
• Flute Options: Available with spiral or straight flute configurations to suit different cutting styles and swarf management.
• Intermediate Length Configuration: Optimizes reach while maintaining rigidity for deep-pocket and cavity drilling.
• Drill Diameter Range: Accepts spade drill inserts with diameters from 35.72 mm to 47.63 mm for precise hole sizing.
• Max Drill Depth: Capable of drilling up to 165.1 mm in a single setup, reducing tool changes and downtime.
• Inserts Availability: Inserts are available in both metric and imperial sizes, with a wide range of insert diameters to fit each holder.
• Holder Diameter Range: Part of a family that covers diameters from 9.5 mm to 65.09 mm, offering broad compatibility across projects.
• Insert Library Access: The product page provides links to a complete range of spade drill inserts, helping you select the perfect match for your project.

Through-coolant performance, precise depth control, and flexible insert compatibility combine to deliver cleaner holes, consistent hole quality, and reduced downtime. The spiral flute design enhances swarf control in challenging materials, while the intermediate-length form keeps your setup balanced between reach and rigidity. With metric and imperial insert options and a wide diameter range, this holder adapts to a broad spectrum of drilling tasks—from routine pocketing to deeper, high-precision holes. Pair it with the appropriate spade drill insert from our extensive library to optimize cutting efficiency, surface finish, and cycle times.
