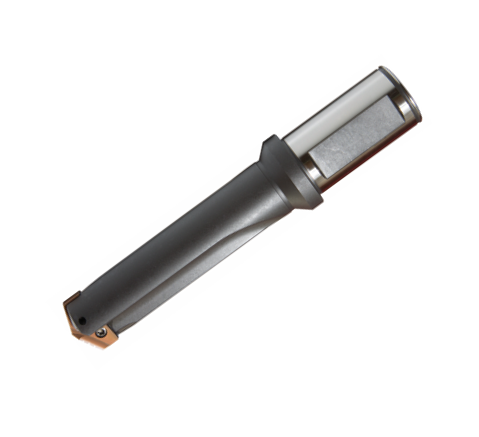

Vortex Spade Drill Holder - Straight Flute - Short Length - 13mm - 17.5mm Drill Dia - 34.9mm Max Drill Depth
| Drill Diameter | 13.0 - 17.5 |
| Length | Short |
| Flute Type | Straight |
| Shank Diameter | 20 |
| Max Drill Depth | 34.9 |
| Overall Length | 105.4 |
Learn more about Klarna
Vortex Spade Drill Holder with straight flute and short length is a precision tooling solution designed for machinists who demand reliable through-coolant performance when using spade inserts. Built for tight workspaces, it delivers stable cuts, efficient chip evacuation, and consistent hole quality.
- Through-Coolant: Integrated coolant passage enhances chip evacuation and keeps the cutting edge cooler for improved tool life and surface finish.
- Flute Type: Straight flute design optimized for predictable cutting forces and straightforward chip control (this model in straight-flute configuration).
- Short Length: Compact form factor reduces overhang and fits into confined pockets without compromising rigidity.
- Shank Size: 13 mm shank diameter for compatibility with standard tool holders and setups.
- Drill Capacity: Accepts spade drill inserts up to 17.5 mm in diameter, giving you a broad range of drilling options.
- Max Drill Depth: Capable of drilling up to 34.9 mm in a single pass, enabling deeper holes with a single setup.
- Insert Compatibility: Inserts are available in both Metric and Imperial sizes, with a wide range of diameters to fit this holder.
- System Versatility: Part of the complete Vortex spade drill system, with options for straight or spiral flute inserts to suit different materials and applications.
This spade drill holder is ideal for producers and job shops that need efficient through-coolant drilling in metalworking, including pockets, blind holes, and precision holes where chip evacuation and heat management are critical. The 13 mm shank and 17.5 mm maximum drill diameter provide a robust combination for a variety of steels, aluminum, and other common metals, while the 34.9 mm max depth supports deeper drilling without frequent tool changes. With metric and imperial insert availability, you can tailor the tooling to the exact material and hole size, simplifying setups and reducing downtime.
| Drill Diameter | 13.0 - 17.5 |
| Length | Short |
| Flute Type | Straight |
| Shank Diameter | 20 |
| Max Drill Depth | 34.9 |
| Overall Length | 105.4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Spade Drill Holders - Straight & Spiral Flute Types
View full collection →You are viewing PT131734. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Length | Flute Type | Shank Diameter | Max Drill Depth | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PT091119 | 9.5 - 11.0 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 | In Stock | |
| PT091131 | 9.5 - 11.0 | Short | Straight | 20 | 31.8 | 103 | £110.40 | In Stock | |
| PT091160 | 9.5 - 11.0 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 | In Stock | |
| PT0911111 | 9.5 - 11.0 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 | In Stock | |
| PT0911222 | 9.5 - 11.0 | Extra Long | Straight | 20 | 222 | 293.6 | £193.71 | In Stock | |
| PT0911290 | 9.5 - 11.0 | Over Length | Straight | 20 | 290 | 361.8 | £242.31 | In Stock | |
| PT111219 | 11.11 - 12.7 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 | In Stock | |
| PT111231 | 11.11 - 12.7 | Short | Straight | 20 | 31.8 | 103 | £110.40 | In Stock | |
| PT111260 | 11.11 - 12.7 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 | In Stock | |
| PT1112111 | 11.11 - 12.7 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 | 4-6 weeks | |
| PT1112222 | 11.11 - 12.7 | Extra Long | Straight | 20 | 221 | 293.6 | £193.71 | In Stock | |
| PT1112290 | 11.11 - 12.7 | Over Length | Straight | 20 | 290.5 | 361.8 | £242.07 | In Stock | |
| PT131722 | 13.0 - 17.5 | Stub | Straight | 20 | 22.2 | 89.5 | £111.90 | In Stock | |
| PT131734 Viewing | 13.0 - 17.5 | Short | Straight | 20 | 34.9 | 105.4 | £120.81 | In Stock | |
| PT131763 | 13.0 - 17.5 | Standard | Spiral | 20 | 63.5 | 134 | £128.10 | In Stock | |
| PT1317114 | 13.0 - 17.5 | Extended | Spiral | 20 | 114.3 | 184.8 | £154.02 | 4-6 weeks | |
| PT1317295 | 13.0 - 17.5 | Extra Long | Straight | 20 | 295 | 365.8 | £242.07 | 4-6 weeks | |
| PT1317387 | 13.0 - 17.5 | Over Length | Straight | 20 | 387 | 457.9 | £302.37 | In Stock | |
| PT182447 | 18.0 - 24.0 | Stub | Straight | 25 | 47.6 | 128.9 | £122.73 | 4-6 weeks | |
| PT182466 | 18.0 - 24.0 | Short | Straight | 25 | 66.7 | 160.2 | £135.03 | 4-6 weeks | |
| PT1824117 | 18.0 - 24.0 | Intermediate | Spiral | 25 | 117.5 | 207.9 | £153.90 | In Stock | |
| PT1824168 | 18.0 - 24.0 | Standard | Spiral | 25 | 168.3 | 258.7 | £176.31 | 4-6 weeks | |
| PT1824269 | 18.0 - 24.0 | Extended | Spiral | 25 | 269.9 | 360.3 | £221.31 | In Stock | |
| PT1824457 | 18.0 - 24.0 | Extra Long | Straight | 25 | 457 | 547.6 | £332.91 | In Stock | |
| PT1824569 | 18.0 - 24.0 | Over Length | Straight | 25 | 569 | 655.6 | £430.83 | 4-6 weeks | |
| PT253557 | 24.61 - 35.0 | Stub | Straight | 32 | 57.2 | 146.4 | £156.12 | In Stock | |
| PT253585 | 24.61 - 35.0 | Short | Straight | 32 | 85.7 | 186.5 | £163.95 | 4-6 weeks | |
| PT2535136 | 24.61 - 35.0 | Intermediate | Spiral | 32 | 136.5 | 237.3 | £200.49 | 4-6 weeks | |
| PT2535187 | 24.61 - 35.0 | Standard | Spiral | 32 | 187.3 | 288.1 | £226.23 | In Stock | |
| PT2535288 | 24.61 - 35.0 | Extended | Spiral | 32 | 288.9 | 389.7 | £271.08 | In Stock | |
| PT2535511 | 24.61 - 35.0 | Extra Long | Straight | 32 | 511 | 612 | £401.25 | In Stock | |
| PT2535692 | 24.61 - 35.0 | Over Length | Straight | 32 | 692 | 793 | £543.57 | In Stock | |
| PT364776 | 35.72 - 47.63 | Stub | Straight | 40 | 76.2 | 195.1 | £171.75 | In Stock | |
| PT3647120 | 35.72 - 47.63 | Short | Straight | 40 | 120.7 | 243.1 | £221.01 | In Stock | |
| PT3647165 | 35.72 - 47.63 | Intermediate | Spiral | 40 | 165.1 | 287.6 | £284.31 | In Stock | |
| PT3647209 | 35.72 - 47.63 | Standard | Spiral | 40 | 209.6 | 332 | £306.63 | In Stock | |
| PT3647349 | 35.72 - 47.63 | Extended | Straight | 40 | 349.3 | 471.7 | £370.02 | In Stock | |
| PT3647558 | 35.72 - 47.63 | Extra Long | Straight | 40 | 558.8 | 681.2 | £586.95 | In Stock | |
| PT3647787 | 35.72 - 47.63 | Over Length | Straight | 40 | 787.4 | 909.8 | £786.51 | In Stock | |
| PT4865130 | 48.0 - 65.09 | Short | Straight | 40 | 130.2 | 249.5 | £235.38 | In Stock | |
| PT4865231 | 48.0 - 65.09 | Standard | Spiral | 40 | 231.8 | 351.1 | £329.16 | 4-6 weeks | |
| PT4865422 | 48.0 - 65.09 | Extended | Straight | 40 | 422.3 | 541.6 | £473.55 | In Stock | |
| PT4865625 | 48.0 - 65.09 | Extra Long | Straight | 40 | 625 | 744.8 | £718.89 | In Stock | |
| PT4865879 | 48.0 - 65.09 | Over Length | Straight | 40 | 879 | 998.8 | £962.61 | In Stock |
