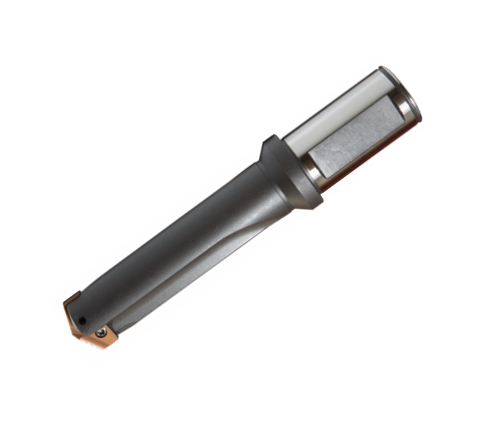

Vortex Spade Drill Holders - Straight & Spiral Flute Types
£102.21
Vortex Spade Drill Holders. All spade drill holders have through-coolant offering better chip evacuation and overall machining performance. Available with both a straight or spiral flute. Our range offers diameters between 9.5mm - 65.09mm Inserts available in Metric and Imperial Wide range of insert diameter to fit each holder The Complete your project on this page links to our wide range of inserts allowing you to pick the perfect spade drill insert for your project
| Product SKU | Drill Diameter | Length | Flute Type | Shank Diameter | Max Drill Depth | Overall Length | Price | Stock | |
|---|---|---|---|---|---|---|---|---|---|

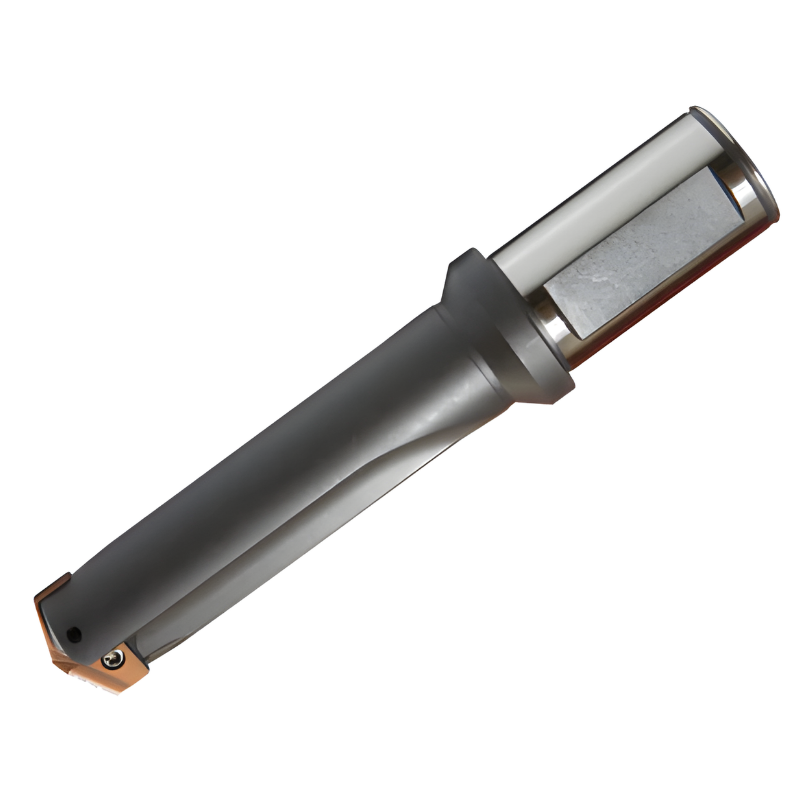

| PT091119 | 9.5 - 11.0 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 |
In Stock | View product |
| PT091131 | 9.5 - 11.0 | Short | Straight | 20 | 31.8 | 103 | £110.40 |
In Stock | View product |
| PT091160 | 9.5 - 11.0 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 |
In Stock | View product |
| PT0911111 | 9.5 - 11.0 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 |
In Stock | View product |
| PT0911222 | 9.5 - 11.0 | Extra Long | Straight | 20 | 222 | 293.6 | £193.71 |
In Stock | View product |
| PT0911290 | 9.5 - 11.0 | Over Length | Straight | 20 | 290 | 361.8 | £242.31 |
In Stock | View product |
| PT111219 | 11.11 - 12.7 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 |
In Stock | View product |
| PT111231 | 11.11 - 12.7 | Short | Straight | 20 | 31.8 | 103 | £110.40 |
In Stock | View product |
| PT111260 | 11.11 - 12.7 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 |
In Stock | View product |
| PT1112111 | 11.11 - 12.7 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 |
In Stock | View product |
| PT1112222 | 11.11 - 12.7 | Extra Long | Straight | 20 | 221 | 293.6 | £193.71 |
In Stock | View product |
| PT1112290 | 11.11 - 12.7 | Over Length | Straight | 20 | 290.5 | 361.8 | £242.07 |
In Stock | View product |
| PT131722 | 13.0 - 17.5 | Stub | Straight | 20 | 22.2 | 89.5 | £111.90 |
In Stock | View product |
| PT131734 | 13.0 - 17.5 | Short | Straight | 20 | 34.9 | 105.4 | £120.81 |
In Stock | View product |
| PT131763 | 13.0 - 17.5 | Standard | Spiral | 20 | 63.5 | 134 | £128.10 |
In Stock | View product |
| PT1317114 | 13.0 - 17.5 | Extended | Spiral | 20 | 114.3 | 184.8 | £154.02 |
In Stock | View product |
| PT1317295 | 13.0 - 17.5 | Extra Long | Straight | 20 | 295 | 365.8 | £242.07 |
7 days | View product |
| PT1317387 | 13.0 - 17.5 | Over Length | Straight | 20 | 387 | 457.9 | £302.37 |
In Stock | View product |
| PT182447 | 18.0 - 24.0 | Stub | Straight | 25 | 47.6 | 128.9 | £122.73 |
7 days | View product |
| PT182466 | 18.0 - 24.0 | Short | Straight | 25 | 66.7 | 160.2 | £135.03 |
7 days | View product |
| PT1824117 | 18.0 - 24.0 | Intermediate | Spiral | 25 | 117.5 | 207.9 | £153.90 |
In Stock | View product |
| PT1824168 | 18.0 - 24.0 | Standard | Spiral | 25 | 168.3 | 258.7 | £176.31 |
In Stock | View product |
| PT1824269 | 18.0 - 24.0 | Extended | Spiral | 25 | 269.9 | 360.3 | £221.31 |
In Stock | View product |
| PT1824457 | 18.0 - 24.0 | Extra Long | Straight | 25 | 457 | 547.6 | £332.91 |
In Stock | View product |
| PT1824569 | 18.0 - 24.0 | Over Length | Straight | 25 | 569 | 655.6 | £430.83 |
7 days | View product |
| PT253557 | 24.61 - 35.0 | Stub | Straight | 32 | 57.2 | 146.4 | £156.12 |
In Stock | View product |
| PT253585 | 24.61 - 35.0 | Short | Straight | 32 | 85.7 | 186.5 | £163.95 |
7 days | View product |
| PT2535136 | 24.61 - 35.0 | Intermediate | Spiral | 32 | 136.5 | 237.3 | £200.49 |
In Stock | View product |
| PT2535187 | 24.61 - 35.0 | Standard | Spiral | 32 | 187.3 | 288.1 | £226.23 |
In Stock | View product |
| PT2535288 | 24.61 - 35.0 | Extended | Spiral | 32 | 288.9 | 389.7 | £271.08 |
In Stock | View product |
| PT2535511 | 24.61 - 35.0 | Extra Long | Straight | 32 | 511 | 612 | £401.25 |
In Stock | View product |
| PT2535692 | 24.61 - 35.0 | Over Length | Straight | 32 | 692 | 793 | £543.57 |
In Stock | View product |
| PT364776 | 35.72 - 47.63 | Stub | Straight | 40 | 76.2 | 195.1 | £171.75 |
In Stock | View product |
| PT3647120 | 35.72 - 47.63 | Short | Straight | 40 | 120.7 | 243.1 | £221.01 |
In Stock | View product |
| PT3647165 | 35.72 - 47.63 | Intermediate | Spiral | 40 | 165.1 | 287.6 | £284.31 |
In Stock | View product |
| PT3647209 | 35.72 - 47.63 | Standard | Spiral | 40 | 209.6 | 332 | £306.63 |
In Stock | View product |
| PT3647349 | 35.72 - 47.63 | Extended | Straight | 40 | 349.3 | 471.7 | £370.02 |
In Stock | View product |
| PT3647558 | 35.72 - 47.63 | Extra Long | Straight | 40 | 558.8 | 681.2 | £586.95 |
In Stock | View product |
| PT3647787 | 35.72 - 47.63 | Over Length | Straight | 40 | 787.4 | 909.8 | £786.51 |
In Stock | View product |
| PT4865130 | 48.0 - 65.09 | Short | Straight | 40 | 130.2 | 249.5 | £235.38 |
In Stock | View product |
| PT4865231 | 48.0 - 65.09 | Standard | Spiral | 40 | 231.8 | 351.1 | £329.16 |
7 days | View product |
| PT4865422 | 48.0 - 65.09 | Extended | Straight | 40 | 422.3 | 541.6 | £473.55 |
In Stock | View product |
| PT4865625 | 48.0 - 65.09 | Extra Long | Straight | 40 | 625 | 744.8 | £718.89 |
In Stock | View product |
| PT4865879 | 48.0 - 65.09 | Over Length | Straight | 40 | 879 | 998.8 | £962.61 |
In Stock | View product |
