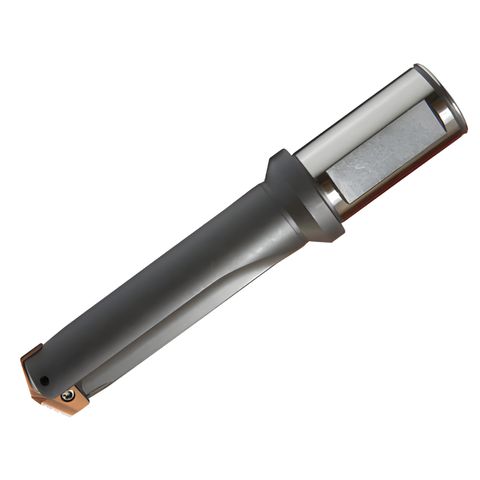

Vortex Spade Drill Holder - Straight Flute - Short Length - 48mm - 65.09mm Drill Dia - 130.2mm Max Drill Depth

The Vortex Spade Drill Holder is a through-coolant, straight-flute tool holder crafted for precise spade drilling in tight spaces. This short-length variant delivers dependable rigidity and chip control, making it a reliable choice for machinists tackling larger-diameter holes in compact setups.

• Through-Coolant: Enables active coolant flow through the holder to improve chip evacuation and cutting temperature control for steadier performances.
• Straight-Flute Design: Optimized for predictable drilling trajectories and robust material removal with minimal deflection.
• Short Length: Compact 48 mm body that fits into restricted pockets and tight work envelope without sacrificing rigidity.
• Drill Diameter Capacity: Accepts spade drill inserts up to 65.09 mm in diameter for larger-hole applications.
• Max Drill Depth: Capable of drilling up to 130.2 mm deep when paired with the appropriate insert.
• Insert Compatibility: Inserts are available in both metric and imperial sizes, with a wide range of diameters to fit this holder.
• Comprehensive Insert Range: Part of a broader lineup of spade drill inserts, allowing you to tailor geometry, pitch, and finish to your project.

This holder pairs with a complete selection of spade drill inserts to match your material and target hole dimensions. The through-coolant design helps maximize tool life and hole quality, while the compact form and broad insert compatibility give you flexibility across a range of applications—from rapid prototyping to production drilling. Access the full insert range on this page to choose the exact diameters and finishes you need for your project.
