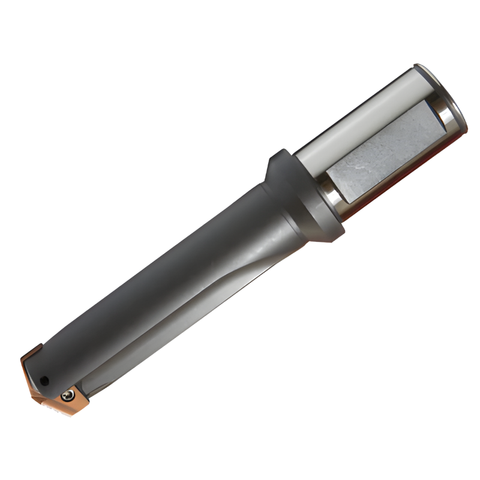

Vortex Spade Drill Holder - Straight Flute - Short Length - 18mm - 24mm Drill Dia - 66.7mm Max Drill Depth

The Vortex Spade Drill Holder is a precision through-coolant toolholder designed for high-diameter spade drilling. This straight-flute, short-length model is ideal for tight pockets and demanding production environments where reliable cooling and robust chip evacuation matter.

• Through-Coolant Design: Internal coolant channels feed directly to the drill, improving chip removal and cooling for longer insert life and cleaner holes.
• Straight Flute: Optimized straight-flute geometry provides stable cutting and efficient debris evacuation for large-diameter SPade drills.
• Short-Length Construction: Compact form minimizes overhang, boosts rigidity, and fits into restricted machining envelopes.
• Drill Dia Compatibility: Designed for 18–24 mm spade drill diameters, ensuring a secure, precise insert interface for consistent hole sizes.
• Max Drill Depth: Capacity up to 66.7 mm, enabling deeper bored holes without compromising rigidity.
• Insert Compatibility: Supports a wide range of spade drill inserts in both Metric and Imperial sizes with varying diameters 9.5 mm–65.09 mm to match your project needs.
• Comprehensive Inserts Range: See the full insert selection on the product page to pick the exact insert your project requires, ensuring optimal cutting geometry and performance.

With the Vortex Spade Drill Holder, you get precise hole geometry, efficient heat management, and flexible insert options all in a compact package. The through-coolant pathway reduces chip buildup and coolant loss, helping you push for higher material removal rates with reduced tool wear. The short length and straight-flute design deliver greater rigidity in tight setups, minimizing deflection during aggressive drilling. Whether you’re working with steel, aluminum, or other metals, you can tailor the system by choosing inserts in Metric or Imperial sizes to match your material and hole tolerance. This holder is the reliable backbone of repeatable, high-quality drilling operations across production runs and prototyping alike.
