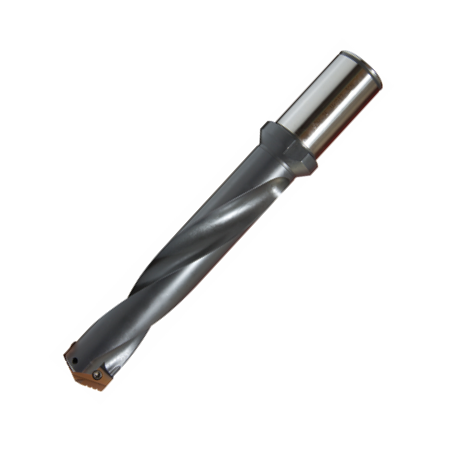

Vortex Spade Drill Holder - Spiral Flute - Standard Length - 35.72mm - 47.63mm Drill Dia - 209.6mm Max Drill Depth

The Vortex Spade Drill Holder with through‑coolant is designed for precision drilling with large spade inserts. It combines a robust, streamlined silhouette with a through‑coolant pathway to boost chip evacuation and overall machining performance, available in straight or spiral flute configurations.

• Through‑Coolant Design: Delivers coolant directly through the holder to the cutting edge, improving chip evacuation and helping control heat during demanding drilling operations.
• Flute Options: Choose between straight or spiral flute versions to optimize chip flow and surface finish for different materials and hole depths.
• Standard Length: 35.72 mm, providing a compact, rigid interface for stable drilling in tight pockets and fixtures.
• Maximum Drill Depth: Supports deep-hole applications with a max depth of 209.6 mm in this configuration.
• Insert Compatibility: Inserts are available in both Metric and Imperial measurements, with a wide range of diameters to fit each holder.
• Diameter Range: The system supports spade drill inserts from 9.5 mm up to 65.09 mm in diameter, giving you broad versatility across projects.
• Specialized Drill Diameter Reference: Configured to accommodate spade drills with a 47.63 mm diameter in this setup, aligning with common industrial standards.
• Inserts Page: A dedicated inserts page on the product line helps you quickly select the perfect spade drill insert for your project and replace worn components without downtime.

The Vortex Spade Drill Holder is ideal for metalworking environments that require reliable through‑coolant performance, efficient chip evacuation, and flexible flute options. Whether you’re drilling deep holes in steel or fabricating precise pockets in aluminum, this holder supports your workflow with a stable, repeatable interface. The broad insert ecosystem—in Metric and Imperial sizes—lets you tailor each setup to your material, hole depth, and finish requirements, so you can move from prototype to production with confidence.
