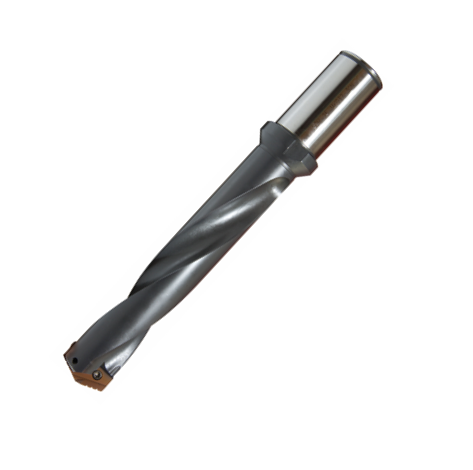

Vortex Spade Drill Holder - Spiral Flute - Intermediate Length - 24.61mm - 35mm Drill Dia - 136.5mm Max Drill Depth
| Drill Diameter | 24.61 - 35.0 |
| Length | Intermediate |
| Flute Type | Spiral |
| Shank Diameter | 32 |
| Max Drill Depth | 136.5 |
| Overall Length | 237.3 |
Learn more about Klarna
The Vortex Spade Drill Holder with through-coolant is designed for professionals who need reliable deep-hole drilling performance with flexible insert options. Built for through-coolant systems, it delivers efficient chip evacuation and consistent results across challenging machining tasks.
- Flute configuration: Spiral flute design for smoother cutting and improved chip flow, helping maintain a steady toolpath in deep holes.
- Through-coolant capability: Dedicated coolant passage enhances chip evacuation and cooling for longer insert life and cleaner holes.
- Intermediate length: Optimized reach that balances accessibility in tight clearances with rigidity for accurate drilling.
- Max drill depth: Capable of drilling up to 136.5 mm, expanding usable depth without sacrificing precision.
- Drill diameter compatibility: Designed to work with spade drill inserts up to a 35 mm diameter for versatile hole sizing.
- Insert compatibility: Inserts available in Metric and Imperial, with a wide range of diameters to fit each holder (9.5 mm – 65.09 mm).
- Wide insert selection: An extensive lineup of insert diameters lets you tailor insert geometry to material, hole size, and finish requirements.
- Unified ecosystem: The product page links to a broad range of spade drill inserts, so you can quickly pick the perfect insert for your project.
Through-coolant delivery, a spiral flute, and a thoughtful intermediate-length design work together to improve chip evacuation, reduce heat buildup, and maintain stable cutting conditions. The broad insert diameter range and dual-unit (Metric and Imperial) insert options give you the flexibility to source precisely the right insert for your application, whether you’re finishing a critical hole in steel or preparing for high-precision manufacturing tasks. This holder is ideal for machinists who demand dependable performance, versatility, and easy integration into existing through-coolant setups.
| Drill Diameter | 24.61 - 35.0 |
| Length | Intermediate |
| Flute Type | Spiral |
| Shank Diameter | 32 |
| Max Drill Depth | 136.5 |
| Overall Length | 237.3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Spade Drill Holders - Straight & Spiral Flute Types
View full collection →You are viewing PT2535136. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Length | Flute Type | Shank Diameter | Max Drill Depth | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PT091119 | 9.5 - 11.0 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 | In Stock | |
| PT091131 | 9.5 - 11.0 | Short | Straight | 20 | 31.8 | 103 | £110.40 | In Stock | |
| PT091160 | 9.5 - 11.0 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 | In Stock | |
| PT0911111 | 9.5 - 11.0 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 | In Stock | |
| PT0911222 | 9.5 - 11.0 | Extra Long | Straight | 20 | 222 | 293.6 | £193.71 | In Stock | |
| PT0911290 | 9.5 - 11.0 | Over Length | Straight | 20 | 290 | 361.8 | £242.31 | In Stock | |
| PT111219 | 11.11 - 12.7 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 | In Stock | |
| PT111231 | 11.11 - 12.7 | Short | Straight | 20 | 31.8 | 103 | £110.40 | In Stock | |
| PT111260 | 11.11 - 12.7 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 | In Stock | |
| PT1112111 | 11.11 - 12.7 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 | 4-6 weeks | |
| PT1112222 | 11.11 - 12.7 | Extra Long | Straight | 20 | 221 | 293.6 | £193.71 | In Stock | |
| PT1112290 | 11.11 - 12.7 | Over Length | Straight | 20 | 290.5 | 361.8 | £242.07 | In Stock | |
| PT131722 | 13.0 - 17.5 | Stub | Straight | 20 | 22.2 | 89.5 | £111.90 | In Stock | |
| PT131734 | 13.0 - 17.5 | Short | Straight | 20 | 34.9 | 105.4 | £120.81 | In Stock | |
| PT131763 | 13.0 - 17.5 | Standard | Spiral | 20 | 63.5 | 134 | £128.10 | In Stock | |
| PT1317114 | 13.0 - 17.5 | Extended | Spiral | 20 | 114.3 | 184.8 | £154.02 | 4-6 weeks | |
| PT1317295 | 13.0 - 17.5 | Extra Long | Straight | 20 | 295 | 365.8 | £242.07 | 4-6 weeks | |
| PT1317387 | 13.0 - 17.5 | Over Length | Straight | 20 | 387 | 457.9 | £302.37 | In Stock | |
| PT182447 | 18.0 - 24.0 | Stub | Straight | 25 | 47.6 | 128.9 | £122.73 | 4-6 weeks | |
| PT182466 | 18.0 - 24.0 | Short | Straight | 25 | 66.7 | 160.2 | £135.03 | 4-6 weeks | |
| PT1824117 | 18.0 - 24.0 | Intermediate | Spiral | 25 | 117.5 | 207.9 | £153.90 | In Stock | |
| PT1824168 | 18.0 - 24.0 | Standard | Spiral | 25 | 168.3 | 258.7 | £176.31 | 4-6 weeks | |
| PT1824269 | 18.0 - 24.0 | Extended | Spiral | 25 | 269.9 | 360.3 | £221.31 | In Stock | |
| PT1824457 | 18.0 - 24.0 | Extra Long | Straight | 25 | 457 | 547.6 | £332.91 | In Stock | |
| PT1824569 | 18.0 - 24.0 | Over Length | Straight | 25 | 569 | 655.6 | £430.83 | 4-6 weeks | |
| PT253557 | 24.61 - 35.0 | Stub | Straight | 32 | 57.2 | 146.4 | £156.12 | In Stock | |
| PT253585 | 24.61 - 35.0 | Short | Straight | 32 | 85.7 | 186.5 | £163.95 | 4-6 weeks | |
| PT2535136 Viewing | 24.61 - 35.0 | Intermediate | Spiral | 32 | 136.5 | 237.3 | £200.49 | 4-6 weeks | |
| PT2535187 | 24.61 - 35.0 | Standard | Spiral | 32 | 187.3 | 288.1 | £226.23 | In Stock | |
| PT2535288 | 24.61 - 35.0 | Extended | Spiral | 32 | 288.9 | 389.7 | £271.08 | In Stock | |
| PT2535511 | 24.61 - 35.0 | Extra Long | Straight | 32 | 511 | 612 | £401.25 | In Stock | |
| PT2535692 | 24.61 - 35.0 | Over Length | Straight | 32 | 692 | 793 | £543.57 | In Stock | |
| PT364776 | 35.72 - 47.63 | Stub | Straight | 40 | 76.2 | 195.1 | £171.75 | In Stock | |
| PT3647120 | 35.72 - 47.63 | Short | Straight | 40 | 120.7 | 243.1 | £221.01 | In Stock | |
| PT3647165 | 35.72 - 47.63 | Intermediate | Spiral | 40 | 165.1 | 287.6 | £284.31 | In Stock | |
| PT3647209 | 35.72 - 47.63 | Standard | Spiral | 40 | 209.6 | 332 | £306.63 | In Stock | |
| PT3647349 | 35.72 - 47.63 | Extended | Straight | 40 | 349.3 | 471.7 | £370.02 | In Stock | |
| PT3647558 | 35.72 - 47.63 | Extra Long | Straight | 40 | 558.8 | 681.2 | £586.95 | In Stock | |
| PT3647787 | 35.72 - 47.63 | Over Length | Straight | 40 | 787.4 | 909.8 | £786.51 | In Stock | |
| PT4865130 | 48.0 - 65.09 | Short | Straight | 40 | 130.2 | 249.5 | £235.38 | In Stock | |
| PT4865231 | 48.0 - 65.09 | Standard | Spiral | 40 | 231.8 | 351.1 | £329.16 | 4-6 weeks | |
| PT4865422 | 48.0 - 65.09 | Extended | Straight | 40 | 422.3 | 541.6 | £473.55 | In Stock | |
| PT4865625 | 48.0 - 65.09 | Extra Long | Straight | 40 | 625 | 744.8 | £718.89 | In Stock | |
| PT4865879 | 48.0 - 65.09 | Over Length | Straight | 40 | 879 | 998.8 | £962.61 | In Stock |
