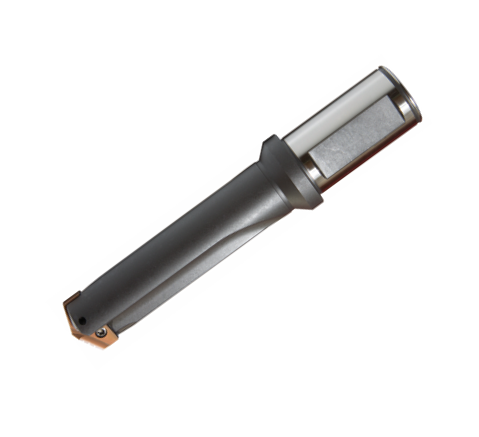

Vortex Spade Drill Holder - Straight Flute - Over Length - 35.72mm - 47.63mm Drill Dia - 787.4mm Max Drill Depth

The Vortex Spade Drill Holder is a high-reach, through-coolant toolholding solution purpose-built for deep-hole spade drilling. Designed for machinists and job shops, it combines extended reach with efficient coolant delivery to improve chip evacuation and overall machining performance.

• Flute option: Available with both a straight flute and a spiral flute to suit cutting conditions and chip flow.
• Through-coolant design: Through-coolant capability enhances coolant delivery for better cooling and chip removal during deep drilling.
• Drill diameter range: Compatible with spade drill inserts in the 35.72 mm to 47.63 mm diameter range for this holder.
• Max drill depth: Over-length design supports a maximum drilling depth of 787.4 mm for extended reach into deep workpieces.
• Insert compatibility: Wide range of inserts available in both metric and imperial sizes to fit each holder, with numerous insert diameters to choose from.
• Overall insert range: Supports insert diameters from 9.5 mm up to 65.09 mm to cover common spade drill configurations.

This holder helps you tackle long-hole drilling tasks with confidence: the through-coolant path improves heat management and chip evacuation, while the extended length minimizes setup changes on long parts. With a broad catalog of metric and imperial inserts, you can quickly select the right insert for your material and hole geometry, ensuring consistent hole quality across demanding applications.
