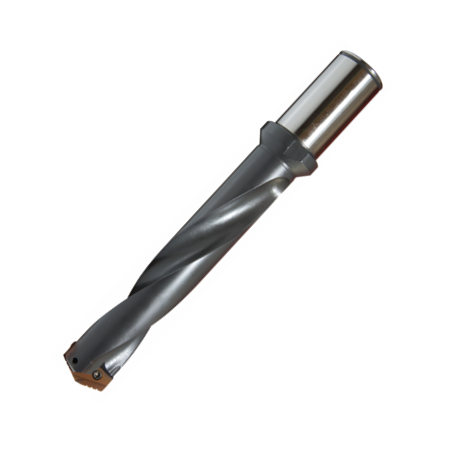

Vortex Spade Drill Holder - Spiral Flute - Standard Length - 9.5mm - 11mm Drill Dia - 60.3mm Max Drill Depth
SKU:PT091160
The Vortex Spade Drill Holder is a precision machining accessory designed for serious drilling work with through-coolant systems. It’s ideal for shops that need reliable chip evacuation and repea...
Read more ↓
Specification
| Drill Diameter | 9.5 - 11.0 |
| Length | Standard |
| Flute Type | Spiral |
| Shank Diameter | 20 |
| Max Drill Depth | 60.3 |
| Overall Length | 131.6 |
£121.05
Prices shown ex. VAT
In Stock— only 2 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Vortex Spade Drill Holder is a precision machining accessory designed for serious drilling work with through-coolant systems. It’s ideal for shops that need reliable chip evacuation and repeatable hole sizes when using standard-length spade drills.
- Flute Type: Choose between spiral flute for enhanced coolant flow and debris removal, or straight flute for straightforward drilling tasks.
- Diameter and Depth: Compatible with 9.5 mm to 11 mm spade drills and a maximum drill depth of 60.3 mm for deeper holes in a single pass.
- Through-Coolant Design: Through-coolant channels improve coolant delivery to the cutting edge, helping reduce heat and extend tool life.
- Insert Compatibility: Supports a wide range of inserts in Metric and Imperial sizes, ensuring the right fit for your project.
- Comprehensive Insert Library: The product page links to a broad selection of spade drill inserts so you can pair the holder with the perfect insert for your material and hole size.
Designed to streamline drilling workflows, the Vortex Spade Drill Holder delivers consistent performance with through-coolant efficiency and flexible insert options. Pair it with the right insert to achieve clean, accurate holes and reliable repeatability across your machining tasks.
| Drill Diameter | 9.5 - 11.0 |
| Length | Standard |
| Flute Type | Spiral |
| Shank Diameter | 20 |
| Max Drill Depth | 60.3 |
| Overall Length | 131.6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Vortex Spade Drill Holders - Straight & Spiral Flute Types
View full collection →You are viewing PT091160. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Length | Flute Type | Shank Diameter | Max Drill Depth | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PT091119 | 9.5 - 11.0 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 | In Stock | |
| PT091131 | 9.5 - 11.0 | Short | Straight | 20 | 31.8 | 103 | £110.40 | In Stock | |
| PT091160 Viewing | 9.5 - 11.0 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 | In Stock | |
| PT0911111 | 9.5 - 11.0 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 | In Stock | |
| PT0911222 | 9.5 - 11.0 | Extra Long | Straight | 20 | 222 | 293.6 | £193.71 | In Stock | |
| PT0911290 | 9.5 - 11.0 | Over Length | Straight | 20 | 290 | 361.8 | £242.31 | In Stock | |
| PT111219 | 11.11 - 12.7 | Stub | Straight | 16 | 19.1 | 89.5 | £102.21 | In Stock | |
| PT111231 | 11.11 - 12.7 | Short | Straight | 20 | 31.8 | 103 | £110.40 | In Stock | |
| PT111260 | 11.11 - 12.7 | Standard | Spiral | 20 | 60.3 | 131.6 | £121.05 | In Stock | |
| PT1112111 | 11.11 - 12.7 | Extended | Spiral | 20 | 111.1 | 182.4 | £144.54 | 4-6 weeks | |
| PT1112222 | 11.11 - 12.7 | Extra Long | Straight | 20 | 221 | 293.6 | £193.71 | In Stock | |
| PT1112290 | 11.11 - 12.7 | Over Length | Straight | 20 | 290.5 | 361.8 | £242.07 | In Stock | |
| PT131722 | 13.0 - 17.5 | Stub | Straight | 20 | 22.2 | 89.5 | £111.90 | In Stock | |
| PT131734 | 13.0 - 17.5 | Short | Straight | 20 | 34.9 | 105.4 | £120.81 | In Stock | |
| PT131763 | 13.0 - 17.5 | Standard | Spiral | 20 | 63.5 | 134 | £128.10 | In Stock | |
| PT1317114 | 13.0 - 17.5 | Extended | Spiral | 20 | 114.3 | 184.8 | £154.02 | 4-6 weeks | |
| PT1317295 | 13.0 - 17.5 | Extra Long | Straight | 20 | 295 | 365.8 | £242.07 | 4-6 weeks | |
| PT1317387 | 13.0 - 17.5 | Over Length | Straight | 20 | 387 | 457.9 | £302.37 | In Stock | |
| PT182447 | 18.0 - 24.0 | Stub | Straight | 25 | 47.6 | 128.9 | £122.73 | 4-6 weeks | |
| PT182466 | 18.0 - 24.0 | Short | Straight | 25 | 66.7 | 160.2 | £135.03 | 4-6 weeks | |
| PT1824117 | 18.0 - 24.0 | Intermediate | Spiral | 25 | 117.5 | 207.9 | £153.90 | In Stock | |
| PT1824168 | 18.0 - 24.0 | Standard | Spiral | 25 | 168.3 | 258.7 | £176.31 | 4-6 weeks | |
| PT1824269 | 18.0 - 24.0 | Extended | Spiral | 25 | 269.9 | 360.3 | £221.31 | In Stock | |
| PT1824457 | 18.0 - 24.0 | Extra Long | Straight | 25 | 457 | 547.6 | £332.91 | In Stock | |
| PT1824569 | 18.0 - 24.0 | Over Length | Straight | 25 | 569 | 655.6 | £430.83 | 4-6 weeks | |
| PT253557 | 24.61 - 35.0 | Stub | Straight | 32 | 57.2 | 146.4 | £156.12 | In Stock | |
| PT253585 | 24.61 - 35.0 | Short | Straight | 32 | 85.7 | 186.5 | £163.95 | 4-6 weeks | |
| PT2535136 | 24.61 - 35.0 | Intermediate | Spiral | 32 | 136.5 | 237.3 | £200.49 | 4-6 weeks | |
| PT2535187 | 24.61 - 35.0 | Standard | Spiral | 32 | 187.3 | 288.1 | £226.23 | In Stock | |
| PT2535288 | 24.61 - 35.0 | Extended | Spiral | 32 | 288.9 | 389.7 | £271.08 | In Stock | |
| PT2535511 | 24.61 - 35.0 | Extra Long | Straight | 32 | 511 | 612 | £401.25 | In Stock | |
| PT2535692 | 24.61 - 35.0 | Over Length | Straight | 32 | 692 | 793 | £543.57 | In Stock | |
| PT364776 | 35.72 - 47.63 | Stub | Straight | 40 | 76.2 | 195.1 | £171.75 | In Stock | |
| PT3647120 | 35.72 - 47.63 | Short | Straight | 40 | 120.7 | 243.1 | £221.01 | In Stock | |
| PT3647165 | 35.72 - 47.63 | Intermediate | Spiral | 40 | 165.1 | 287.6 | £284.31 | In Stock | |
| PT3647209 | 35.72 - 47.63 | Standard | Spiral | 40 | 209.6 | 332 | £306.63 | In Stock | |
| PT3647349 | 35.72 - 47.63 | Extended | Straight | 40 | 349.3 | 471.7 | £370.02 | In Stock | |
| PT3647558 | 35.72 - 47.63 | Extra Long | Straight | 40 | 558.8 | 681.2 | £586.95 | In Stock | |
| PT3647787 | 35.72 - 47.63 | Over Length | Straight | 40 | 787.4 | 909.8 | £786.51 | In Stock | |
| PT4865130 | 48.0 - 65.09 | Short | Straight | 40 | 130.2 | 249.5 | £235.38 | In Stock | |
| PT4865231 | 48.0 - 65.09 | Standard | Spiral | 40 | 231.8 | 351.1 | £329.16 | 4-6 weeks | |
| PT4865422 | 48.0 - 65.09 | Extended | Straight | 40 | 422.3 | 541.6 | £473.55 | In Stock | |
| PT4865625 | 48.0 - 65.09 | Extra Long | Straight | 40 | 625 | 744.8 | £718.89 | In Stock | |
| PT4865879 | 48.0 - 65.09 | Over Length | Straight | 40 | 879 | 998.8 | £962.61 | In Stock |
