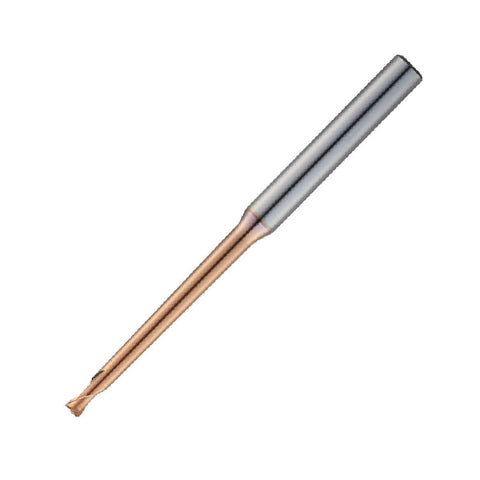

Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 0.4mm x 5mm xR0.5
SKU:ESTNR2004-5-09005
Widin Carbide Corner Radius End Mill is a precision 2-flute cutting tool designed for deep grooves and sloped surfaces. Built for machinists who demand accuracy, this end mill delivers clean corn...
Read more ↓
Material Compatibility
P
H
Specification
View all specifications ↓
Download Cutting Data
| Cutter Diameter | 0.4 |
| Number of Flutes | 2 |
| Flute Length | 0.3 |
| Overall Length | 50 |
| Shank Diameter | 4 |
| Reach | 4 |
£67.39
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Widin Carbide Corner Radius End Mill is a precision 2-flute cutting tool designed for deep grooves and sloped surfaces. Built for machinists who demand accuracy, this end mill delivers clean corners and stable performance with a compact 0.4 mm diameter, 5 mm cutting length, and a corner radius of R0.5.
- Diameter: 0.4 mm
- Flutes: 2
- Cutting length: 5 mm
- Corner radius: R0.5
- Neck design: Tapered neck type (ZSTNR) to reduce vibration and chatter
- Material: Carbide for hardness, wear resistance, and long tool life
- Applications: Precise radii, deep grooves, and sloped surfaces on challenging materials
- Finish: Reinforced corner radius for improved surface finish and dimensional accuracy
Designed to maintain dimensional integrity during tough processes, this end mill enables clean, accurate cutting even on intricate geometries. For engineers and hobbyists working with fine features, it offers consistent results with fewer passes and enhanced stability, making it a reliable choice for high-precision milling tasks.
| Cutter Diameter | 0.4 |
| Number of Flutes | 2 |
| Flute Length | 0.3 |
| Overall Length | 50 |
| Shank Diameter | 4 |
| Reach | 4 |
| Corner Radius | 0.1 |
| Neck Diameter | 0.37 |
| Taper Angle | 0.9° |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type (ZSTNR)
View full collection →You are viewing ESTNR2004-5-09005. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Neck Diameter | Taper Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESTNR2002-2-09005 | 0.2 | 2 | 0.15 | 50 | 4 | 2 | 0.5 | 0.17 | 0.9° | £85.07 | 5 days | |
| ESTNR2005-10-0901 | 0.5 | 2 | 0.35 | 50 | 4 | 5 | 0.1 | 0.47 | 0.9° | £55.24 | 5 days | |
| ESTNR2004-4-0901 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.5 | 0.37 | 0.9° | £64.08 | 5 days | |
| ESTNR2004-4-09005 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.5 | 0.37 | 0.9° | £64.08 | 5 days | |
| ESTNR2004-5-09005 Viewing | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.1 | 0.37 | 0.9° | £67.39 | 5 days | |
| ESTNR2004-5-0901 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.1 | 0.37 | 0.9° | £67.39 | 5 days | |
| ESTNR2005-5-0901 | 0.5 | 2 | 0.35 | 50 | 4 | 8 | 0.1 | 0.47 | 0.9° | £50.82 | 5 days | |
| ESTNR2006-12-0901 | 0.6 | 2 | 0.4 | 55 | 4 | 12 | 0.1 | 0.57 | 0.9° | £55.24 | 5 days | |
| ESTNR2005-8-0901 | 0.5 | 2 | 0.35 | 55 | 4 | 10 | 0.1 | 0.47 | 0.9° | £53.03 | 5 days | |
| ESTNR2006-15-0901 | 0.6 | 2 | 0.4 | 55 | 4 | 15 | 0.1 | 0.57 | 0.9° | £58.55 | 5 days | |
| ESTNR2008-12-0902 | 0.8 | 2 | 0.5 | 50 | 4 | 6 | 0.2 | 0.77 | 0.4° | £55.24 | 5 days | |
| ESTNR2008-6-0402 | 0.8 | 2 | 0.5 | 55 | 4 | 12 | 0.2 | 0.77 | 0.9° | £50.82 | 5 days | |
| ESTNR2010-10-0902 | 1 | 2 | 0.8 | 55 | 4 | 8 | 0.2 | 0.94 | 0.4° | £48.87 | 5 days | |
| ESTNR2010-15-0902 | 1 | 2 | 0.8 | 55 | 4 | 10 | 0.2 | 0.94 | 0.9° | £48.87 | 5 days | |
| ESTNR2010-15-0903 | 1 | 2 | 0.8 | 60 | 4 | 15 | 0.2 | 0.94 | 0.9° | £48.87 | 5 days | |
| ESTNR2010-20-0902 | 1 | 2 | 0.8 | 65 | 4 | 20 | 0.2 | 0.94 | 0.9° | £52.27 | 5 days | |
| ESTNR2010-30-0902 | 1 | 2 | 0.8 | 80 | 4 | 35 | 0.2 | 0.94 | 0.9° | £54.54 | 5 days | |
| ESTNR2010-25-0902 | 1 | 2 | 0.8 | 70 | 4 | 25 | 0.2 | 0.94 | 0.9° | £52.27 | 5 days | |
| ESTNR2010-25-0903 | 1 | 2 | 0.8 | 75 | 4 | 30 | 0.2 | 0.94 | 0.9° | £52.27 | 5 days | |
| ESTNR2010-30-0903 | 1 | 2 | 0.8 | 55 | 4 | 8 | 0.3 | 0.94 | 0.4° | £54.54 | 5 days | |
| ESTNR2010-35-0902 | 1 | 2 | 0.8 | 60 | 4 | 15 | 0.3 | 0.94 | 0.9° | £56.82 | 5 days | |
| ESTNR2010-8-0403 | 1 | 2 | 0.8 | 75 | 4 | 30 | 0.3 | 0.94 | 0.9° | £48.87 | 5 days | |
| ESTNR2010-8-0402 | 1 | 2 | 0.8 | 70 | 4 | 25 | 0.3 | 0.94 | 0.9° | £48.87 | 5 days | |
| ESTNR2015-25-0902 | 1.5 | 2 | 1.35 | 55 | 6 | 10 | 0.3 | 1.42 | 0.4° | £52.27 | 5 days | |
| ESTNR2015-10-0402 | 1.5 | 2 | 1.35 | 55 | 6 | 10 | 0.2 | 1.42 | 0.4° | £48.87 | 5 days | |
| ESTNR2015-20-0903 | 1.5 | 2 | 1.35 | 75 | 6 | 30 | 0.2 | 1.42 | 0.9° | £52.27 | 5 days | |
| ESTNR2015-15-0902 | 1.5 | 2 | 1.35 | 65 | 6 | 20 | 0.2 | 1.42 | 0.9° | £48.87 | 5 days | |
| ESTNR2015-10-0403 | 1.5 | 2 | 1.35 | 60 | 6 | 15 | 0.2 | 1.42 | 0.9° | £48.87 | 5 days | |
| ESTNR2015-20-0902 | 1.5 | 2 | 1.35 | 70 | 6 | 25 | 0.2 | 1.42 | 0.9° | £52.27 | 5 days | |
| ESTNR2015-25-0903 | 1.5 | 2 | 1.35 | 65 | 6 | 20 | 0.3 | 1.42 | 0.9° | £52.27 | 5 days | |
| ESTNR2015-30-0903 | 1.5 | 2 | 1.35 | 75 | 6 | 30 | 0.3 | 1.42 | 0.9° | £54.54 | 5 days | |
| ESTNR2015-30-0902 | 1.5 | 2 | 1.35 | 70 | 6 | 25 | 0.3 | 1.42 | 0.9° | £54.54 | 5 days | |
| ESTNR2020-12-0403 | 2 | 2 | 1.7 | 70 | 6 | 30 | 0.2 | 1.92 | 0.9° | £48.87 | 5 days | |
| ESTNR2020-20-0905 | 2 | 2 | 1.7 | 65 | 6 | 20 | 0.3 | 1.92 | 0.9° | £51.14 | 5 days | |
| ESTNR2020-20-0903 | 2 | 2 | 1.7 | 55 | 6 | 12 | 0.3 | 1.92 | 0.4° | £51.14 | 5 days | |
| ESTNR2020-12-0405 | 2 | 2 | 1.7 | 80 | 6 | 40 | 0.2 | 1.92 | 0.9° | £48.87 | 5 days | |
| ESTNR2020-16-0405 | 2 | 2 | 1.7 | 90 | 6 | 50 | 0.2 | 1.92 | 0.9° | £48.87 | 5 days | |
| ESTNR2020-30-0902 | 2 | 2 | 1.7 | 80 | 6 | 40 | 0.3 | 1.92 | 0.9° | £54.54 | 5 days | |
| ESTNR2020-40-0902 | 2 | 2 | 1.7 | 55 | 6 | 12 | 0.5 | 1.92 | 0.4° | £59.09 | 5 days | |
| ESTNR2020-25-0905 | 2 | 2 | 1.7 | 70 | 6 | 30 | 0.3 | 1.92 | 0.9° | £52.27 | 5 days | |
| ESTNR2020-40-0905 | 2 | 2 | 1.7 | 65 | 6 | 20 | 0.5 | 1.92 | 0.9° | £59.09 | 5 days | |
| ESTNR2020-30-0903 | 2 | 2 | 1.7 | 90 | 6 | 50 | 0.3 | 1.92 | 0.9° | £54.54 | 5 days | |
| ESTNR2020-30-0905 | 2 | 2 | 1.7 | 50 | 6 | 8 | 0.5 | 1.92 | 0.4° | £54.54 | 5 days | |
| ESTNR2020-40-0903 | 2 | 2 | 1.7 | 60 | 6 | 16 | 0.5 | 1.92 | 0.4° | £59.09 | 5 days | |
| ESTNR2020-50-0902 | 2 | 2 | 1.7 | 65 | 6 | 25 | 0.5 | 1.92 | 0.9° | £62.50 | 5 days | |
| ESTNR2020-50-0903 | 2 | 2 | 1.7 | 70 | 6 | 30 | 0.5 | 1.92 | 0.9° | £62.50 | 5 days | |
| ESTNR2020-8-0405 | 2 | 2 | 1.7 | 90 | 6 | 50 | 0.5 | 1.92 | 0.9° | £48.87 | 5 days | |
| ESTNR2020-50-0905 | 2 | 2 | 1.7 | 80 | 6 | 40 | 0.5 | 1.92 | 0.9° | £62.50 | 5 days | |
| ESTNR2030-40-0902 | 3 | 2 | 2.5 | 80 | 6 | 40 | 0.2 | 2.86 | 0.9° | £59.09 | 5 days | |
| ESTNR2030-60-0905 | 3 | 2 | 2.5 | 100 | 6 | 60 | 0.5 | 2.86 | 0.9° | £65.91 | 5 days | |
| ESTNR2030-40-0903 | 3 | 2 | 2.5 | 90 | 6 | 50 | 0.2 | 2.86 | 0.9° | £59.09 | 5 days | |
| ESTNR2030-40-0905 | 3 | 2 | 2.5 | 100 | 6 | 60 | 0.2 | 2.86 | 0.9° | £59.09 | 5 days | |
| ESTNR2030-60-0903 | 3 | 2 | 2.5 | 90 | 6 | 50 | 0.5 | 2.86 | 0.9° | £65.91 | 5 days | |
| ESTNR2030-50-0905 | 3 | 2 | 2.5 | 100 | 6 | 60 | 0.3 | 2.86 | 0.9° | £62.50 | 5 days | |
| ESTNR2030-50-0902 | 3 | 2 | 2.5 | 80 | 6 | 40 | 0.3 | 2.86 | 0.9° | £62.50 | 5 days | |
| ESTNR2030-50-0903 | 3 | 2 | 2.5 | 90 | 6 | 50 | 0.3 | 2.86 | 0.9° | £62.50 | 5 days | |
| ESTNR2030-60-0902 | 3 | 2 | 2.5 | 80 | 6 | 40 | 0.5 | 2.86 | 0.9° | £65.91 | 5 days |
