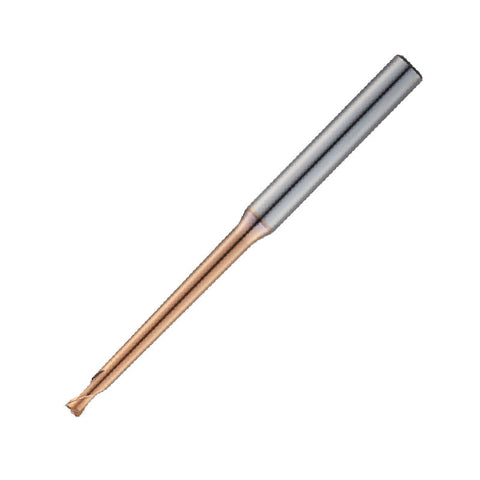

Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 1mm x 25mm xR0.2
SKU:ESTNR2010-25-0902
The Widin Carbide Corner Radius End Mill is a precision 2-flute cutting tool designed for deep grooves, sloped surfaces, and tight radii. Built for machinists who demand stable cutting and accura...
Read more ↓
Material Compatibility
P
H
Specification
View all specifications ↓
Download Cutting Data
| Cutter Diameter | 1 |
| Number of Flutes | 2 |
| Flute Length | 0.8 |
| Overall Length | 70 |
| Shank Diameter | 4 |
| Reach | 25 |
£52.27
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Widin Carbide Corner Radius End Mill is a precision 2-flute cutting tool designed for deep grooves, sloped surfaces, and tight radii. Built for machinists who demand stable cutting and accurate edges, it delivers reliable performance in demanding applications.
- Diameter: 1 mm
- Length: 25 mm overall length
- Corner Radius: R0.2 for precise radii and clean corners
- Flutes: 2-flute configuration for efficient chip evacuation and rigidity
- Neck Design: Tapered neck to minimize vibration and reduce chatter during cutting
- Material: Solid carbide for superior hardness and wear resistance
- Application: Ideal for deep grooves, intricate geometries, and surface finishes that require tight tolerances
This end mill stabilizes the cutting process, improving surface finish and dimensional accuracy even in challenging materials. The tapered neck design helps suppress tool vibration, delivering cleaner cuts and more consistent radii in corners. With its precise 1 mm diameter and compact 25 mm length, it’s well-suited for micro-machining tasks where detail and reliability matter.
| Cutter Diameter | 1 |
| Number of Flutes | 2 |
| Flute Length | 0.8 |
| Overall Length | 70 |
| Shank Diameter | 4 |
| Reach | 25 |
| Corner Radius | 0.2 |
| Neck Diameter | 0.94 |
| Taper Angle | 0.9° |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type (ZSTNR)
View full collection →You are viewing ESTNR2010-25-0902. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Neck Diameter | Taper Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESTNR2002-2-09005 | 0.2 | 2 | 0.15 | 50 | 4 | 2 | 0.5 | 0.17 | 0.9° | £85.07 | 5 days | |
| ESTNR2005-10-0901 | 0.5 | 2 | 0.35 | 50 | 4 | 5 | 0.1 | 0.47 | 0.9° | £55.24 | 5 days | |
| ESTNR2004-4-0901 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.5 | 0.37 | 0.9° | £64.08 | 5 days | |
| ESTNR2004-4-09005 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.5 | 0.37 | 0.9° | £64.08 | 5 days | |
| ESTNR2004-5-09005 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.1 | 0.37 | 0.9° | £67.39 | 5 days | |
| ESTNR2004-5-0901 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.1 | 0.37 | 0.9° | £67.39 | 5 days | |
| ESTNR2005-5-0901 | 0.5 | 2 | 0.35 | 50 | 4 | 8 | 0.1 | 0.47 | 0.9° | £50.82 | 5 days | |
| ESTNR2006-12-0901 | 0.6 | 2 | 0.4 | 55 | 4 | 12 | 0.1 | 0.57 | 0.9° | £55.24 | 5 days | |
| ESTNR2005-8-0901 | 0.5 | 2 | 0.35 | 55 | 4 | 10 | 0.1 | 0.47 | 0.9° | £53.03 | 5 days | |
| ESTNR2006-15-0901 | 0.6 | 2 | 0.4 | 55 | 4 | 15 | 0.1 | 0.57 | 0.9° | £58.55 | 5 days | |
| ESTNR2008-12-0902 | 0.8 | 2 | 0.5 | 50 | 4 | 6 | 0.2 | 0.77 | 0.4° | £55.24 | 5 days | |
| ESTNR2008-6-0402 | 0.8 | 2 | 0.5 | 55 | 4 | 12 | 0.2 | 0.77 | 0.9° | £50.82 | 5 days | |
| ESTNR2010-10-0902 | 1 | 2 | 0.8 | 55 | 4 | 8 | 0.2 | 0.94 | 0.4° | £48.87 | 5 days | |
| ESTNR2010-15-0902 | 1 | 2 | 0.8 | 55 | 4 | 10 | 0.2 | 0.94 | 0.9° | £48.87 | 5 days | |
| ESTNR2010-15-0903 | 1 | 2 | 0.8 | 60 | 4 | 15 | 0.2 | 0.94 | 0.9° | £48.87 | 5 days | |
| ESTNR2010-20-0902 | 1 | 2 | 0.8 | 65 | 4 | 20 | 0.2 | 0.94 | 0.9° | £52.27 | 5 days | |
| ESTNR2010-30-0902 | 1 | 2 | 0.8 | 80 | 4 | 35 | 0.2 | 0.94 | 0.9° | £54.54 | 5 days | |
| ESTNR2010-25-0902 Viewing | 1 | 2 | 0.8 | 70 | 4 | 25 | 0.2 | 0.94 | 0.9° | £52.27 | 5 days | |
| ESTNR2010-25-0903 | 1 | 2 | 0.8 | 75 | 4 | 30 | 0.2 | 0.94 | 0.9° | £52.27 | 5 days | |
| ESTNR2010-30-0903 | 1 | 2 | 0.8 | 55 | 4 | 8 | 0.3 | 0.94 | 0.4° | £54.54 | 5 days | |
| ESTNR2010-35-0902 | 1 | 2 | 0.8 | 60 | 4 | 15 | 0.3 | 0.94 | 0.9° | £56.82 | 5 days | |
| ESTNR2010-8-0403 | 1 | 2 | 0.8 | 75 | 4 | 30 | 0.3 | 0.94 | 0.9° | £48.87 | 5 days | |
| ESTNR2010-8-0402 | 1 | 2 | 0.8 | 70 | 4 | 25 | 0.3 | 0.94 | 0.9° | £48.87 | 5 days | |
| ESTNR2015-25-0902 | 1.5 | 2 | 1.35 | 55 | 6 | 10 | 0.3 | 1.42 | 0.4° | £52.27 | 5 days | |
| ESTNR2015-10-0402 | 1.5 | 2 | 1.35 | 55 | 6 | 10 | 0.2 | 1.42 | 0.4° | £48.87 | 5 days | |
| ESTNR2015-20-0903 | 1.5 | 2 | 1.35 | 75 | 6 | 30 | 0.2 | 1.42 | 0.9° | £52.27 | 5 days | |
| ESTNR2015-15-0902 | 1.5 | 2 | 1.35 | 65 | 6 | 20 | 0.2 | 1.42 | 0.9° | £48.87 | 5 days | |
| ESTNR2015-10-0403 | 1.5 | 2 | 1.35 | 60 | 6 | 15 | 0.2 | 1.42 | 0.9° | £48.87 | 5 days | |
| ESTNR2015-20-0902 | 1.5 | 2 | 1.35 | 70 | 6 | 25 | 0.2 | 1.42 | 0.9° | £52.27 | 5 days | |
| ESTNR2015-25-0903 | 1.5 | 2 | 1.35 | 65 | 6 | 20 | 0.3 | 1.42 | 0.9° | £52.27 | 5 days | |
| ESTNR2015-30-0903 | 1.5 | 2 | 1.35 | 75 | 6 | 30 | 0.3 | 1.42 | 0.9° | £54.54 | 5 days | |
| ESTNR2015-30-0902 | 1.5 | 2 | 1.35 | 70 | 6 | 25 | 0.3 | 1.42 | 0.9° | £54.54 | 5 days | |
| ESTNR2020-12-0403 | 2 | 2 | 1.7 | 70 | 6 | 30 | 0.2 | 1.92 | 0.9° | £48.87 | 5 days | |
| ESTNR2020-20-0905 | 2 | 2 | 1.7 | 65 | 6 | 20 | 0.3 | 1.92 | 0.9° | £51.14 | 5 days | |
| ESTNR2020-20-0903 | 2 | 2 | 1.7 | 55 | 6 | 12 | 0.3 | 1.92 | 0.4° | £51.14 | 5 days | |
| ESTNR2020-12-0405 | 2 | 2 | 1.7 | 80 | 6 | 40 | 0.2 | 1.92 | 0.9° | £48.87 | 5 days | |
| ESTNR2020-16-0405 | 2 | 2 | 1.7 | 90 | 6 | 50 | 0.2 | 1.92 | 0.9° | £48.87 | 5 days | |
| ESTNR2020-30-0902 | 2 | 2 | 1.7 | 80 | 6 | 40 | 0.3 | 1.92 | 0.9° | £54.54 | 5 days | |
| ESTNR2020-40-0902 | 2 | 2 | 1.7 | 55 | 6 | 12 | 0.5 | 1.92 | 0.4° | £59.09 | 5 days | |
| ESTNR2020-25-0905 | 2 | 2 | 1.7 | 70 | 6 | 30 | 0.3 | 1.92 | 0.9° | £52.27 | 5 days | |
| ESTNR2020-40-0905 | 2 | 2 | 1.7 | 65 | 6 | 20 | 0.5 | 1.92 | 0.9° | £59.09 | 5 days | |
| ESTNR2020-30-0903 | 2 | 2 | 1.7 | 90 | 6 | 50 | 0.3 | 1.92 | 0.9° | £54.54 | 5 days | |
| ESTNR2020-30-0905 | 2 | 2 | 1.7 | 50 | 6 | 8 | 0.5 | 1.92 | 0.4° | £54.54 | 5 days | |
| ESTNR2020-40-0903 | 2 | 2 | 1.7 | 60 | 6 | 16 | 0.5 | 1.92 | 0.4° | £59.09 | 5 days | |
| ESTNR2020-50-0902 | 2 | 2 | 1.7 | 65 | 6 | 25 | 0.5 | 1.92 | 0.9° | £62.50 | 5 days | |
| ESTNR2020-50-0903 | 2 | 2 | 1.7 | 70 | 6 | 30 | 0.5 | 1.92 | 0.9° | £62.50 | 5 days | |
| ESTNR2020-8-0405 | 2 | 2 | 1.7 | 90 | 6 | 50 | 0.5 | 1.92 | 0.9° | £48.87 | 5 days | |
| ESTNR2020-50-0905 | 2 | 2 | 1.7 | 80 | 6 | 40 | 0.5 | 1.92 | 0.9° | £62.50 | 5 days | |
| ESTNR2030-40-0902 | 3 | 2 | 2.5 | 80 | 6 | 40 | 0.2 | 2.86 | 0.9° | £59.09 | 5 days | |
| ESTNR2030-60-0905 | 3 | 2 | 2.5 | 100 | 6 | 60 | 0.5 | 2.86 | 0.9° | £65.91 | 5 days | |
| ESTNR2030-40-0903 | 3 | 2 | 2.5 | 90 | 6 | 50 | 0.2 | 2.86 | 0.9° | £59.09 | 5 days | |
| ESTNR2030-40-0905 | 3 | 2 | 2.5 | 100 | 6 | 60 | 0.2 | 2.86 | 0.9° | £59.09 | 5 days | |
| ESTNR2030-60-0903 | 3 | 2 | 2.5 | 90 | 6 | 50 | 0.5 | 2.86 | 0.9° | £65.91 | 5 days | |
| ESTNR2030-50-0905 | 3 | 2 | 2.5 | 100 | 6 | 60 | 0.3 | 2.86 | 0.9° | £62.50 | 5 days | |
| ESTNR2030-50-0902 | 3 | 2 | 2.5 | 80 | 6 | 40 | 0.3 | 2.86 | 0.9° | £62.50 | 5 days | |
| ESTNR2030-50-0903 | 3 | 2 | 2.5 | 90 | 6 | 50 | 0.3 | 2.86 | 0.9° | £62.50 | 5 days | |
| ESTNR2030-60-0902 | 3 | 2 | 2.5 | 80 | 6 | 40 | 0.5 | 2.86 | 0.9° | £65.91 | 5 days |
