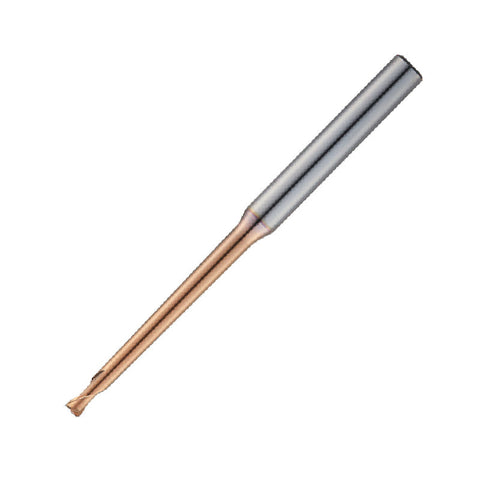

Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 2mm x 40mm xR0.2
| Cutter Diameter | 2 |
| Number of Flutes | 2 |
| Flute Length | 1.7 |
| Overall Length | 55 |
Learn more about Klarna
Description
Widin Carbide Corner Radius End Mill is a precision cutting tool crafted for deep grooves and sloped surfaces. Built for machinists who demand accurate corner radii and stable performance, it combines a 2-flute design with a tapered neck to enhance cutting stability.
- Diameter: 2 mm
- Overall length: 40 mm
- Neck type: Tapered neck design to reduce vibration and chatter for steadier cutting
- Flutes: 2-flute geometry for efficient chip evacuation and smooth finishes
- Corner radius: R0.2 mm (xR0.2) for precise, crisp radii on complex geometries
- Material: Solid carbide for exceptional hardness and wear resistance
In practical use, this end mill delivers stable performance through deep groove and bevel work, producing consistent surface finishes and tight dimensional control. The tapered neck dampens vibrations during heavy cuts, helping minimize chatter and extend tool life. The precise R0.2 corner radius enables clean, accurate radii on intricate parts, reducing the need for rework. With its compact 2-flute design and carbide construction, it’s well-suited for finishing passes and precise pocket radii on challenging materials and geometries.
Part Numbers
- Protool Part Number
- ESTNR2020-40-0902
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type (ZSTNR)
View full collection →You are viewing ESTNR2020-40-0902. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Neck Diameter | Taper Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESTNR2002-2-09005 | 0.2 | 2 | 0.15 | 50 | 4 | 2 | 0.5 | 0.17 | 0.9° | £73.88 | 5 days | |
| ESTNR2005-10-0901 | 0.5 | 2 | 0.35 | 50 | 4 | 10 | 0.1 | 0.47 | 0.9° | £47.98 | 5 days | |
| ESTNR2004-4-0901 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.5 | 0.37 | 0.9° | £55.65 | 5 days | |
| ESTNR2004-4-09005 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.5 | 0.37 | 0.9° | £55.65 | 5 days | |
| ESTNR2004-5-09005 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.1 | 0.37 | 0.9° | £58.55 | 5 days | |
| ESTNR2004-5-0901 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.1 | 0.37 | 0.9° | £58.55 | 5 days | |
| ESTNR2005-5-0901 | 0.5 | 2 | 0.35 | 50 | 4 | 5 | 0.1 | 0.47 | 0.9° | £44.13 | 5 days | |
| ESTNR2006-12-0901 | 0.6 | 2 | 0.4 | 55 | 4 | 12 | 0.1 | 0.57 | 0.9° | £47.98 | 5 days | |
| ESTNR2005-8-0901 | 0.5 | 2 | 0.35 | 55 | 4 | 8 | 0.1 | 0.47 | 0.9° | £46.05 | 5 days | |
| ESTNR2006-15-0901 | 0.6 | 2 | 0.4 | 55 | 4 | 15 | 0.1 | 0.57 | 0.9° | £50.85 | 5 days | |
| ESTNR2008-12-0902 | 0.8 | 2 | 0.5 | 50 | 4 | 12 | 0.2 | 0.77 | 0.9° | £47.98 | 5 days | |
| ESTNR2008-6-0402 | 0.8 | 2 | 0.5 | 55 | 4 | 6 | 0.2 | 0.77 | 0.4° | £44.13 | 5 days | |
| ESTNR2010-10-0902 | 1 | 2 | 0.8 | 55 | 4 | 10 | 0.2 | 0.94 | 0.9° | £44.03 | 5 days | |
| ESTNR2010-15-0902 | 1 | 2 | 0.8 | 55 | 4 | 15 | 0.2 | 0.94 | 0.9° | £44.03 | 5 days | |
| ESTNR2010-15-0903 | 1 | 2 | 0.8 | 60 | 4 | 15 | 0.2 | 0.94 | 0.9° | £44.03 | 5 days | |
| ESTNR2010-20-0902 | 1 | 2 | 0.8 | 65 | 4 | 20 | 0.2 | 0.94 | 0.9° | £47.08 | 5 days | |
| ESTNR2010-30-0902 | 1 | 2 | 0.8 | 80 | 4 | 30 | 0.2 | 0.94 | 0.9° | £49.13 | 5 days | |
| ESTNR2010-25-0902 | 1 | 2 | 0.8 | 70 | 4 | 25 | 0.2 | 0.94 | 0.9° | £47.08 | 5 days | |
| ESTNR2010-25-0903 | 1 | 2 | 0.8 | 75 | 4 | 25 | 0.2 | 0.94 | 0.9° | £47.08 | 5 days | |
| ESTNR2010-30-0903 | 1 | 2 | 0.8 | 55 | 4 | 30 | 0.3 | 0.94 | 0.9° | £49.13 | 5 days | |
| ESTNR2010-35-0902 | 1 | 2 | 0.8 | 60 | 4 | 35 | 0.3 | 0.94 | 0.9° | £51.18 | 5 days | |
| ESTNR2010-8-0403 | 1 | 2 | 0.8 | 75 | 4 | 8 | 0.3 | 0.94 | 0.4° | £44.03 | 5 days | |
| ESTNR2010-8-0402 | 1 | 2 | 0.8 | 70 | 4 | 8 | 0.3 | 0.94 | 0.4° | £44.03 | 5 days | |
| ESTNR2015-25-0902 | 1.5 | 2 | 1.35 | 55 | 6 | 25 | 0.3 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNR2015-10-0402 | 1.5 | 2 | 1.35 | 55 | 6 | 10 | 0.2 | 1.42 | 0.4° | £44.03 | 5 days | |
| ESTNR2015-20-0903 | 1.5 | 2 | 1.35 | 75 | 6 | 20 | 0.2 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNR2015-15-0902 | 1.5 | 2 | 1.35 | 65 | 6 | 15 | 0.2 | 1.42 | 0.9° | £44.03 | 5 days | |
| ESTNR2015-10-0403 | 1.5 | 2 | 1.35 | 60 | 6 | 10 | 0.2 | 1.42 | 0.4° | £44.03 | 5 days | |
| ESTNR2015-20-0902 | 1.5 | 2 | 1.35 | 70 | 6 | 20 | 0.2 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNR2015-25-0903 | 1.5 | 2 | 1.35 | 65 | 6 | 25 | 0.3 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNR2015-30-0903 | 1.5 | 2 | 1.35 | 75 | 6 | 30 | 0.3 | 1.42 | 0.9° | £49.13 | 5 days | |
| ESTNR2015-30-0902 | 1.5 | 2 | 1.35 | 70 | 6 | 30 | 0.3 | 1.42 | 0.9° | £49.13 | 5 days | |
| ESTNR2020-12-0403 | 2 | 2 | 1.7 | 70 | 6 | 12 | 0.2 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNR2020-20-0905 | 2 | 2 | 1.7 | 65 | 6 | 20 | 0.3 | 1.92 | 0.9° | £46.05 | 5 days | |
| ESTNR2020-20-0903 | 2 | 2 | 1.7 | 55 | 6 | 20 | 0.3 | 1.92 | 0.9° | £46.05 | 5 days | |
| ESTNR2020-12-0405 | 2 | 2 | 1.7 | 80 | 6 | 12 | 0.2 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNR2020-16-0405 | 2 | 2 | 1.7 | 90 | 6 | 16 | 0.2 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNR2020-30-0902 | 2 | 2 | 1.7 | 80 | 6 | 30 | 0.3 | 1.92 | 0.9° | £49.13 | 5 days | |
| ESTNR2020-40-0902 Viewing | 2 | 2 | 1.7 | 55 | 6 | 40 | 0.5 | 1.92 | 0.9° | £53.23 | 5 days | |
| ESTNR2020-25-0905 | 2 | 2 | 1.7 | 70 | 6 | 25 | 0.3 | 1.92 | 0.9° | £47.08 | 5 days | |
| ESTNR2020-40-0905 | 2 | 2 | 1.7 | 65 | 6 | 40 | 0.5 | 1.92 | 0.9° | £53.23 | 5 days | |
| ESTNR2020-30-0903 | 2 | 2 | 1.7 | 90 | 6 | 30 | 0.3 | 1.92 | 0.9° | £49.13 | 5 days | |
| ESTNR2020-30-0905 | 2 | 2 | 1.7 | 50 | 6 | 30 | 0.5 | 1.92 | 0.9° | £49.13 | 5 days | |
| ESTNR2020-40-0903 | 2 | 2 | 1.7 | 60 | 6 | 40 | 0.5 | 1.92 | 0.9° | £53.23 | 5 days | |
| ESTNR2020-50-0902 | 2 | 2 | 1.7 | 65 | 6 | 50 | 0.5 | 1.92 | 0.9° | £56.30 | 5 days | |
| ESTNR2020-50-0903 | 2 | 2 | 1.7 | 70 | 6 | 50 | 0.5 | 1.92 | 0.9° | £56.30 | 5 days | |
| ESTNR2020-8-0405 | 2 | 2 | 1.7 | 90 | 6 | 8 | 0.5 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNR2020-50-0905 | 2 | 2 | 1.7 | 80 | 6 | 50 | 0.5 | 1.92 | 0.9° | £56.30 | 5 days | |
| ESTNR2030-40-0902 | 3 | 2 | 2.5 | 80 | 6 | 40 | 0.2 | 2.86 | 0.9° | £53.23 | 5 days | |
| ESTNR2030-60-0905 | 3 | 2 | 2.5 | 100 | 6 | 60 | 0.5 | 2.86 | 0.9° | £59.38 | 5 days | |
| ESTNR2030-40-0903 | 3 | 2 | 2.5 | 90 | 6 | 40 | 0.2 | 2.86 | 0.9° | £53.23 | 5 days | |
| ESTNR2030-40-0905 | 3 | 2 | 2.5 | 100 | 6 | 40 | 0.2 | 2.86 | 0.9° | £53.23 | 5 days | |
| ESTNR2030-60-0903 | 3 | 2 | 2.5 | 90 | 6 | 60 | 0.5 | 2.86 | 0.9° | £59.38 | 5 days | |
| ESTNR2030-50-0905 | 3 | 2 | 2.5 | 100 | 6 | 50 | 0.3 | 2.86 | 0.9° | £56.30 | 5 days | |
| ESTNR2030-50-0902 | 3 | 2 | 2.5 | 80 | 6 | 50 | 0.3 | 2.86 | 0.9° | £56.30 | 5 days | |
| ESTNR2030-50-0903 | 3 | 2 | 2.5 | 90 | 6 | 50 | 0.3 | 2.86 | 0.9° | £56.30 | 5 days | |
| ESTNR2030-60-0902 | 3 | 2 | 2.5 | 80 | 6 | 60 | 0.5 | 2.86 | 0.9° | £59.38 | 5 days |
