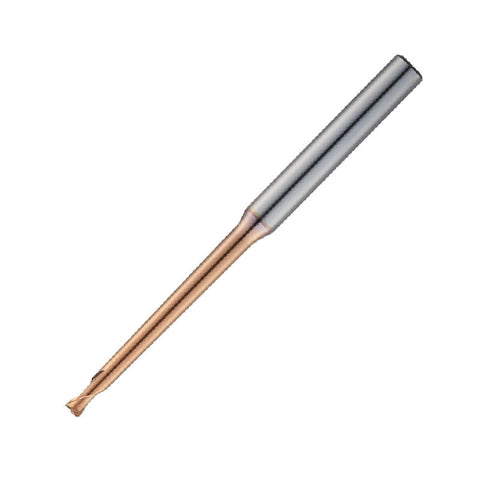

Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 1mm x 20mm xR0.2

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 1mm x 20mm xR0.2

Name: Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 1mm x 20mm xR0.2
Brand: Widin
SKU: ESTNR2010-20-0902
Price: 47.08 GBP
Availability: InStock

SKU:ESTNR2010-20-0902

The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for deep grooves, tight radii, and sloped surfaces. Built with a tapered neck for enhanced stability, it delivers smo... Read more ↓

Material Compatibility

Specifications at a glance

Cutter Diameter	1
Number of Flutes	2
Flute Length	0.8
Overall Length	65

View all specifications ↓

Download Cutting Data

£47.08

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

End Mill Type: Carbide corner radius end mill with a 2‑flute, tapered neck design for stability during deep cuts
Diameter: 1.0 mm cutting diameter for fine-detail work and tight geometries
Cutting Length: 20 mmLength of cut suited for slender slots and shallow pockets
Corner Radius: xR0.2 corner radius enables precise, clean corner machining even in complex profiles
Neck Design: Tapered neck reduces vibration and chatter, improving surface finish and dimensional control
Material: Solid carbide for superior hardness and wear resistance in challenging materials

This end mill is engineered to maintain cutting stability where precision matters most—deep grooves and sloped surfaces that demand accurate radii and tight tolerances. The tapered neck minimizes tool deflection and chatter, helping you achieve consistent surface finish and reliable dimensional accuracy across multiple passes. The reinforced corner radius design provides cleaner cuts and reduced chipping around tight radii, making it suitable for intricate geometries and tougher materials.

Part Numbers

Protool Part Number: ESTNR2010-20-0902
Brand: Widin
Category: End Mill

Cutting Data & Technical Datasheet

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type (ZSTNR)

View full collection →

You are viewing ESTNR2010-20-0902. Click any other SKU to view its full details.

Product SKU	Cutter Diameter	Number of Flutes	Flute Length	Overall Length	Shank Diameter	Reach	Corner Radius	Neck Diameter	Taper Angle	Price	Stock

ESTNR2002-2-09005	0.2	2	0.15	50	4	2	0.5	0.17	0.9°	£73.88	5 days
ESTNR2005-10-0901	0.5	2	0.35	50	4	10	0.1	0.47	0.9°	£47.98	5 days
ESTNR2004-4-0901	0.4	2	0.3	50	4	4	0.5	0.37	0.9°	£55.65	5 days
ESTNR2004-4-09005	0.4	2	0.3	50	4	4	0.5	0.37	0.9°	£55.65	5 days
ESTNR2004-5-09005	0.4	2	0.3	50	4	5	0.1	0.37	0.9°	£58.55	5 days
ESTNR2004-5-0901	0.4	2	0.3	50	4	5	0.1	0.37	0.9°	£58.55	5 days
ESTNR2005-5-0901	0.5	2	0.35	50	4	5	0.1	0.47	0.9°	£44.13	5 days
ESTNR2006-12-0901	0.6	2	0.4	55	4	12	0.1	0.57	0.9°	£47.98	5 days
ESTNR2005-8-0901	0.5	2	0.35	55	4	8	0.1	0.47	0.9°	£46.05	5 days
ESTNR2006-15-0901	0.6	2	0.4	55	4	15	0.1	0.57	0.9°	£50.85	5 days
ESTNR2008-12-0902	0.8	2	0.5	50	4	12	0.2	0.77	0.9°	£47.98	5 days
ESTNR2008-6-0402	0.8	2	0.5	55	4	6	0.2	0.77	0.4°	£44.13	5 days
ESTNR2010-10-0902	1	2	0.8	55	4	10	0.2	0.94	0.9°	£44.03	5 days
ESTNR2010-15-0902	1	2	0.8	55	4	15	0.2	0.94	0.9°	£44.03	5 days
ESTNR2010-15-0903	1	2	0.8	60	4	15	0.2	0.94	0.9°	£44.03	5 days
ESTNR2010-20-0902 Viewing	1	2	0.8	65	4	20	0.2	0.94	0.9°	£47.08	5 days
ESTNR2010-30-0902	1	2	0.8	80	4	30	0.2	0.94	0.9°	£49.13	5 days
ESTNR2010-25-0902	1	2	0.8	70	4	25	0.2	0.94	0.9°	£47.08	5 days
ESTNR2010-25-0903	1	2	0.8	75	4	25	0.2	0.94	0.9°	£47.08	5 days
ESTNR2010-30-0903	1	2	0.8	55	4	30	0.3	0.94	0.9°	£49.13	5 days
ESTNR2010-35-0902	1	2	0.8	60	4	35	0.3	0.94	0.9°	£51.18	5 days
ESTNR2010-8-0403	1	2	0.8	75	4	8	0.3	0.94	0.4°	£44.03	5 days
ESTNR2010-8-0402	1	2	0.8	70	4	8	0.3	0.94	0.4°	£44.03	5 days
ESTNR2015-25-0902	1.5	2	1.35	55	6	25	0.3	1.42	0.9°	£47.08	5 days
ESTNR2015-10-0402	1.5	2	1.35	55	6	10	0.2	1.42	0.4°	£44.03	5 days
ESTNR2015-20-0903	1.5	2	1.35	75	6	20	0.2	1.42	0.9°	£47.08	5 days
ESTNR2015-15-0902	1.5	2	1.35	65	6	15	0.2	1.42	0.9°	£44.03	5 days
ESTNR2015-10-0403	1.5	2	1.35	60	6	10	0.2	1.42	0.4°	£44.03	5 days
ESTNR2015-20-0902	1.5	2	1.35	70	6	20	0.2	1.42	0.9°	£47.08	5 days
ESTNR2015-25-0903	1.5	2	1.35	65	6	25	0.3	1.42	0.9°	£47.08	5 days
ESTNR2015-30-0903	1.5	2	1.35	75	6	30	0.3	1.42	0.9°	£49.13	5 days
ESTNR2015-30-0902	1.5	2	1.35	70	6	30	0.3	1.42	0.9°	£49.13	5 days
ESTNR2020-12-0403	2	2	1.7	70	6	12	0.2	1.92	0.4°	£44.03	5 days
ESTNR2020-20-0905	2	2	1.7	65	6	20	0.3	1.92	0.9°	£46.05	5 days
ESTNR2020-20-0903	2	2	1.7	55	6	20	0.3	1.92	0.9°	£46.05	5 days
ESTNR2020-12-0405	2	2	1.7	80	6	12	0.2	1.92	0.4°	£44.03	5 days
ESTNR2020-16-0405	2	2	1.7	90	6	16	0.2	1.92	0.4°	£44.03	5 days
ESTNR2020-30-0902	2	2	1.7	80	6	30	0.3	1.92	0.9°	£49.13	5 days
ESTNR2020-40-0902	2	2	1.7	55	6	40	0.5	1.92	0.9°	£53.23	5 days
ESTNR2020-25-0905	2	2	1.7	70	6	25	0.3	1.92	0.9°	£47.08	5 days
ESTNR2020-40-0905	2	2	1.7	65	6	40	0.5	1.92	0.9°	£53.23	5 days
ESTNR2020-30-0903	2	2	1.7	90	6	30	0.3	1.92	0.9°	£49.13	5 days
ESTNR2020-30-0905	2	2	1.7	50	6	30	0.5	1.92	0.9°	£49.13	5 days
ESTNR2020-40-0903	2	2	1.7	60	6	40	0.5	1.92	0.9°	£53.23	5 days
ESTNR2020-50-0902	2	2	1.7	65	6	50	0.5	1.92	0.9°	£56.30	5 days
ESTNR2020-50-0903	2	2	1.7	70	6	50	0.5	1.92	0.9°	£56.30	5 days
ESTNR2020-8-0405	2	2	1.7	90	6	8	0.5	1.92	0.4°	£44.03	5 days
ESTNR2020-50-0905	2	2	1.7	80	6	50	0.5	1.92	0.9°	£56.30	5 days
ESTNR2030-40-0902	3	2	2.5	80	6	40	0.2	2.86	0.9°	£53.23	5 days
ESTNR2030-60-0905	3	2	2.5	100	6	60	0.5	2.86	0.9°	£59.38	5 days
ESTNR2030-40-0903	3	2	2.5	90	6	40	0.2	2.86	0.9°	£53.23	5 days
ESTNR2030-40-0905	3	2	2.5	100	6	40	0.2	2.86	0.9°	£53.23	5 days
ESTNR2030-60-0903	3	2	2.5	90	6	60	0.5	2.86	0.9°	£59.38	5 days
ESTNR2030-50-0905	3	2	2.5	100	6	50	0.3	2.86	0.9°	£56.30	5 days
ESTNR2030-50-0902	3	2	2.5	80	6	50	0.3	2.86	0.9°	£56.30	5 days
ESTNR2030-50-0903	3	2	2.5	90	6	50	0.3	2.86	0.9°	£56.30	5 days
ESTNR2030-60-0902	3	2	2.5	80	6	60	0.5	2.86	0.9°	£59.38	5 days
