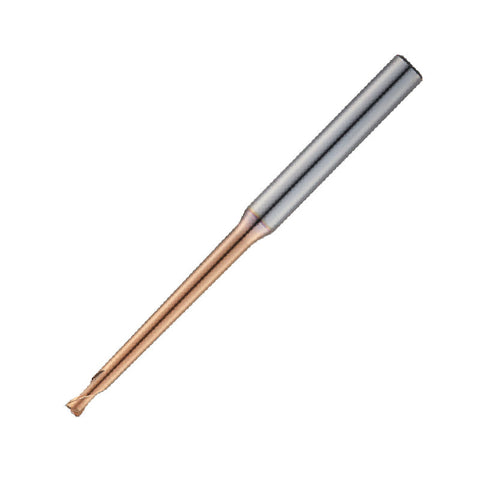

Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 2mm x 12mm xR0.5

Widin Carbide Corner Radius End Mill is a precision cutting tool designed for engineers and machinists who need accurate radii on deep grooves and sloped surfaces. This 2 mm diameter, 12 mm overall length end mill with a 0.5 mm corner radius delivers reliable performance in tight workpieces and challenging materials.

• Diameter: 2 mm
• Overall length: 12 mm
• Corner radius: R0.5
• Flutes: 2-flute design
• Neck type: Tapered neck reduces vibration and chatter for steadier cuts.
• Material: Carbide for hardness and wear resistance.
• Primary applications: Deep grooves, sloped surfaces, and precise corner radii.

The tapered neck design helps dampen cutting forces during entry and throughout the cut, contributing to a more stable process and a noticeably smoother finish on complex geometries. The 2-flute configuration provides a balanced combination of rigidity and chip evacuation, which is especially beneficial for micro-milling tasks that require clean corners and tight tolerances. With a dedicated corner radius of 0.5 mm, the tool maintains radii integrity under load, reducing the risk of chipping and ensuring consistent edge quality across passes. This makes the end mill well suited for micro-mold features, precision pockets, and intricate grooves where a precise R0.5 corner is essential.
