Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 1.5mm x 25mm xR0.3
| Cutter Diameter | 1.5 |
| Number of Flutes | 2 |
| Flute Length | 1.35 |
| Overall Length | 65 |
Learn more about Klarna
Description

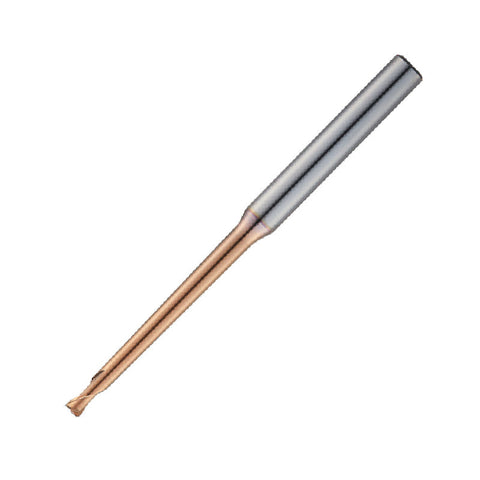

The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for small-diameter milling, ideal for machinists working on deep grooves and sloped surfaces. Featuring a 1.5 mm diameter, 25 mm overall length, 2 flutes, and a tapered neck, it delivers stable, accurate cuts in tight geometries.
- Diameter: 1.5 mm
- Overall length: 25 mm
- Corner radius: R0.3 mm
- Flute count: 2-flute design
- Neck type: Tapered neck to reduce vibration and chatter for improved stability
- Material: Solid carbide for hardness and wear resistance
- Applications: Precise grooving, shallow to deep slots, and finishing on curved or sloped surfaces
The tapered neck design helps minimize tool vibration and chatter during cutting, which translates to steadier feeds, better surface quality, and tighter dimensional control. The corner radius supports accurate R-machining, producing clean corners and reducing chipping on intricate geometries. With its 2-flute geometry, the tool offers efficient chip evacuation and smooth cutting action, making it well-suited for challenging materials and tight tolerances.
Part Numbers
- Protool Part Number
- ESTNR2015-25-0903
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type (ZSTNR)
View full collection →You are viewing ESTNR2015-25-0903. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Neck Diameter | Taper Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESTNR2002-2-09005 | 0.2 | 2 | 0.15 | 50 | 4 | 2 | 0.5 | 0.17 | 0.9° | £73.88 | 5 days | |
| ESTNR2005-10-0901 | 0.5 | 2 | 0.35 | 50 | 4 | 10 | 0.1 | 0.47 | 0.9° | £47.98 | 5 days | |
| ESTNR2004-4-0901 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.5 | 0.37 | 0.9° | £55.65 | 5 days | |
| ESTNR2004-4-09005 | 0.4 | 2 | 0.3 | 50 | 4 | 4 | 0.5 | 0.37 | 0.9° | £55.65 | 5 days | |
| ESTNR2004-5-09005 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.1 | 0.37 | 0.9° | £58.55 | 5 days | |
| ESTNR2004-5-0901 | 0.4 | 2 | 0.3 | 50 | 4 | 5 | 0.1 | 0.37 | 0.9° | £58.55 | 5 days | |
| ESTNR2005-5-0901 | 0.5 | 2 | 0.35 | 50 | 4 | 5 | 0.1 | 0.47 | 0.9° | £44.13 | 5 days | |
| ESTNR2006-12-0901 | 0.6 | 2 | 0.4 | 55 | 4 | 12 | 0.1 | 0.57 | 0.9° | £47.98 | 5 days | |
| ESTNR2005-8-0901 | 0.5 | 2 | 0.35 | 55 | 4 | 8 | 0.1 | 0.47 | 0.9° | £46.05 | 5 days | |
| ESTNR2006-15-0901 | 0.6 | 2 | 0.4 | 55 | 4 | 15 | 0.1 | 0.57 | 0.9° | £50.85 | 5 days | |
| ESTNR2008-12-0902 | 0.8 | 2 | 0.5 | 50 | 4 | 12 | 0.2 | 0.77 | 0.9° | £47.98 | 5 days | |
| ESTNR2008-6-0402 | 0.8 | 2 | 0.5 | 55 | 4 | 6 | 0.2 | 0.77 | 0.4° | £44.13 | 5 days | |
| ESTNR2010-10-0902 | 1 | 2 | 0.8 | 55 | 4 | 10 | 0.2 | 0.94 | 0.9° | £44.03 | 5 days | |
| ESTNR2010-15-0902 | 1 | 2 | 0.8 | 55 | 4 | 15 | 0.2 | 0.94 | 0.9° | £44.03 | 5 days | |
| ESTNR2010-15-0903 | 1 | 2 | 0.8 | 60 | 4 | 15 | 0.2 | 0.94 | 0.9° | £44.03 | 5 days | |
| ESTNR2010-20-0902 | 1 | 2 | 0.8 | 65 | 4 | 20 | 0.2 | 0.94 | 0.9° | £47.08 | 5 days | |
| ESTNR2010-30-0902 | 1 | 2 | 0.8 | 80 | 4 | 30 | 0.2 | 0.94 | 0.9° | £49.13 | 5 days | |
| ESTNR2010-25-0902 | 1 | 2 | 0.8 | 70 | 4 | 25 | 0.2 | 0.94 | 0.9° | £47.08 | 5 days | |
| ESTNR2010-25-0903 | 1 | 2 | 0.8 | 75 | 4 | 25 | 0.2 | 0.94 | 0.9° | £47.08 | 5 days | |
| ESTNR2010-30-0903 | 1 | 2 | 0.8 | 55 | 4 | 30 | 0.3 | 0.94 | 0.9° | £49.13 | 5 days | |
| ESTNR2010-35-0902 | 1 | 2 | 0.8 | 60 | 4 | 35 | 0.3 | 0.94 | 0.9° | £51.18 | 5 days | |
| ESTNR2010-8-0403 | 1 | 2 | 0.8 | 75 | 4 | 8 | 0.3 | 0.94 | 0.4° | £44.03 | 5 days | |
| ESTNR2010-8-0402 | 1 | 2 | 0.8 | 70 | 4 | 8 | 0.3 | 0.94 | 0.4° | £44.03 | 5 days | |
| ESTNR2015-25-0902 | 1.5 | 2 | 1.35 | 55 | 6 | 25 | 0.3 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNR2015-10-0402 | 1.5 | 2 | 1.35 | 55 | 6 | 10 | 0.2 | 1.42 | 0.4° | £44.03 | 5 days | |
| ESTNR2015-20-0903 | 1.5 | 2 | 1.35 | 75 | 6 | 20 | 0.2 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNR2015-15-0902 | 1.5 | 2 | 1.35 | 65 | 6 | 15 | 0.2 | 1.42 | 0.9° | £44.03 | 5 days | |
| ESTNR2015-10-0403 | 1.5 | 2 | 1.35 | 60 | 6 | 10 | 0.2 | 1.42 | 0.4° | £44.03 | 5 days | |
| ESTNR2015-20-0902 | 1.5 | 2 | 1.35 | 70 | 6 | 20 | 0.2 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNR2015-25-0903 Viewing | 1.5 | 2 | 1.35 | 65 | 6 | 25 | 0.3 | 1.42 | 0.9° | £47.08 | 5 days | |
| ESTNR2015-30-0903 | 1.5 | 2 | 1.35 | 75 | 6 | 30 | 0.3 | 1.42 | 0.9° | £49.13 | 5 days | |
| ESTNR2015-30-0902 | 1.5 | 2 | 1.35 | 70 | 6 | 30 | 0.3 | 1.42 | 0.9° | £49.13 | 5 days | |
| ESTNR2020-12-0403 | 2 | 2 | 1.7 | 70 | 6 | 12 | 0.2 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNR2020-20-0905 | 2 | 2 | 1.7 | 65 | 6 | 20 | 0.3 | 1.92 | 0.9° | £46.05 | 5 days | |
| ESTNR2020-20-0903 | 2 | 2 | 1.7 | 55 | 6 | 20 | 0.3 | 1.92 | 0.9° | £46.05 | 5 days | |
| ESTNR2020-12-0405 | 2 | 2 | 1.7 | 80 | 6 | 12 | 0.2 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNR2020-16-0405 | 2 | 2 | 1.7 | 90 | 6 | 16 | 0.2 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNR2020-30-0902 | 2 | 2 | 1.7 | 80 | 6 | 30 | 0.3 | 1.92 | 0.9° | £49.13 | 5 days | |
| ESTNR2020-40-0902 | 2 | 2 | 1.7 | 55 | 6 | 40 | 0.5 | 1.92 | 0.9° | £53.23 | 5 days | |
| ESTNR2020-25-0905 | 2 | 2 | 1.7 | 70 | 6 | 25 | 0.3 | 1.92 | 0.9° | £47.08 | 5 days | |
| ESTNR2020-40-0905 | 2 | 2 | 1.7 | 65 | 6 | 40 | 0.5 | 1.92 | 0.9° | £53.23 | 5 days | |
| ESTNR2020-30-0903 | 2 | 2 | 1.7 | 90 | 6 | 30 | 0.3 | 1.92 | 0.9° | £49.13 | 5 days | |
| ESTNR2020-30-0905 | 2 | 2 | 1.7 | 50 | 6 | 30 | 0.5 | 1.92 | 0.9° | £49.13 | 5 days | |
| ESTNR2020-40-0903 | 2 | 2 | 1.7 | 60 | 6 | 40 | 0.5 | 1.92 | 0.9° | £53.23 | 5 days | |
| ESTNR2020-50-0902 | 2 | 2 | 1.7 | 65 | 6 | 50 | 0.5 | 1.92 | 0.9° | £56.30 | 5 days | |
| ESTNR2020-50-0903 | 2 | 2 | 1.7 | 70 | 6 | 50 | 0.5 | 1.92 | 0.9° | £56.30 | 5 days | |
| ESTNR2020-8-0405 | 2 | 2 | 1.7 | 90 | 6 | 8 | 0.5 | 1.92 | 0.4° | £44.03 | 5 days | |
| ESTNR2020-50-0905 | 2 | 2 | 1.7 | 80 | 6 | 50 | 0.5 | 1.92 | 0.9° | £56.30 | 5 days | |
| ESTNR2030-40-0902 | 3 | 2 | 2.5 | 80 | 6 | 40 | 0.2 | 2.86 | 0.9° | £53.23 | 5 days | |
| ESTNR2030-60-0905 | 3 | 2 | 2.5 | 100 | 6 | 60 | 0.5 | 2.86 | 0.9° | £59.38 | 5 days | |
| ESTNR2030-40-0903 | 3 | 2 | 2.5 | 90 | 6 | 40 | 0.2 | 2.86 | 0.9° | £53.23 | 5 days | |
| ESTNR2030-40-0905 | 3 | 2 | 2.5 | 100 | 6 | 40 | 0.2 | 2.86 | 0.9° | £53.23 | 5 days | |
| ESTNR2030-60-0903 | 3 | 2 | 2.5 | 90 | 6 | 60 | 0.5 | 2.86 | 0.9° | £59.38 | 5 days | |
| ESTNR2030-50-0905 | 3 | 2 | 2.5 | 100 | 6 | 50 | 0.3 | 2.86 | 0.9° | £56.30 | 5 days | |
| ESTNR2030-50-0902 | 3 | 2 | 2.5 | 80 | 6 | 50 | 0.3 | 2.86 | 0.9° | £56.30 | 5 days | |
| ESTNR2030-50-0903 | 3 | 2 | 2.5 | 90 | 6 | 50 | 0.3 | 2.86 | 0.9° | £56.30 | 5 days | |
| ESTNR2030-60-0902 | 3 | 2 | 2.5 | 80 | 6 | 60 | 0.5 | 2.86 | 0.9° | £59.38 | 5 days |
