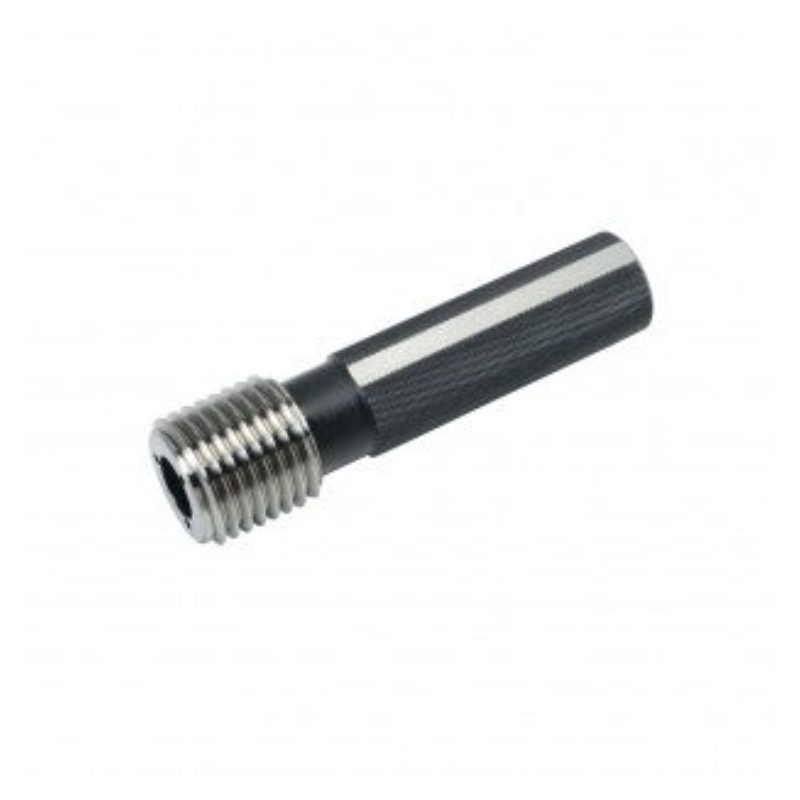

VCOIL Plug Gauge (GO) - Metric (STI) - Heli Coil Gauge - Right Hand - 4H - M52 x 5
| Thread Form | Metric (STI) |
| Size | M52 |
| Pitch | 5 |
| Gauge Type | Plug Gauge (GO) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
VCOIL GO plug gauge for metric (STI) Helicoil applications, designed for right‑hand M52 x 5 threads (4H). This precision GO gauge helps verify that the thread cut in a part meets the ANSI/ASME standard, ensuring reliable helicoil installation.
- Thread gauge type: GO plug gauge for metric (STI) Helicoil threads, right‑hand
- Size: M52 x 5, 4H tolerance
- Standards compliance: Manufactured and assessed to ANSI/ASME thread system
- Usage specification: Must screw into the thread cut into a part by hand, without using excessive force
- Reference condition: Parts and gauges verified at 20° Celsius
- Calibration options: Factory calibration certificate available on request; calibrated by an independent measurement laboratory to DIN, ISO, and ANSI standards using IAC thread scanners
- Manufacturer: VÖLKEL – trusted source for helicoil gauging solutions
This GO gauge delivers clear, immediate pass/fail feedback during assembly or quality control. If the gauge screws in smoothly by hand, the thread form meets the specified standard; if not, the thread should be reworked to avoid downstream issues. With optional calibration certificates, you gain traceability for audits and process control, helping you maintain consistent thread quality across production runs.
