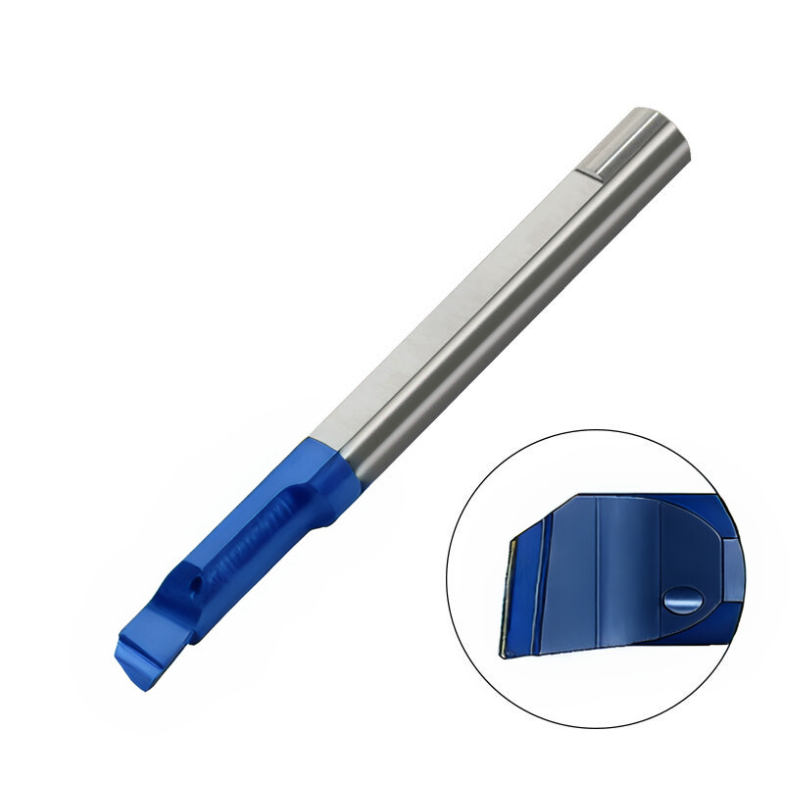

Carmex Carbide Tiny Tool - Boring Bar - MTR - BMK Grade - 4.1mm Minimum Diameter x 10mm Reach x R0.1
SKU:MTR4R0.1L10BMK
Carmex Carbide Tiny Tool is a compact, solid carbide boring bar engineered for precise small-diameter bores and reliable general turning. Designed for tight spaces, it features a 4.1 mm minimum d...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring (MTR) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 10 |
| Radius (R) | 0.1 |
| Grade | BMK |
| Holder | SIM****H4 |
£23.71
Prices shown ex. VAT
In Stock— only 1 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Carmex Carbide Tiny Tool is a compact, solid carbide boring bar engineered for precise small-diameter bores and reliable general turning. Designed for tight spaces, it features a 4.1 mm minimum diameter, 10 mm reach, and an R0.1 tip radius—perfect for micro boring and finishing passes where steadiness and precision matter. Built in BMK Grade, it delivers exceptional heat resistance and smooth cutting performance, making it a versatile general-purpose option for all materials.
- BMK Grade with PVD triple coating: Sub-micron structure and advanced PVD triple coating (ISO K10–K20) provide outstanding heat resistance and smooth cutting, helping maintain edge quality and extend tool life across a wide range of materials.
- Small-diameter, long-reach geometry: With a 4.1 mm minimum diameter, 10 mm reach, and an R0.1 nose radius, it excels at tight bores and precise finishing in confined spaces.
- Versatile boring and turning capability: Primarily designed for boring but capable of general turning, offering a single dependable tool for multiple machining tasks and reducing tool changes.
This tool supports efficient workflows by delivering consistent hole quality and smooth finishes, even on challenging materials. The durable BMK coating reduces wear and friction for reliable performance over long runs, while the compact form factor simplifies setup and alignment in crowded setups—helping you complete micro-bore projects with confidence and repeatable results.
| Application | Boring (MTR) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 10 |
| Radius (R) | 0.1 |
| Grade | BMK |
| Holder | SIM****H4 |
| L | 51 |
| F | 1.7 |
| D | 4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - BMK Grade (MTR)
View full collection →You are viewing MTR4R0.1L10BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR1.2R0L7BMK | 1.2 | 7 | 0 | BMK | SIM****H3 | £25.49 | In Stock | |
| MTR1.2R0L9BMK | 1.2 | 9 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1.5R0.1L6BMK | 1.5 | 6 | 0.1 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1.5R0L6BMK | 1.5 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0.05L4BMK | 1 | 4 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0.05L6BMK | 1 | 6 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0L6BMK | 1 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR2.5R0.1L10BMK | 2.5 | 10 | 0.1 | BMK | SIM****H4 | £23.17 | 5 days | |
| MTR2.5R0.1L15BMK | 2.5 | 15 | 0.1 | BMK | SIM****H4 | £24.30 | In Stock | |
| MTR2.5R0L10BMK | 2.5 | 10 | 0 | BMK | SIM****H4 | £23.17 | In Stock | |
| MTR2R0.05L10BMK | 2.1 | 10 | 0.05 | BMK | SIM****H3 | £20.98 | In Stock | |
| MTR2R0.05L5BMK | 2.1 | 5 | 0.05 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0.15L10BMK | 2.1 | 10 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR2R0.15L5BMK | 2.1 | 5 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR2R0.1L10BMK | 2.1 | 10 | 0.1 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0.1L15BMK | 2.1 | 15 | 0.1 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0L10BMK | 2.1 | 10 | 0 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR3R0.05L10BMK | 3.1 | 10 | 0.05 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR3R0.05L15BMK | 3.1 | 15 | 0.05 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTR3R0.1L10BMK | 3.1 | 10 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTR3R0.1L15BMK | 3.1 | 15 | 0.1 | BMK | SIM****H3 | £25.17 | In Stock | |
| MTR3R0.2L10BMK | 3.1 | 10 | 0.2 | BMK | SIM****H3 | £23.17 | In Stock | |
| MTR3R0.2L15BMK | 3.1 | 15 | 0.2 | BMK | SIM****H3 | £25.17 | In Stock | |
| MTR4R0.05L15BMK | 4.1 | 15 | 0.05 | BMK | SIM****H3 | £25.61 | 5 days | |
| MTR4R0.05L22BMK | 4.1 | 22 | 0.05 | BMK | SIM****H4 | £26.86 | 5 days | |
| MTR4R0.1L10BMK Viewing | 4.1 | 10 | 0.1 | BMK | SIM****H4 | £23.71 | In Stock | |
| MTR4R0.1L15BMK | 4.1 | 15 | 0.1 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTR4R0.1L22BMK | 4.1 | 22 | 0.1 | BMK | SIM****H4 | £26.89 | In Stock | |
| MTR4R0.2L10BMK | 4.1 | 10 | 0.2 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTR4R0.2L15BMK | 4.1 | 15 | 0.2 | BMK | SIM****H4 | £25.63 | 5 days | |
| MTR4R0.2L22BMK | 4.1 | 22 | 0.2 | BMK | SIM****H4 | £26.89 | In Stock | |
| MTR4R0.2L30BMK | 4.1 | 30 | 0.2 | BMK | SIM****H4 | £30.48 | 5 days | |
| MTR5R0.05L15BMK | 5.1 | 15 | 0.05 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTR5R0.1L15BMK | 5.1 | 15 | 0.1 | BMK | SIM****H5 | £26.22 | 5 days | |
| MTR5R0.1L22BMK | 5.1 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTR5R0.1L30BMK | 5.1 | 30 | 0.1 | BMK | SIM****H5 | £33.92 | In Stock | |
| MTR5R0.2L10BMK | 5.1 | 10 | 0.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTR5R0.2L15BMK | 5.1 | 15 | 0.2 | BMK | SIM****H5 | £26.20 | In Stock | |
| MTR5R0.2L22BMK | 5.1 | 22 | 0.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTR5R0.2L30BMK | 5.1 | 30 | 0.2 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTR5R0.2L40BMK | 5.1 | 40 | 0.2 | BMK | SIM****H5 | £33.90 | 5 days | |
| MTR6R0.05L15BMK | 6.1 | 15 | 0.05 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.05L22BMK | 6.1 | 22 | 0.05 | BMK | SIM****H6 | £29.64 | 5 days | |
| MTR6R0.1L15BMK | 6.1 | 15 | 0.1 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.1L22BMK | 6.1 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MTR6R0.2L15BMK | 6.1 | 15 | 0.2 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.2L22BMK | 6.1 | 22 | 0.2 | BMK | SIM****H6 | £30.48 | In Stock | |
| MTR6R0.2L30BMK | 6.1 | 30 | 0.2 | BMK | SIM****H6 | £34.42 | In Stock | |
| MTR6R0.2L35BMK | 6.1 | 35 | 0.2 | BMK | SIM****H6 | £37.02 | In Stock | |
| MTR6R0.2L40BMK | 6.1 | 40 | 0.2 | BMK | SIM****H6 | £37.91 | 5 days | |
| MTR7R0.2L22BMK | 7.1 | 22 | 0.2 | BMK | SIM****H7 | £32.47 | 5 days | |
| MTR7R0.2L30BMK | 7.1 | 30 | 0.2 | BMK | SIM****H7 | £35.94 | In Stock | |
| MTR8R0.2L15BMK | 8.1 | 15 | 0.2 | BMK | SIM****H8 | £32.40 | 5 days | |
| MTR8R0.2L22BMK | 8.1 | 22 | 0.2 | BMK | SIM****H8 | £36.58 | 5 days | |
| MTR8R0.2L35BMK | 8.1 | 35 | 0.2 | BMK | SIM****H8 | £38.87 | 5 days | |
| MTR10R0.2L35BMK | 10.1 | 35 | 0.2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MTL1.2R0L7BMK | 1.2 | 7 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.2R0L9BMK | 1.2 | 9 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.5R0.1L6BMK | 1.5 | 6 | 0.1 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.5R0L6BMK | 1.5 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL10R0.2L35BMK | 10.1 | 35 | 0.2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MTL1R0.05L4BMK | 1 | 4 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1R0.05L6BMK | 1 | 6 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1R0L6BMK | 1 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL2.5R0.1L10BMK | 2.5 | 10 | 0.1 | BMK | SIM****H3 | £23.15 | 5 days | |
| MTL2.5R0.1L15BMK | 2.5 | 15 | 0.1 | BMK | SIM****H3 | £24.31 | 5 days | |
| MTL2.5R0L10BMK | 2.5 | 10 | 0 | BMK | SIM****H3 | £23.15 | 5 days | |
| MTL2R0.05L10BMK | 2.1 | 10 | 0.05 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTL2R0.05L5BMK | 2.1 | 5 | 0.05 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0.15L10BMK | 2.1 | 10 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL2R0.15L5BMK | 2.1 | 5 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL2R0.1L10BMK | 2.1 | 10 | 0.1 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0.1L15BMK | 2.1 | 15 | 0.1 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0L10BMK | 2.1 | 10 | 0 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL3R0.05L10BMK | 3.1 | 10 | 0.05 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL3R0.05L15BMK | 3.1 | 15 | 0.05 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.1L10BMK | 3.1 | 10 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.1L15BMK | 3.1 | 15 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.2L10BMK | 3.1 | 10 | 0.2 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL3R0.2L15BMK | 3.1 | 15 | 0.2 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL4R0.05L15BMK | 4.1 | 15 | 0.05 | BMK | SIM****H3 | £25.61 | 5 days | |
| MTL4R0.05L22BMK | 4.1 | 22 | 0.05 | BMK | SIM****H4 | £26.86 | 5 days | |
| MTL4R0.1L10BMK | 4.1 | 10 | 0.1 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTL4R0.1L15BMK | 4.1 | 15 | 0.1 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTL4R0.1L22BMK | 4.1 | 22 | 0.1 | BMK | SIM****H4 | £26.89 | 5 days | |
| MTL4R0.2L10BMK | 4.1 | 10 | 0.2 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTL4R0.2L15BMK | 4.1 | 15 | 0.2 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTL4R0.2L22BMK | 4.1 | 22 | 0.2 | BMK | SIM****H4 | £26.89 | 5 days | |
| MTL4R0.2L30BMK | 4.1 | 30 | 0.2 | BMK | SIM****H4 | £30.45 | 5 days | |
| MTL5R0.05L15BMK | 5.1 | 15 | 0.05 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.1L15BMK | 5.1 | 15 | 0.1 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.1L22BMK | 5.1 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTL5R0.1L30BMK | 5.1 | 30 | 0.1 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTL5R0.2L10BMK | 5.1 | 10 | 0.2 | BMK | SIM****H5 | £26.18 | 5 days | |
| MTL5R0.2L15BMK | 5.1 | 15 | 0.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.2L22BMK | 5.1 | 22 | 0.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTL5R0.2L30BMK | 5.1 | 30 | 0.2 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTL5R0.2L40BMK | 5.1 | 40 | 0.2 | BMK | SIM****H5 | £33.90 | 5 days | |
| MTL6R0.05L15BMK | 6.1 | 15 | 0.05 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTL6R0.05L22BMK | 6.1 | 22 | 0.05 | BMK | SIM****H6 | £29.65 | 5 days | |
| MTL6R0.1L15BMK | 6.1 | 15 | 0.1 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTL6R0.1L22BMK | 6.1 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MTL6R0.2L15BMK | 6.1 | 15 | 0.2 | BMK | SIM****H6 | £26.30 | 5 days | |
| MTL6R0.2L22BMK | 6.1 | 22 | 0.2 | BMK | SIM****H6 | £25.58 | 5 days | |
| MTL6R0.2L30BMK | 6.1 | 30 | 0.2 | BMK | SIM****H6 | £34.46 | 5 days | |
| MTL6R0.2L35BMK | 6.1 | 35 | 0.2 | BMK | SIM****H6 | £37.02 | 5 days | |
| MTL6R0.2L40BMK | 6.1 | 40 | 0.2 | BMK | SIM****H6 | £37.91 | 5 days | |
| MTL7R0.2L22BMK | 7.1 | 22 | 0.2 | BMK | SIM****H7 | £32.47 | 5 days | |
| MTL7R0.2L30BMK | 7.1 | 30 | 0.2 | BMK | SIM****H7 | £35.97 | 5 days | |
| MTL8R0.2L15BMK | 8.1 | 15 | 0.2 | BMK | SIM****H8 | £32.40 | 5 days | |
| MTL8R0.2L22BMK | 8.1 | 22 | 0.2 | BMK | SIM****H8 | £36.58 | 5 days | |
| MTL8R0.2L35BMK | 8.1 | 35 | 0.2 | BMK | SIM****H8 | £38.87 | 5 days |
