Carmex Carbide Tiny Tool - Boring Bar - MTR - BMK Grade - 4.1mm Minimum Diameter x 15mm Reach x R0.1
SKU:MTR4R0.1L15BMK

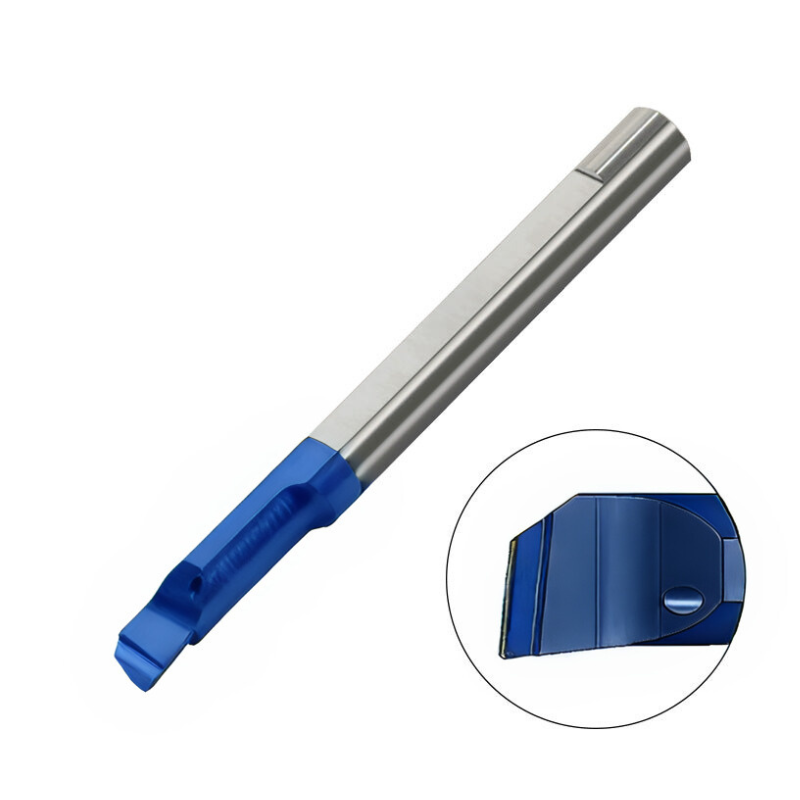

The Carmex Carbide Tiny Tool is a solid carbide boring bar built for tight bores and general turning. Its compact 4.1 mm minimum diameter, 15 mm reach, and R0.1 nose radius let you access confine...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring (MTR) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 15 |
| Radius (R) | 0.1 |
| Grade | BMK |
| Holder | SIM****H4 |
£25.61
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool is a solid carbide boring bar built for tight bores and general turning. Its compact 4.1 mm minimum diameter, 15 mm reach, and R0.1 nose radius let you access confined features with precise control. This tool is ideal for machinists, engineers, hobbyists, and shop floor technicians who demand reliable performance in small-diameter parts.
The BMK-grade variant uses sub-micron carbide with an advanced PVD triple coating to deliver outstanding heat resistance and smooth cutting across a wide range of materials. For stainless steels and other demanding applications, the BXC TiN-coated option from the same family provides excellent wear resistance at lower cutting speeds.
- BMK Sub-Micron Grade with Triple PVD Coating: Extreme heat resistance (ISO K10-K20) enables maximum performance and a consistently smooth cut, helping you maintain pass-through quality and tool life across materials.
- BXC TiN Coated Grade for Stainless Steel: PVD TiN coating supports low cutting speeds while delivering reliable wear resistance on stainless steels (ISO P30-P50 / K25-K40).
- Compact Geometry: 4.1 mm Ø, 15 mm Reach, R0.1: Allows access to tight bores and deep pockets with stable, precise cuts and minimal tool deflection.
Designed to simplify setups, deliver repeatable internal finishes, and extend tool life, this Carmex Tiny Tool helps streamline boring and general turning workflows from prototype runs to production parts.
| Application | Boring (MTR) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 15 |
| Radius (R) | 0.1 |
| Grade | BMK |
| Holder | SIM****H4 |
| L | 51 |
| F | 1.7 |
| D | 4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - BMK Grade (MTR)
View full collection →You are viewing MTR4R0.1L15BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR1.2R0L7BMK | 1.2 | 7 | 0 | BMK | SIM****H3 | £25.49 | In Stock | |
| MTR1.2R0L9BMK | 1.2 | 9 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1.5R0.1L6BMK | 1.5 | 6 | 0.1 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1.5R0L6BMK | 1.5 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0.05L4BMK | 1 | 4 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0.05L6BMK | 1 | 6 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0L6BMK | 1 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR2.5R0.1L10BMK | 2.5 | 10 | 0.1 | BMK | SIM****H4 | £23.17 | 5 days | |
| MTR2.5R0.1L15BMK | 2.5 | 15 | 0.1 | BMK | SIM****H4 | £24.30 | In Stock | |
| MTR2.5R0L10BMK | 2.5 | 10 | 0 | BMK | SIM****H4 | £23.17 | In Stock | |
| MTR2R0.05L10BMK | 2.1 | 10 | 0.05 | BMK | SIM****H3 | £20.98 | In Stock | |
| MTR2R0.05L5BMK | 2.1 | 5 | 0.05 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0.15L10BMK | 2.1 | 10 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR2R0.15L5BMK | 2.1 | 5 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR2R0.1L10BMK | 2.1 | 10 | 0.1 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0.1L15BMK | 2.1 | 15 | 0.1 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0L10BMK | 2.1 | 10 | 0 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR3R0.05L10BMK | 3.1 | 10 | 0.05 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR3R0.05L15BMK | 3.1 | 15 | 0.05 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTR3R0.1L10BMK | 3.1 | 10 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTR3R0.1L15BMK | 3.1 | 15 | 0.1 | BMK | SIM****H3 | £25.17 | In Stock | |
| MTR3R0.2L10BMK | 3.1 | 10 | 0.2 | BMK | SIM****H3 | £23.17 | In Stock | |
| MTR3R0.2L15BMK | 3.1 | 15 | 0.2 | BMK | SIM****H3 | £25.17 | In Stock | |
| MTR4R0.05L15BMK | 4.1 | 15 | 0.05 | BMK | SIM****H3 | £25.61 | 5 days | |
| MTR4R0.05L22BMK | 4.1 | 22 | 0.05 | BMK | SIM****H4 | £26.86 | 5 days | |
| MTR4R0.1L10BMK | 4.1 | 10 | 0.1 | BMK | SIM****H4 | £23.71 | In Stock | |
| MTR4R0.1L15BMK Viewing | 4.1 | 15 | 0.1 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTR4R0.1L22BMK | 4.1 | 22 | 0.1 | BMK | SIM****H4 | £26.89 | In Stock | |
| MTR4R0.2L10BMK | 4.1 | 10 | 0.2 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTR4R0.2L15BMK | 4.1 | 15 | 0.2 | BMK | SIM****H4 | £25.63 | 5 days | |
| MTR4R0.2L22BMK | 4.1 | 22 | 0.2 | BMK | SIM****H4 | £26.89 | In Stock | |
| MTR4R0.2L30BMK | 4.1 | 30 | 0.2 | BMK | SIM****H4 | £30.48 | 5 days | |
| MTR5R0.05L15BMK | 5.1 | 15 | 0.05 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTR5R0.1L15BMK | 5.1 | 15 | 0.1 | BMK | SIM****H5 | £26.22 | 5 days | |
| MTR5R0.1L22BMK | 5.1 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTR5R0.1L30BMK | 5.1 | 30 | 0.1 | BMK | SIM****H5 | £33.92 | In Stock | |
| MTR5R0.2L10BMK | 5.1 | 10 | 0.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTR5R0.2L15BMK | 5.1 | 15 | 0.2 | BMK | SIM****H5 | £26.20 | In Stock | |
| MTR5R0.2L22BMK | 5.1 | 22 | 0.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTR5R0.2L30BMK | 5.1 | 30 | 0.2 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTR5R0.2L40BMK | 5.1 | 40 | 0.2 | BMK | SIM****H5 | £33.90 | 5 days | |
| MTR6R0.05L15BMK | 6.1 | 15 | 0.05 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.05L22BMK | 6.1 | 22 | 0.05 | BMK | SIM****H6 | £29.64 | 5 days | |
| MTR6R0.1L15BMK | 6.1 | 15 | 0.1 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.1L22BMK | 6.1 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MTR6R0.2L15BMK | 6.1 | 15 | 0.2 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.2L22BMK | 6.1 | 22 | 0.2 | BMK | SIM****H6 | £30.48 | In Stock | |
| MTR6R0.2L30BMK | 6.1 | 30 | 0.2 | BMK | SIM****H6 | £34.42 | In Stock | |
| MTR6R0.2L35BMK | 6.1 | 35 | 0.2 | BMK | SIM****H6 | £37.02 | In Stock | |
| MTR6R0.2L40BMK | 6.1 | 40 | 0.2 | BMK | SIM****H6 | £37.91 | 5 days | |
| MTR7R0.2L22BMK | 7.1 | 22 | 0.2 | BMK | SIM****H7 | £32.47 | 5 days | |
| MTR7R0.2L30BMK | 7.1 | 30 | 0.2 | BMK | SIM****H7 | £35.94 | In Stock | |
| MTR8R0.2L15BMK | 8.1 | 15 | 0.2 | BMK | SIM****H8 | £32.40 | 5 days | |
| MTR8R0.2L22BMK | 8.1 | 22 | 0.2 | BMK | SIM****H8 | £36.58 | 5 days | |
| MTR8R0.2L35BMK | 8.1 | 35 | 0.2 | BMK | SIM****H8 | £38.87 | 5 days | |
| MTR10R0.2L35BMK | 10.1 | 35 | 0.2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MTL1.2R0L7BMK | 1.2 | 7 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.2R0L9BMK | 1.2 | 9 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.5R0.1L6BMK | 1.5 | 6 | 0.1 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.5R0L6BMK | 1.5 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL10R0.2L35BMK | 10.1 | 35 | 0.2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MTL1R0.05L4BMK | 1 | 4 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1R0.05L6BMK | 1 | 6 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1R0L6BMK | 1 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL2.5R0.1L10BMK | 2.5 | 10 | 0.1 | BMK | SIM****H3 | £23.15 | 5 days | |
| MTL2.5R0.1L15BMK | 2.5 | 15 | 0.1 | BMK | SIM****H3 | £24.31 | 5 days | |
| MTL2.5R0L10BMK | 2.5 | 10 | 0 | BMK | SIM****H3 | £23.15 | 5 days | |
| MTL2R0.05L10BMK | 2.1 | 10 | 0.05 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTL2R0.05L5BMK | 2.1 | 5 | 0.05 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0.15L10BMK | 2.1 | 10 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL2R0.15L5BMK | 2.1 | 5 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL2R0.1L10BMK | 2.1 | 10 | 0.1 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0.1L15BMK | 2.1 | 15 | 0.1 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0L10BMK | 2.1 | 10 | 0 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL3R0.05L10BMK | 3.1 | 10 | 0.05 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL3R0.05L15BMK | 3.1 | 15 | 0.05 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.1L10BMK | 3.1 | 10 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.1L15BMK | 3.1 | 15 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.2L10BMK | 3.1 | 10 | 0.2 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL3R0.2L15BMK | 3.1 | 15 | 0.2 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL4R0.05L15BMK | 4.1 | 15 | 0.05 | BMK | SIM****H3 | £25.61 | 5 days | |
| MTL4R0.05L22BMK | 4.1 | 22 | 0.05 | BMK | SIM****H4 | £26.86 | 5 days | |
| MTL4R0.1L10BMK | 4.1 | 10 | 0.1 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTL4R0.1L15BMK | 4.1 | 15 | 0.1 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTL4R0.1L22BMK | 4.1 | 22 | 0.1 | BMK | SIM****H4 | £26.89 | 5 days | |
| MTL4R0.2L10BMK | 4.1 | 10 | 0.2 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTL4R0.2L15BMK | 4.1 | 15 | 0.2 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTL4R0.2L22BMK | 4.1 | 22 | 0.2 | BMK | SIM****H4 | £26.89 | 5 days | |
| MTL4R0.2L30BMK | 4.1 | 30 | 0.2 | BMK | SIM****H4 | £30.45 | 5 days | |
| MTL5R0.05L15BMK | 5.1 | 15 | 0.05 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.1L15BMK | 5.1 | 15 | 0.1 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.1L22BMK | 5.1 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTL5R0.1L30BMK | 5.1 | 30 | 0.1 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTL5R0.2L10BMK | 5.1 | 10 | 0.2 | BMK | SIM****H5 | £26.18 | 5 days | |
| MTL5R0.2L15BMK | 5.1 | 15 | 0.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.2L22BMK | 5.1 | 22 | 0.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTL5R0.2L30BMK | 5.1 | 30 | 0.2 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTL5R0.2L40BMK | 5.1 | 40 | 0.2 | BMK | SIM****H5 | £33.90 | 5 days | |
| MTL6R0.05L15BMK | 6.1 | 15 | 0.05 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTL6R0.05L22BMK | 6.1 | 22 | 0.05 | BMK | SIM****H6 | £29.65 | 5 days | |
| MTL6R0.1L15BMK | 6.1 | 15 | 0.1 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTL6R0.1L22BMK | 6.1 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MTL6R0.2L15BMK | 6.1 | 15 | 0.2 | BMK | SIM****H6 | £26.30 | 5 days | |
| MTL6R0.2L22BMK | 6.1 | 22 | 0.2 | BMK | SIM****H6 | £25.58 | 5 days | |
| MTL6R0.2L30BMK | 6.1 | 30 | 0.2 | BMK | SIM****H6 | £34.46 | 5 days | |
| MTL6R0.2L35BMK | 6.1 | 35 | 0.2 | BMK | SIM****H6 | £37.02 | 5 days | |
| MTL6R0.2L40BMK | 6.1 | 40 | 0.2 | BMK | SIM****H6 | £37.91 | 5 days | |
| MTL7R0.2L22BMK | 7.1 | 22 | 0.2 | BMK | SIM****H7 | £32.47 | 5 days | |
| MTL7R0.2L30BMK | 7.1 | 30 | 0.2 | BMK | SIM****H7 | £35.97 | 5 days | |
| MTL8R0.2L15BMK | 8.1 | 15 | 0.2 | BMK | SIM****H8 | £32.40 | 5 days | |
| MTL8R0.2L22BMK | 8.1 | 22 | 0.2 | BMK | SIM****H8 | £36.58 | 5 days | |
| MTL8R0.2L35BMK | 8.1 | 35 | 0.2 | BMK | SIM****H8 | £38.87 | 5 days |
