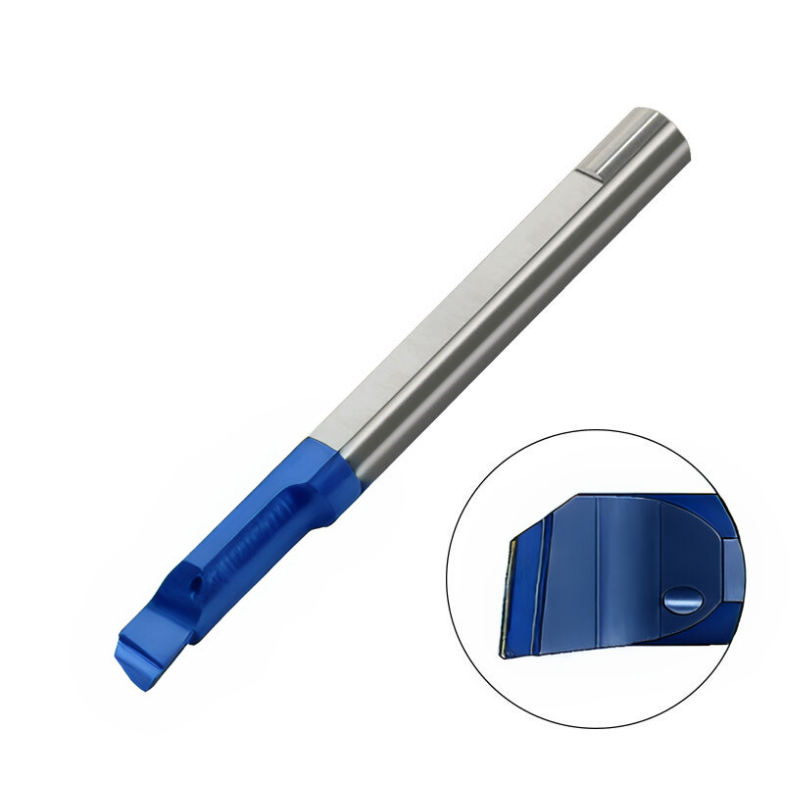

Carmex Carbide Tiny Tool - Boring Bar - MTR - BMK Grade - 5.1mm Minimum Diameter x 22mm Reach x R0.2
SKU:MTR5R0.2L22BMK
The Carmex Carbide Tiny Tool is a compact solid carbide boring bar designed for precision boring and general turning. With a 5.1 mm minimum diameter, a 22 mm reach, and a tight corner radius of R...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring (MTR) |
| Minimum Diameter | 5.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Grade | BMK |
| Holder | SIM****H5 |
£29.89
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool is a compact solid carbide boring bar designed for precision boring and general turning. With a 5.1 mm minimum diameter, a 22 mm reach, and a tight corner radius of R0.2, it’s built to access small bores and deliver clean, accurate finishes in a variety of materials.
This tool family offers two coated grades to match your material and speed goals: the BXC grade features a PVD TiN coating for reliable performance at lower cutting speeds and pairs well with a broad range of stainless steels (ISO P30-P50 / K25-K40); the BMK grade uses a sub-micron structure with a triple PVD coating for exceptionally high heat resistance and smooth cutting (ISO K10-K20). Both options are designed to maximize tool life and consistent results across challenging turning and boring applications.
- Versatile coatings for demanding materials: BXC TiN coating enables dependable cutting at low speeds and works well with stainless steels, expanding your material compatibility (ISO P30-P50 / K25-K40).
- Extreme heat resistance for longer life: BMK grade offers a sub-micron structure with advanced triple PVD coating, delivering outstanding heat tolerance and smoother cutting across materials (ISO K10-K20).
- Compact, precise geometry for tight cavities: 5.1 mm minimum diameter, 22 mm reach, and a precise R0.2 corner radius enable accurate boring and reliable general turning in restricted spaces.
Designed to enhance reliability and workflow, this carbide boring bar provides consistent performance from first cut to finish. The combination of robust substrate, specialized coatings, and precise geometry helps reduce tool wear, improves surface quality, and supports efficient machining across a range of materials.

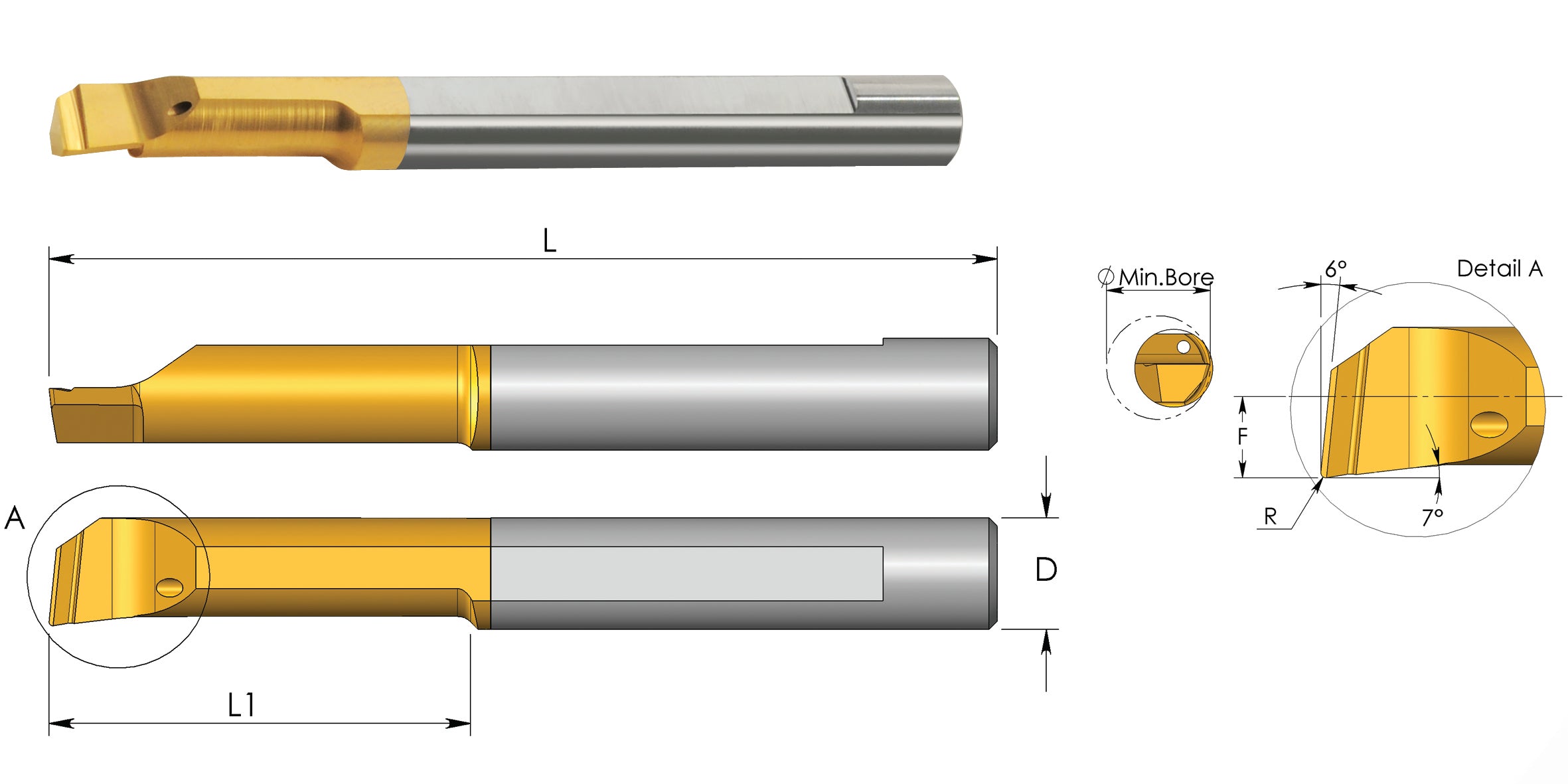

| Application | Boring (MTR) |
| Minimum Diameter | 5.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Grade | BMK |
| Holder | SIM****H5 |
| L | 51 |
| F | 2.1 |
| D | 5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - BMK Grade (MTR)
View full collection →You are viewing MTR5R0.2L22BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR1.2R0L7BMK | 1.2 | 7 | 0 | BMK | SIM****H3 | £25.49 | In Stock | |
| MTR1.2R0L9BMK | 1.2 | 9 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1.5R0.1L6BMK | 1.5 | 6 | 0.1 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1.5R0L6BMK | 1.5 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0.05L4BMK | 1 | 4 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0.05L6BMK | 1 | 6 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0L6BMK | 1 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR2.5R0.1L10BMK | 2.5 | 10 | 0.1 | BMK | SIM****H4 | £23.17 | 5 days | |
| MTR2.5R0.1L15BMK | 2.5 | 15 | 0.1 | BMK | SIM****H4 | £24.30 | In Stock | |
| MTR2.5R0L10BMK | 2.5 | 10 | 0 | BMK | SIM****H4 | £23.17 | In Stock | |
| MTR2R0.05L10BMK | 2.1 | 10 | 0.05 | BMK | SIM****H3 | £20.98 | In Stock | |
| MTR2R0.05L5BMK | 2.1 | 5 | 0.05 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0.15L10BMK | 2.1 | 10 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR2R0.15L5BMK | 2.1 | 5 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR2R0.1L10BMK | 2.1 | 10 | 0.1 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0.1L15BMK | 2.1 | 15 | 0.1 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0L10BMK | 2.1 | 10 | 0 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR3R0.05L10BMK | 3.1 | 10 | 0.05 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR3R0.05L15BMK | 3.1 | 15 | 0.05 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTR3R0.1L10BMK | 3.1 | 10 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTR3R0.1L15BMK | 3.1 | 15 | 0.1 | BMK | SIM****H3 | £25.17 | In Stock | |
| MTR3R0.2L10BMK | 3.1 | 10 | 0.2 | BMK | SIM****H3 | £23.17 | In Stock | |
| MTR3R0.2L15BMK | 3.1 | 15 | 0.2 | BMK | SIM****H3 | £25.17 | In Stock | |
| MTR4R0.05L15BMK | 4.1 | 15 | 0.05 | BMK | SIM****H3 | £25.61 | 5 days | |
| MTR4R0.05L22BMK | 4.1 | 22 | 0.05 | BMK | SIM****H4 | £26.86 | 5 days | |
| MTR4R0.1L10BMK | 4.1 | 10 | 0.1 | BMK | SIM****H4 | £23.71 | In Stock | |
| MTR4R0.1L15BMK | 4.1 | 15 | 0.1 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTR4R0.1L22BMK | 4.1 | 22 | 0.1 | BMK | SIM****H4 | £26.89 | In Stock | |
| MTR4R0.2L10BMK | 4.1 | 10 | 0.2 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTR4R0.2L15BMK | 4.1 | 15 | 0.2 | BMK | SIM****H4 | £25.63 | 5 days | |
| MTR4R0.2L22BMK | 4.1 | 22 | 0.2 | BMK | SIM****H4 | £26.89 | In Stock | |
| MTR4R0.2L30BMK | 4.1 | 30 | 0.2 | BMK | SIM****H4 | £30.48 | 5 days | |
| MTR5R0.05L15BMK | 5.1 | 15 | 0.05 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTR5R0.1L15BMK | 5.1 | 15 | 0.1 | BMK | SIM****H5 | £26.22 | 5 days | |
| MTR5R0.1L22BMK | 5.1 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTR5R0.1L30BMK | 5.1 | 30 | 0.1 | BMK | SIM****H5 | £33.92 | In Stock | |
| MTR5R0.2L10BMK | 5.1 | 10 | 0.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTR5R0.2L15BMK | 5.1 | 15 | 0.2 | BMK | SIM****H5 | £26.20 | In Stock | |
| MTR5R0.2L22BMK Viewing | 5.1 | 22 | 0.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTR5R0.2L30BMK | 5.1 | 30 | 0.2 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTR5R0.2L40BMK | 5.1 | 40 | 0.2 | BMK | SIM****H5 | £33.90 | 5 days | |
| MTR6R0.05L15BMK | 6.1 | 15 | 0.05 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.05L22BMK | 6.1 | 22 | 0.05 | BMK | SIM****H6 | £29.64 | 5 days | |
| MTR6R0.1L15BMK | 6.1 | 15 | 0.1 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.1L22BMK | 6.1 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MTR6R0.2L15BMK | 6.1 | 15 | 0.2 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.2L22BMK | 6.1 | 22 | 0.2 | BMK | SIM****H6 | £30.48 | In Stock | |
| MTR6R0.2L30BMK | 6.1 | 30 | 0.2 | BMK | SIM****H6 | £34.42 | In Stock | |
| MTR6R0.2L35BMK | 6.1 | 35 | 0.2 | BMK | SIM****H6 | £37.02 | In Stock | |
| MTR6R0.2L40BMK | 6.1 | 40 | 0.2 | BMK | SIM****H6 | £37.91 | 5 days | |
| MTR7R0.2L22BMK | 7.1 | 22 | 0.2 | BMK | SIM****H7 | £32.47 | 5 days | |
| MTR7R0.2L30BMK | 7.1 | 30 | 0.2 | BMK | SIM****H7 | £35.94 | In Stock | |
| MTR8R0.2L15BMK | 8.1 | 15 | 0.2 | BMK | SIM****H8 | £32.40 | 5 days | |
| MTR8R0.2L22BMK | 8.1 | 22 | 0.2 | BMK | SIM****H8 | £36.58 | 5 days | |
| MTR8R0.2L35BMK | 8.1 | 35 | 0.2 | BMK | SIM****H8 | £38.87 | 5 days | |
| MTR10R0.2L35BMK | 10.1 | 35 | 0.2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MTL1.2R0L7BMK | 1.2 | 7 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.2R0L9BMK | 1.2 | 9 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.5R0.1L6BMK | 1.5 | 6 | 0.1 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.5R0L6BMK | 1.5 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL10R0.2L35BMK | 10.1 | 35 | 0.2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MTL1R0.05L4BMK | 1 | 4 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1R0.05L6BMK | 1 | 6 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1R0L6BMK | 1 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL2.5R0.1L10BMK | 2.5 | 10 | 0.1 | BMK | SIM****H3 | £23.15 | 5 days | |
| MTL2.5R0.1L15BMK | 2.5 | 15 | 0.1 | BMK | SIM****H3 | £24.31 | 5 days | |
| MTL2.5R0L10BMK | 2.5 | 10 | 0 | BMK | SIM****H3 | £23.15 | 5 days | |
| MTL2R0.05L10BMK | 2.1 | 10 | 0.05 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTL2R0.05L5BMK | 2.1 | 5 | 0.05 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0.15L10BMK | 2.1 | 10 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL2R0.15L5BMK | 2.1 | 5 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL2R0.1L10BMK | 2.1 | 10 | 0.1 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0.1L15BMK | 2.1 | 15 | 0.1 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0L10BMK | 2.1 | 10 | 0 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL3R0.05L10BMK | 3.1 | 10 | 0.05 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL3R0.05L15BMK | 3.1 | 15 | 0.05 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.1L10BMK | 3.1 | 10 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.1L15BMK | 3.1 | 15 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.2L10BMK | 3.1 | 10 | 0.2 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL3R0.2L15BMK | 3.1 | 15 | 0.2 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL4R0.05L15BMK | 4.1 | 15 | 0.05 | BMK | SIM****H3 | £25.61 | 5 days | |
| MTL4R0.05L22BMK | 4.1 | 22 | 0.05 | BMK | SIM****H4 | £26.86 | 5 days | |
| MTL4R0.1L10BMK | 4.1 | 10 | 0.1 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTL4R0.1L15BMK | 4.1 | 15 | 0.1 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTL4R0.1L22BMK | 4.1 | 22 | 0.1 | BMK | SIM****H4 | £26.89 | 5 days | |
| MTL4R0.2L10BMK | 4.1 | 10 | 0.2 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTL4R0.2L15BMK | 4.1 | 15 | 0.2 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTL4R0.2L22BMK | 4.1 | 22 | 0.2 | BMK | SIM****H4 | £26.89 | 5 days | |
| MTL4R0.2L30BMK | 4.1 | 30 | 0.2 | BMK | SIM****H4 | £30.45 | 5 days | |
| MTL5R0.05L15BMK | 5.1 | 15 | 0.05 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.1L15BMK | 5.1 | 15 | 0.1 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.1L22BMK | 5.1 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTL5R0.1L30BMK | 5.1 | 30 | 0.1 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTL5R0.2L10BMK | 5.1 | 10 | 0.2 | BMK | SIM****H5 | £26.18 | 5 days | |
| MTL5R0.2L15BMK | 5.1 | 15 | 0.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.2L22BMK | 5.1 | 22 | 0.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTL5R0.2L30BMK | 5.1 | 30 | 0.2 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTL5R0.2L40BMK | 5.1 | 40 | 0.2 | BMK | SIM****H5 | £33.90 | 5 days | |
| MTL6R0.05L15BMK | 6.1 | 15 | 0.05 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTL6R0.05L22BMK | 6.1 | 22 | 0.05 | BMK | SIM****H6 | £29.65 | 5 days | |
| MTL6R0.1L15BMK | 6.1 | 15 | 0.1 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTL6R0.1L22BMK | 6.1 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MTL6R0.2L15BMK | 6.1 | 15 | 0.2 | BMK | SIM****H6 | £26.30 | 5 days | |
| MTL6R0.2L22BMK | 6.1 | 22 | 0.2 | BMK | SIM****H6 | £25.58 | 5 days | |
| MTL6R0.2L30BMK | 6.1 | 30 | 0.2 | BMK | SIM****H6 | £34.46 | 5 days | |
| MTL6R0.2L35BMK | 6.1 | 35 | 0.2 | BMK | SIM****H6 | £37.02 | 5 days | |
| MTL6R0.2L40BMK | 6.1 | 40 | 0.2 | BMK | SIM****H6 | £37.91 | 5 days | |
| MTL7R0.2L22BMK | 7.1 | 22 | 0.2 | BMK | SIM****H7 | £32.47 | 5 days | |
| MTL7R0.2L30BMK | 7.1 | 30 | 0.2 | BMK | SIM****H7 | £35.97 | 5 days | |
| MTL8R0.2L15BMK | 8.1 | 15 | 0.2 | BMK | SIM****H8 | £32.40 | 5 days | |
| MTL8R0.2L22BMK | 8.1 | 22 | 0.2 | BMK | SIM****H8 | £36.58 | 5 days | |
| MTL8R0.2L35BMK | 8.1 | 35 | 0.2 | BMK | SIM****H8 | £38.87 | 5 days |
