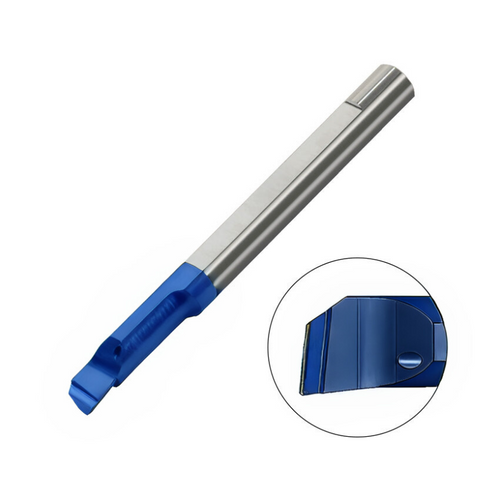

Carmex Carbide Tiny Tool - Boring Bar - MTL - BMK Grade - 5.1mm Minimum Diameter x 15mm Reach x R0.05 (Left Hand)
SKU:MTL5R0.05L15BMK
The Carmex Carbide Tiny Tool is a compact, solid carbide boring bar designed for precision in tight spaces. With a 5.1 mm minimum diameter, 15 mm reach, and left-hand geometry (R0.05), it excels ...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring (MTL) |
| Minimum Diameter | 5.1 |
| Reach (L1) | 15 |
| Radius (R) | 0.05 |
| Grade | BMK |
| Holder | SIM****H5 |
£26.20
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool is a compact, solid carbide boring bar designed for precision in tight spaces. With a 5.1 mm minimum diameter, 15 mm reach, and left-hand geometry (R0.05), it excels at small-diameter boring and can also handle general turning tasks. Built for reliability, this tool is ideal for machinists, engineers, and hobbyists who need consistent holes in challenging workpieces.
- BMK grade with sub-micron coating: Sub-micron carbide with advanced PVD triple coating delivers extremely high heat resistance and smooth cutting for maximum performance across all materials.
- BXC TiN coating for low cutting speeds: PVD TiN coated grade optimized for low cutting speeds and a wide range of stainless steels (ISO P30-P50 / K25-K40), providing reliable wear resistance and longer tool life.
- Compact geometry: 5.1 mm min diameter, 15 mm reach, Left Hand: Designed for tight bores and confined spaces, the small diameter and extended reach with left-hand geometry enable precise, controlled cuts in challenging setups.
This tool pairings—BMK for high-heat, all-material versatility and BXC for stainless steel efficiency—make the Carmex Tiny Tool a dependable choice for demanding jobs. Its compact size reduces setup time, lowers the risk of chatter, and supports repeatable hole sizes, helping you improve workflow, finish quality, and throughput in a wide range of turning and boring applications.
| Application | Boring (MTL) |
| Minimum Diameter | 5.1 |
| Reach (L1) | 15 |
| Radius (R) | 0.05 |
| Grade | BMK |
| Holder | SIM****H5 |
| L | 51 |
| F | 2.1 |
| D | 5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - BMK Grade (MTR)
View full collection →You are viewing MTL5R0.05L15BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR1.2R0L7BMK | 1.2 | 7 | 0 | BMK | SIM****H3 | £25.49 | In Stock | |
| MTR1.2R0L9BMK | 1.2 | 9 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1.5R0.1L6BMK | 1.5 | 6 | 0.1 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1.5R0L6BMK | 1.5 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0.05L4BMK | 1 | 4 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0.05L6BMK | 1 | 6 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR1R0L6BMK | 1 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTR2.5R0.1L10BMK | 2.5 | 10 | 0.1 | BMK | SIM****H4 | £23.17 | 5 days | |
| MTR2.5R0.1L15BMK | 2.5 | 15 | 0.1 | BMK | SIM****H4 | £24.30 | In Stock | |
| MTR2.5R0L10BMK | 2.5 | 10 | 0 | BMK | SIM****H4 | £23.17 | In Stock | |
| MTR2R0.05L10BMK | 2.1 | 10 | 0.05 | BMK | SIM****H3 | £20.98 | In Stock | |
| MTR2R0.05L5BMK | 2.1 | 5 | 0.05 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0.15L10BMK | 2.1 | 10 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR2R0.15L5BMK | 2.1 | 5 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR2R0.1L10BMK | 2.1 | 10 | 0.1 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0.1L15BMK | 2.1 | 15 | 0.1 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR2R0L10BMK | 2.1 | 10 | 0 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTR3R0.05L10BMK | 3.1 | 10 | 0.05 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTR3R0.05L15BMK | 3.1 | 15 | 0.05 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTR3R0.1L10BMK | 3.1 | 10 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTR3R0.1L15BMK | 3.1 | 15 | 0.1 | BMK | SIM****H3 | £25.17 | In Stock | |
| MTR3R0.2L10BMK | 3.1 | 10 | 0.2 | BMK | SIM****H3 | £23.17 | In Stock | |
| MTR3R0.2L15BMK | 3.1 | 15 | 0.2 | BMK | SIM****H3 | £25.17 | In Stock | |
| MTR4R0.05L15BMK | 4.1 | 15 | 0.05 | BMK | SIM****H3 | £25.61 | 5 days | |
| MTR4R0.05L22BMK | 4.1 | 22 | 0.05 | BMK | SIM****H4 | £26.86 | 5 days | |
| MTR4R0.1L10BMK | 4.1 | 10 | 0.1 | BMK | SIM****H4 | £23.71 | In Stock | |
| MTR4R0.1L15BMK | 4.1 | 15 | 0.1 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTR4R0.1L22BMK | 4.1 | 22 | 0.1 | BMK | SIM****H4 | £26.89 | In Stock | |
| MTR4R0.2L10BMK | 4.1 | 10 | 0.2 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTR4R0.2L15BMK | 4.1 | 15 | 0.2 | BMK | SIM****H4 | £25.63 | 5 days | |
| MTR4R0.2L22BMK | 4.1 | 22 | 0.2 | BMK | SIM****H4 | £26.89 | In Stock | |
| MTR4R0.2L30BMK | 4.1 | 30 | 0.2 | BMK | SIM****H4 | £30.48 | 5 days | |
| MTR5R0.05L15BMK | 5.1 | 15 | 0.05 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTR5R0.1L15BMK | 5.1 | 15 | 0.1 | BMK | SIM****H5 | £26.22 | 5 days | |
| MTR5R0.1L22BMK | 5.1 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTR5R0.1L30BMK | 5.1 | 30 | 0.1 | BMK | SIM****H5 | £33.92 | In Stock | |
| MTR5R0.2L10BMK | 5.1 | 10 | 0.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTR5R0.2L15BMK | 5.1 | 15 | 0.2 | BMK | SIM****H5 | £26.20 | In Stock | |
| MTR5R0.2L22BMK | 5.1 | 22 | 0.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTR5R0.2L30BMK | 5.1 | 30 | 0.2 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTR5R0.2L40BMK | 5.1 | 40 | 0.2 | BMK | SIM****H5 | £33.90 | 5 days | |
| MTR6R0.05L15BMK | 6.1 | 15 | 0.05 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.05L22BMK | 6.1 | 22 | 0.05 | BMK | SIM****H6 | £29.64 | 5 days | |
| MTR6R0.1L15BMK | 6.1 | 15 | 0.1 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.1L22BMK | 6.1 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MTR6R0.2L15BMK | 6.1 | 15 | 0.2 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.2L22BMK | 6.1 | 22 | 0.2 | BMK | SIM****H6 | £30.48 | In Stock | |
| MTR6R0.2L30BMK | 6.1 | 30 | 0.2 | BMK | SIM****H6 | £34.42 | In Stock | |
| MTR6R0.2L35BMK | 6.1 | 35 | 0.2 | BMK | SIM****H6 | £37.02 | In Stock | |
| MTR6R0.2L40BMK | 6.1 | 40 | 0.2 | BMK | SIM****H6 | £37.91 | 5 days | |
| MTR7R0.2L22BMK | 7.1 | 22 | 0.2 | BMK | SIM****H7 | £32.47 | 5 days | |
| MTR7R0.2L30BMK | 7.1 | 30 | 0.2 | BMK | SIM****H7 | £35.94 | In Stock | |
| MTR8R0.2L15BMK | 8.1 | 15 | 0.2 | BMK | SIM****H8 | £32.40 | 5 days | |
| MTR8R0.2L22BMK | 8.1 | 22 | 0.2 | BMK | SIM****H8 | £36.58 | 5 days | |
| MTR8R0.2L35BMK | 8.1 | 35 | 0.2 | BMK | SIM****H8 | £38.87 | 5 days | |
| MTR10R0.2L35BMK | 10.1 | 35 | 0.2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MTL1.2R0L7BMK | 1.2 | 7 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.2R0L9BMK | 1.2 | 9 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.5R0.1L6BMK | 1.5 | 6 | 0.1 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1.5R0L6BMK | 1.5 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL10R0.2L35BMK | 10.1 | 35 | 0.2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MTL1R0.05L4BMK | 1 | 4 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1R0.05L6BMK | 1 | 6 | 0.05 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL1R0L6BMK | 1 | 6 | 0 | BMK | SIM****H3 | £25.49 | 5 days | |
| MTL2.5R0.1L10BMK | 2.5 | 10 | 0.1 | BMK | SIM****H3 | £23.15 | 5 days | |
| MTL2.5R0.1L15BMK | 2.5 | 15 | 0.1 | BMK | SIM****H3 | £24.31 | 5 days | |
| MTL2.5R0L10BMK | 2.5 | 10 | 0 | BMK | SIM****H3 | £23.15 | 5 days | |
| MTL2R0.05L10BMK | 2.1 | 10 | 0.05 | BMK | SIM****H3 | £24.28 | 5 days | |
| MTL2R0.05L5BMK | 2.1 | 5 | 0.05 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0.15L10BMK | 2.1 | 10 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL2R0.15L5BMK | 2.1 | 5 | 0.15 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL2R0.1L10BMK | 2.1 | 10 | 0.1 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0.1L15BMK | 2.1 | 15 | 0.1 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL2R0L10BMK | 2.1 | 10 | 0 | BMK | SIM****H3 | £24.27 | 5 days | |
| MTL3R0.05L10BMK | 3.1 | 10 | 0.05 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL3R0.05L15BMK | 3.1 | 15 | 0.05 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.1L10BMK | 3.1 | 10 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.1L15BMK | 3.1 | 15 | 0.1 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL3R0.2L10BMK | 3.1 | 10 | 0.2 | BMK | SIM****H3 | £23.17 | 5 days | |
| MTL3R0.2L15BMK | 3.1 | 15 | 0.2 | BMK | SIM****H3 | £25.17 | 5 days | |
| MTL4R0.05L15BMK | 4.1 | 15 | 0.05 | BMK | SIM****H3 | £25.61 | 5 days | |
| MTL4R0.05L22BMK | 4.1 | 22 | 0.05 | BMK | SIM****H4 | £26.86 | 5 days | |
| MTL4R0.1L10BMK | 4.1 | 10 | 0.1 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTL4R0.1L15BMK | 4.1 | 15 | 0.1 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTL4R0.1L22BMK | 4.1 | 22 | 0.1 | BMK | SIM****H4 | £26.89 | 5 days | |
| MTL4R0.2L10BMK | 4.1 | 10 | 0.2 | BMK | SIM****H4 | £23.71 | 5 days | |
| MTL4R0.2L15BMK | 4.1 | 15 | 0.2 | BMK | SIM****H4 | £25.61 | 5 days | |
| MTL4R0.2L22BMK | 4.1 | 22 | 0.2 | BMK | SIM****H4 | £26.89 | 5 days | |
| MTL4R0.2L30BMK | 4.1 | 30 | 0.2 | BMK | SIM****H4 | £30.45 | 5 days | |
| MTL5R0.05L15BMK Viewing | 5.1 | 15 | 0.05 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.1L15BMK | 5.1 | 15 | 0.1 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.1L22BMK | 5.1 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTL5R0.1L30BMK | 5.1 | 30 | 0.1 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTL5R0.2L10BMK | 5.1 | 10 | 0.2 | BMK | SIM****H5 | £26.18 | 5 days | |
| MTL5R0.2L15BMK | 5.1 | 15 | 0.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MTL5R0.2L22BMK | 5.1 | 22 | 0.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MTL5R0.2L30BMK | 5.1 | 30 | 0.2 | BMK | SIM****H5 | £33.92 | 5 days | |
| MTL5R0.2L40BMK | 5.1 | 40 | 0.2 | BMK | SIM****H5 | £33.90 | 5 days | |
| MTL6R0.05L15BMK | 6.1 | 15 | 0.05 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTL6R0.05L22BMK | 6.1 | 22 | 0.05 | BMK | SIM****H6 | £29.65 | 5 days | |
| MTL6R0.1L15BMK | 6.1 | 15 | 0.1 | BMK | SIM****H6 | £26.91 | 5 days | |
| MTL6R0.1L22BMK | 6.1 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MTL6R0.2L15BMK | 6.1 | 15 | 0.2 | BMK | SIM****H6 | £26.30 | 5 days | |
| MTL6R0.2L22BMK | 6.1 | 22 | 0.2 | BMK | SIM****H6 | £25.58 | 5 days | |
| MTL6R0.2L30BMK | 6.1 | 30 | 0.2 | BMK | SIM****H6 | £34.46 | 5 days | |
| MTL6R0.2L35BMK | 6.1 | 35 | 0.2 | BMK | SIM****H6 | £37.02 | 5 days | |
| MTL6R0.2L40BMK | 6.1 | 40 | 0.2 | BMK | SIM****H6 | £37.91 | 5 days | |
| MTL7R0.2L22BMK | 7.1 | 22 | 0.2 | BMK | SIM****H7 | £32.47 | 5 days | |
| MTL7R0.2L30BMK | 7.1 | 30 | 0.2 | BMK | SIM****H7 | £35.97 | 5 days | |
| MTL8R0.2L15BMK | 8.1 | 15 | 0.2 | BMK | SIM****H8 | £32.40 | 5 days | |
| MTL8R0.2L22BMK | 8.1 | 22 | 0.2 | BMK | SIM****H8 | £36.58 | 5 days | |
| MTL8R0.2L35BMK | 8.1 | 35 | 0.2 | BMK | SIM****H8 | £38.87 | 5 days |
