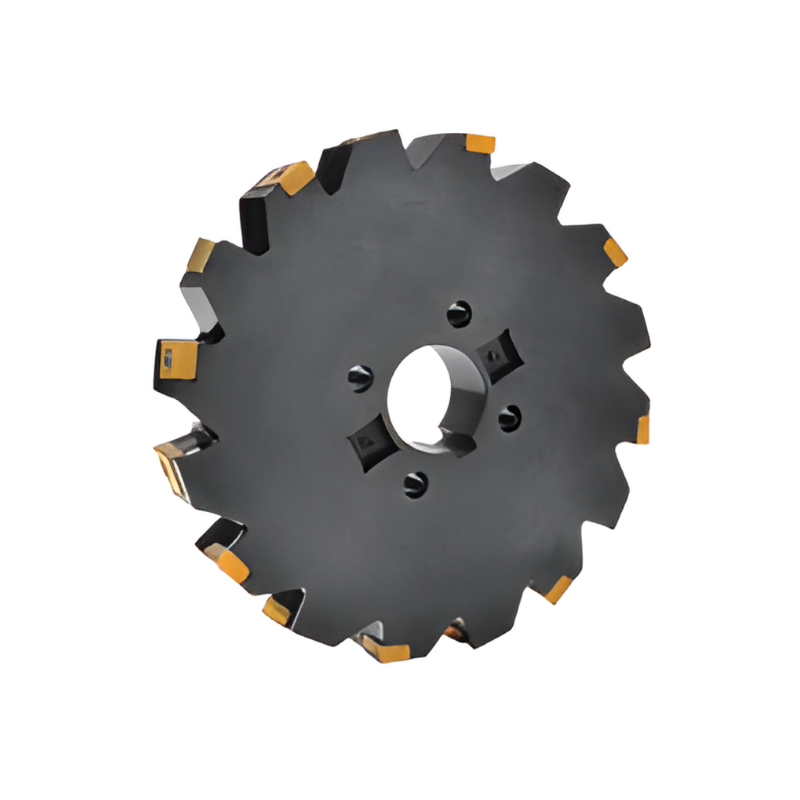

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 160mm Diameter 22mm Insert Thickness 46.5mm Cutting Depth 12 Teeth (CEL-160-22-32)

Meet the Y.T. Indexable Disc Milling Cutter for CNGX Inserts — a durable, insert-replaceable milling solution designed for precision slotting and high-speed applications. Built to keep you cutting, it’s ideal for shops that value quick insert changes, reliable clamping, and clean chip control.

• Model: CEL-160-22-32
• Diameter: 160 mm
• Insert Thickness: 22 mm
• Cutting Depth: 46.5 mm
• Teeth: 12
• Insert Compatibility: Indexable carbide inserts compatible with over 10 insert types
• Clamp Design: Safe and reliable insert clamping design
• Chip Evacuation: Patented chip evacuation design to prevent groove blockages
• Max RPM: Certified safe operation up to 17,200 RPM
• Series Range: Available in standard insert thicknesses from 1.4 mm to 5.5 mm; cutter diameters span 50–300 mm across the full series

This disc milling cutter is engineered for efficient material removal with a robust clamping system that reduces insert downtime. The extended 46.5 mm cutting depth and 12-tooth configuration deliver steady, predictable progress in demanding milling tasks, while the broad insert compatibility lets you choose from multiple carbide inserts without changing the cutter body. The patented chip evacuation pathway helps maintain groove cleanliness, minimizing downtime from chip buildup and improving surface finish. Whether you’re replacing worn inserts or optimizing for different materials, this cutter provides reliable performance within a compact 160 mm footprint.
