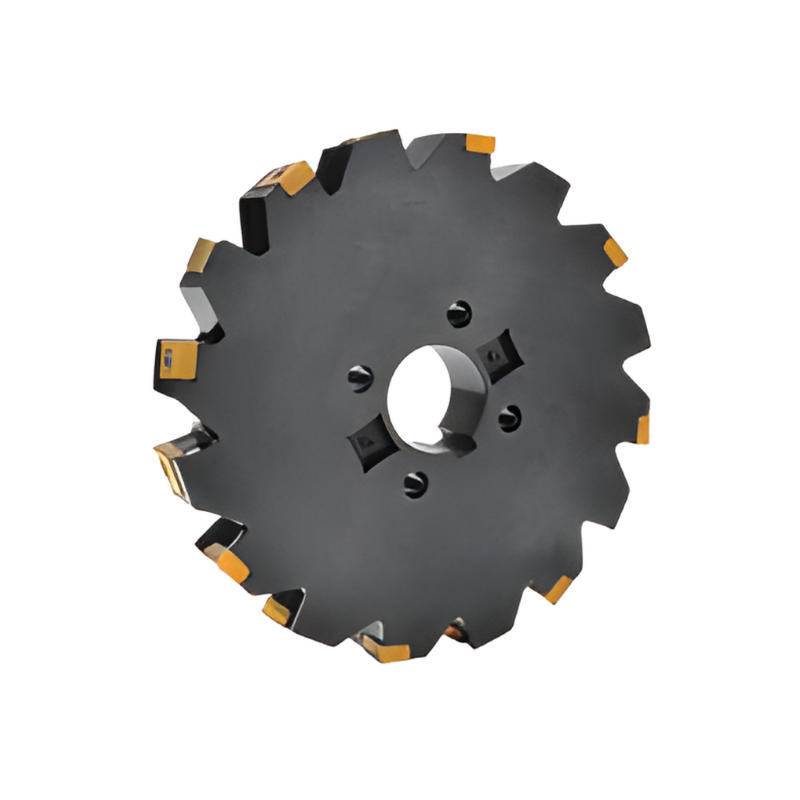

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 250mm Diameter 30mm Insert Thickness 79mm Cutting Depth 16 Teeth (CEL-250-30-40)

Y.T. Indexable Disc Milling Cutter for CNGX Inserts (CEL-250-30-40) is a high‑precision, insert‑based milling tool designed for reliable slotting and grooving with a 250 mm diameter, 30 mm insert thickness, 79 mm cutting depth, and 16 teeth. Certified for demanding speeds, it delivers secure performance up to 17,200 RPM with a safe insert clamping design.

• Diameter: 250 mm
• Insert thickness: 30 mm
• Cutting depth: 79 mm
• Teeth: 16
• Insert compatibility: Indexable carbide inserts; compatible with over 10 insert types
• Clamping design: Safe and reliable insert clamping
• Max RPM: Certified safe operation up to 17,200 RPM
• Chip evacuation: Patented chip evacuation design prevents blockage in the groove
• Series range: Part of a family with diameters 50–300 mm and standard thicknesses 1.4–5.5 mm

This cutter offers the advantage of replaceable cutting edges, reducing downtime and tool costs since you can refresh sharpness by swapping inserts rather than the entire cutter. The universal insert compatibility and robust clamping contribute to stable cuts and consistent finishes across multiple applications, while the patented chip evacuation helps maintain smooth material removal and reliable performance in deep slotting tasks.
