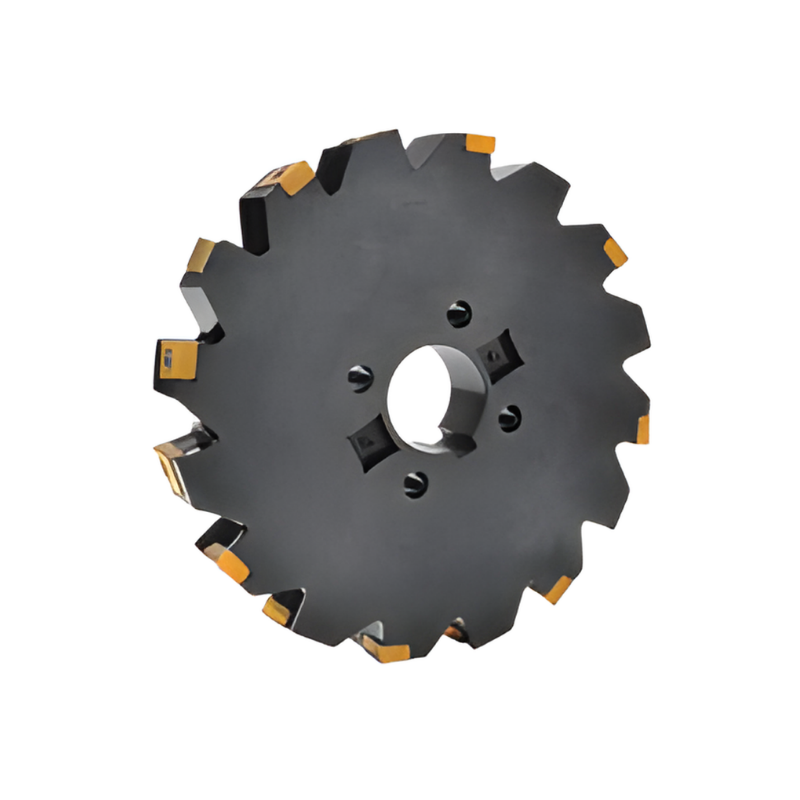

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 160mm Diameter 25mm Insert Thickness 46.5mm Cutting Depth 12 Teeth (CEL-160-25-32)

The Y.T. Indexable Disc Milling Cutter for CNGX Inserts delivers reliable, precision milling with the convenience of an indexable insert system. Designed for demanding operations, it features a 160 mm diameter, 25 mm insert thickness, 46.5 mm cutting depth, and 12 teeth to deliver stable, productive cuts.

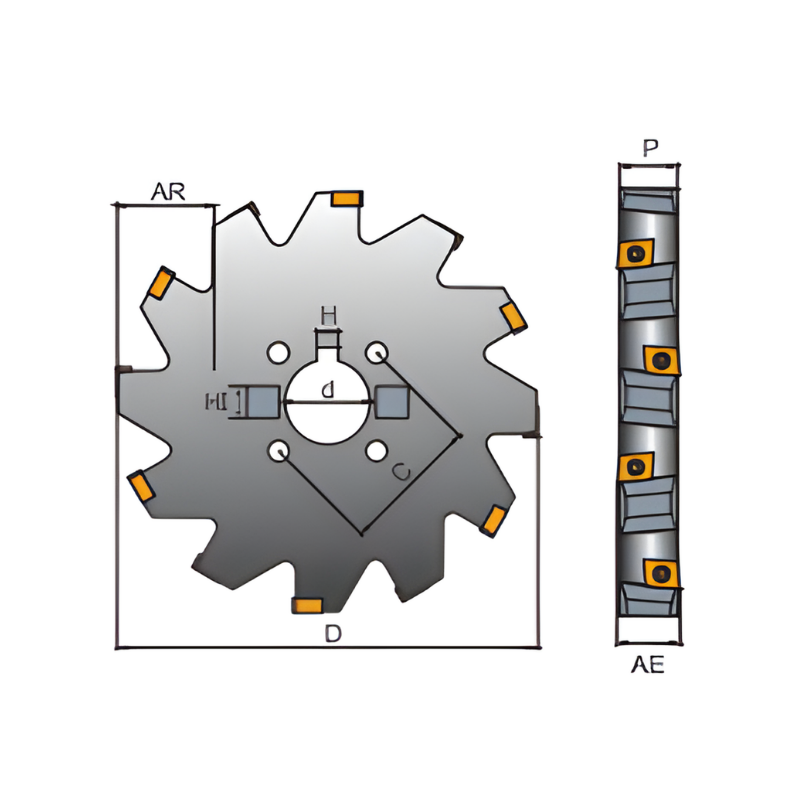

• Diameter: 160 mm
• Insert thickness: 25 mm
• Cutting depth: 46.5 mm
• Teeth: 12
• Insert system: Indexable carbide inserts for easy replacement; compatible with over 10 insert types
• Clamping design: Safe and reliable insert clamping
• Speed rating: Certified to operate securely up to 17,200 RPM (Swedish customer validation)
• Chip evacuation: Patented design prevents chip blockages in the groove
• Series compatibility: Part of a broader indexable disc milling family; diameter range 50–300 mm; standard insert thickness options 1.4–5.5 mm

This cutter is engineered to minimize downtime with straightforward insert replacement and a secure clamping system, ensuring repeatable performance across jobs. Its high-speed capability, combined with an effective chip evacuation design, helps reduce heat and re-cutting for cleaner finishes. Flexible insert compatibility lets you choose wear-resistant options and cost-effective solutions, while the 46.5 mm cutting depth and 12-tooth geometry deliver efficient material removal in a single pass.
