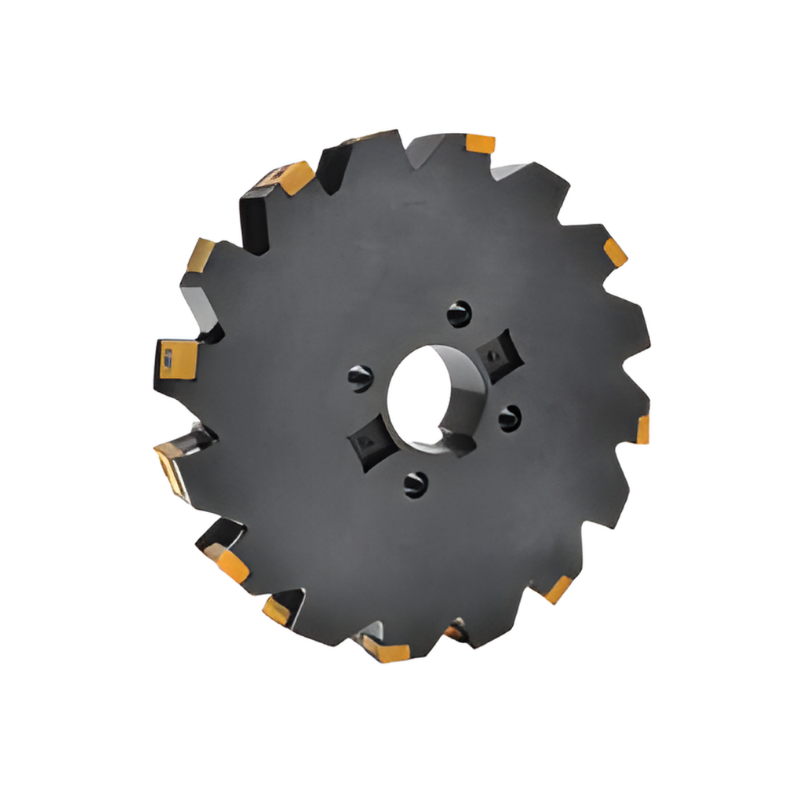

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 250mm Diameter 14mm Insert Thickness 79mm Cutting Depth 20 Teeth (CEL-250-14-40)

The Y.T. Indexable Disc Milling Cutter is a precision tool designed for high-speed grooving and disc milling with CNGX inserts. Built for reliability in CNC environments, this 250 mm cutter features a robust clamping design, quick insert replacement, and efficient chip evacuation for nonstop production.

• Diameter: 250 mm
• Insert thickness: 14 mm
• Cutting depth: 79 mm
• Teeth: 20
• Insert type compatibility: Uses indexable carbide inserts; compatible with over 10 insert types
• Insert clamping design: Safe and reliable insert clamping, certified by Swedish customers to function securely up to 17,200 RPM
• Chip evacuation: Patented design prevents chip blockages within the groove during operation
• Series versatility: Part of a broader family with cutter diameters from 50 to 300 mm and standard thicknesses from 1.4 to 5.5 mm

The tool delivers consistent, repeatable results with easy maintenance: swap worn inserts quickly to minimize downtime, and rely on the reinforced clamping and advanced chip evacuation to sustain productive cutting cycles. Its 20-tooth geometry and 79 mm cutting depth strike a balance between aggressive material removal and a stable finish, making it well-suited for demanding applications that require precise groove and slot milling with CNGX inserts.
