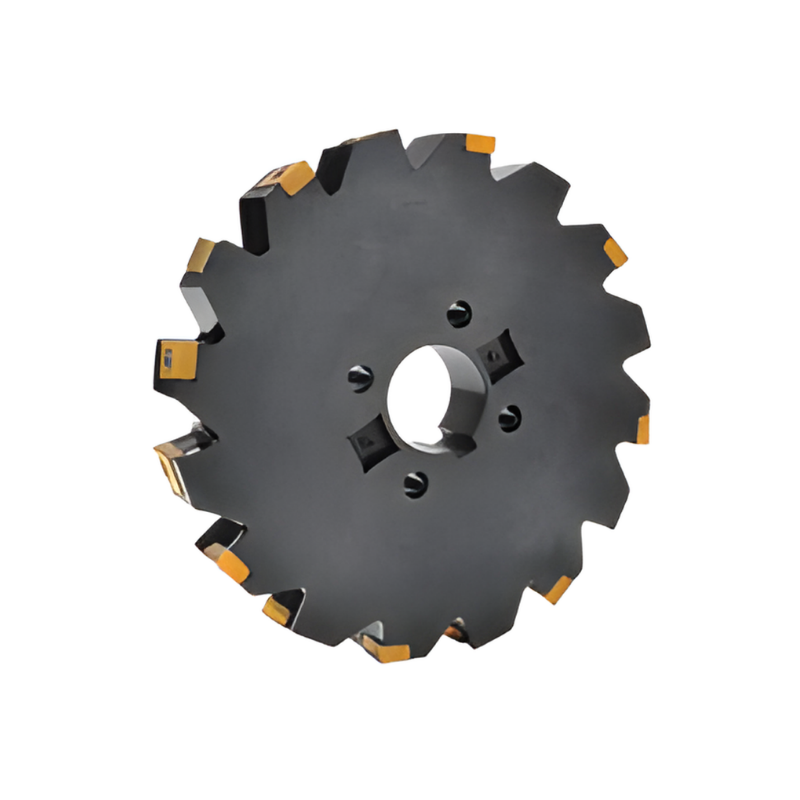

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 250mm Diameter 16mm Insert Thickness 79mm Cutting Depth 20 Teeth (CEL-250-16-40)

The Y.T. Indexable Disc Milling Cutter for CNGX inserts is a 250 mm diameter, 20-tooth slitting saw with a 16 mm insert thickness and a 79 mm cutting depth. Model CEL-250-16-40 is built for high-speed milling with interchangeable carbide inserts and a secure insert clamping design.

• Diameter: 250 mm
• Insert Thickness: 16 mm
• Cutting Depth: 79 mm
• Teeth: 20
• Model: CEL-250-16-40
• Insert Compatibility: Compatible with indexable carbide inserts, including CNGX inserts, and supports over 10 insert types
• Insert Clamping: Safe and reliable insert clamping design
• Chip Evacuation: Patented design prevents chip blockages in the groove during operation
• Max RPM: 17,200 RPM (certified by Swedish customers)

With interchangeable carbide inserts, you can quickly replace worn teeth, minimizing downtime and tooling costs. The secure clamping and patented chip-evacuation system maintain cutting efficiency by preventing chip buildup, helping you achieve clean slots and consistent finishes. The cutter’s broad insert compatibility gives you flexibility across materials and applications, while the high-speed capability up to 17,200 RPM supports fast material removal without sacrificing accuracy. Designed as a durable, ready-to-use solution for grooving and slitting tasks, it simplifies tool inventory with a robust 250 mm platform and 16 mm insert thickness.
