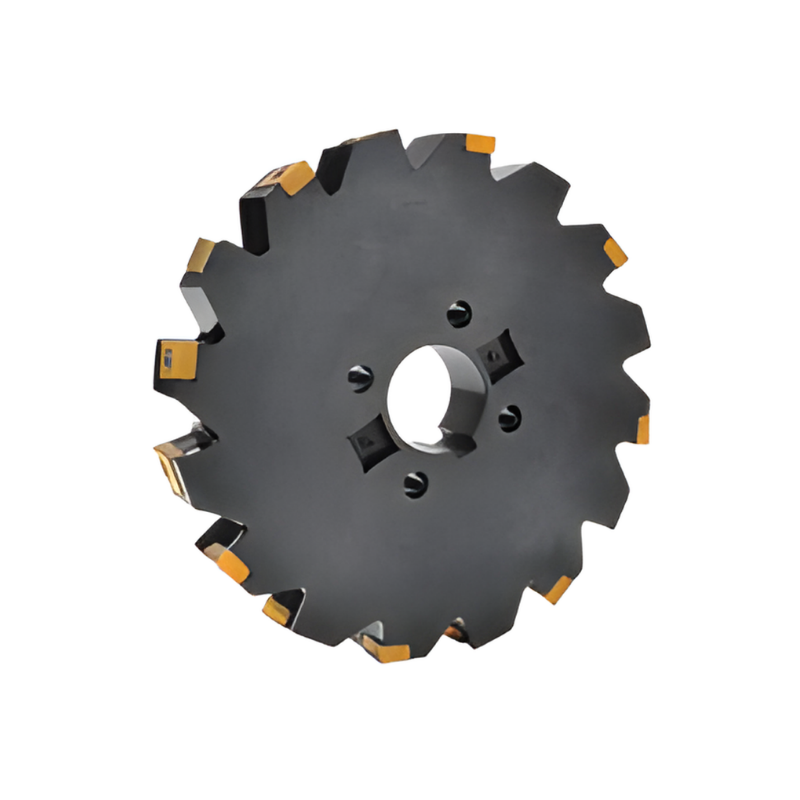

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 200mm Diameter 25mm Insert Thickness 54mm Cutting Depth 12 Teeth (CEL-200-25-40)

The Y.T. Indexable Disc Milling Cutter is a high-performance, insert-based solution for CNC milling with CNGX inserts. This 200 mm diameter cutter features 25 mm insert thickness, 54 mm cutting depth, and 12 teeth for efficient, precise stock removal.

• Diameter: 200 mm
• Insert Thickness: 25 mm
• Cutting Depth: 54 mm
• Teeth: 12
• Insert Compatibility: Indexable carbide inserts; compatible with over 10 insert types
• Insert Clamping Design: Safe and reliable insert clamping for secure operation
• Maximum Speed: 17,200 RPM (certified by Swedish customers)
• Chip Evacuation: Patented design to prevent chip blockages within the groove
• Standard Insert Thickness Range: 1.4–5.5 mm
• Series Diameter Range: 50–300 mm across the entire series

This cutter delivers efficient, consistent stock removal with a durable carbide insert system. The indexable design enables quick insert changes, reducing downtime while maintaining precise, stable cuts. The integrated chip evacuation minimizes downtime from chip buildup, and the broad insert compatibility provides flexibility for different materials and applications. With high-speed capability and a reliable clamping mechanism, it’s a practical choice for professional metalworking shops seeking reliability and versatility in disc milling.
