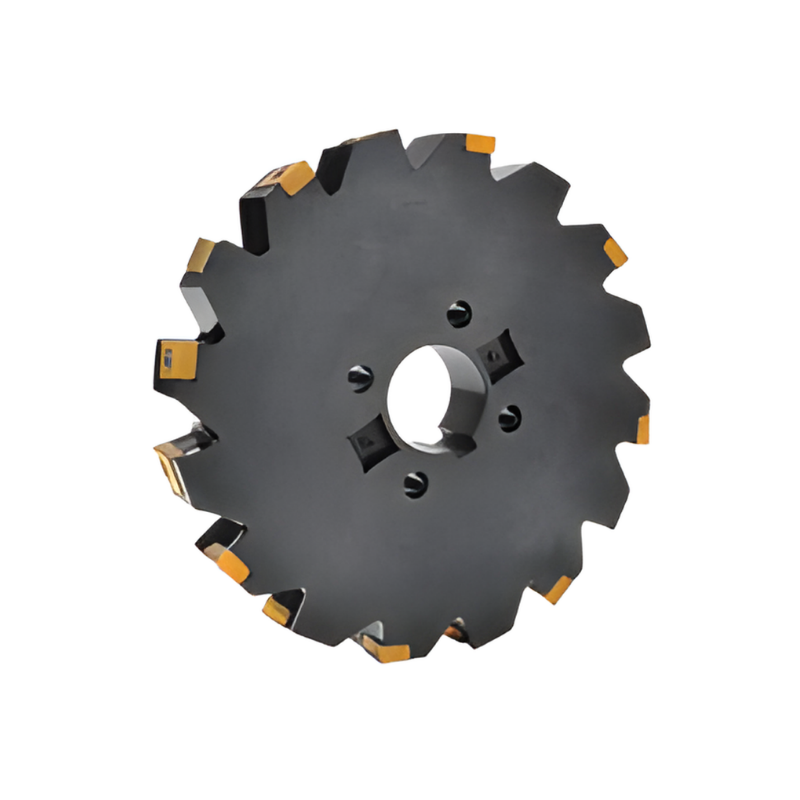

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 200mm Diameter 20mm Insert Thickness 54mm Cutting Depth 16 Teeth (CEL-200-20-40)

The Y.T. Indexable Disc Milling Cutter for CNGX Inserts is a robust, rebuildable slitting saw designed for precision milling. With a 200 mm diameter, 16 teeth, and 20 mm insert thickness, it delivers dependable performance for demanding applications.

• Diameter: 200 mm
• Teeth: 16
• Insert thickness: 20 mm
• Cutting depth: 54 mm
• Insert clamping design: safe and reliable insert mounting for secure operation
• Maximum operating speed: certified to function securely up to 17,200 RPM
• Chip evacuation design: patented system prevents chip blockages within the groove during cutting
• Insert type: uses indexable carbide inserts for easy replacement
• Insert compatibility: compatible with over 10 different insert types
• Standard thickness options (series): available in 1.4 mm to 5.5 mm thickness across the series
• Series diameter range: cutter diameter spans 50 mm to 300 mm across the entire series

This cutter is designed to minimize downtime and maximize tool life. The proven insert clamping ensures secure performance at high speeds, while the patented chip evacuation keeps grooves clear for uninterrupted cutting. Swap worn inserts quickly without replacing the entire cutter, and choose from a wide range of compatible inserts to match material and finish requirements. The result is precise, consistent milling with flexible options to fit your production needs.
