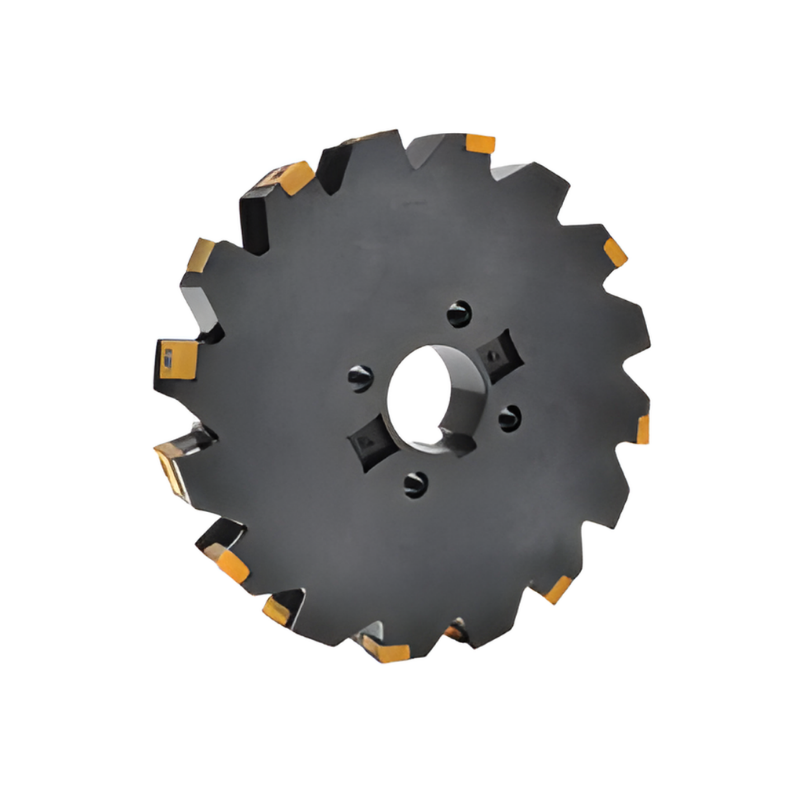

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 250mm Diameter 25mm Insert Thickness 79mm Cutting Depth 16 Teeth (CEL-250-25-40)

Y.T. Indexable Disc Milling Cutter for CNGX Inserts is built for reliable, high-speed milling with an insert-based cutting system. This model features a 250 mm diameter, 16 teeth, 79 mm cutting depth, and 25 mm insert thickness, delivering dependable performance at speeds up to 17,200 RPM.

• Diameter: 250 mm
• Teeth: 16
• Insert Thickness: 25 mm
• Cutting Depth: 79 mm
• Max Rotation Speed: 17,200 RPM
• Clamping Design: Safe and reliable insert clamping design
• Chip Evacuation: Patented design prevents chip blockages within the groove
• Insert Compatibility: Uses indexable carbide inserts; compatible with over 10 insert types
• Series Coverage: Cutter diameter range across the series from 50 mm to 300 mm
• Product Code: CEL-250-25-40

The tool is designed to minimize downtime and maintenance while maximizing cutting efficiency. With a safe, secure insert clamping system and a dedicated chip evacuation path, it maintains steady performance even in tough milling tasks. The indexable carbide inserts simplify replacements and extend tool life by allowing wear to be addressed by swapping inserts rather than the entire cutter, while compatibility with multiple insert types provides flexible options for different materials and applications. The combination of a robust 250 mm body, 16-teeth geometry, and a 79 mm depth of cut offers a balanced, predictable cutting experience with consistent results.
