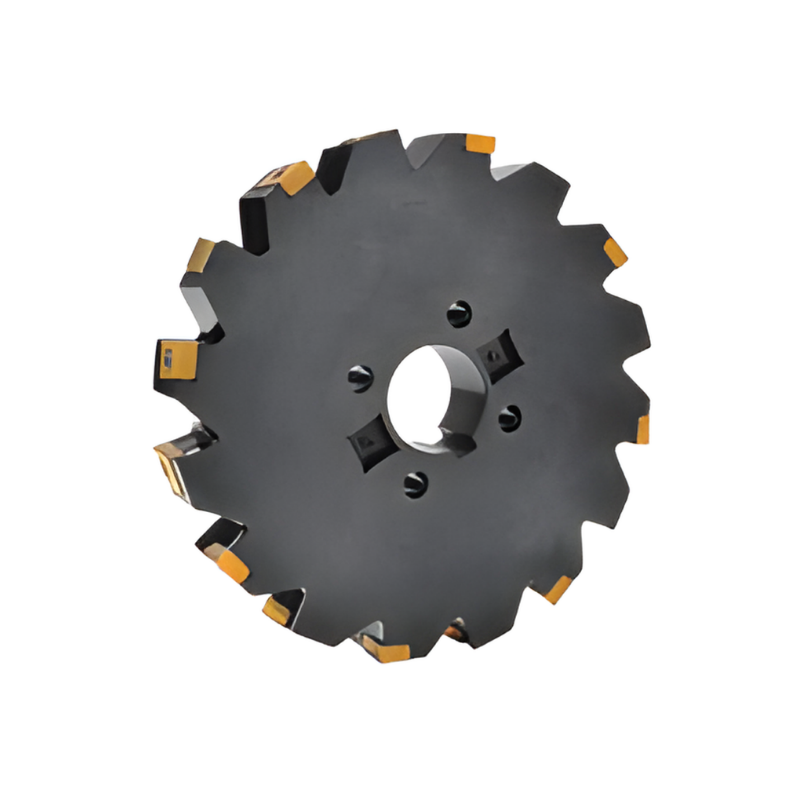

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 200mm Diameter 16mm Insert Thickness 54mm Cutting Depth 16 Teeth (CEL-200-16-40)

The Y.T. Indexable Disc Milling Cutter for CNGX inserts delivers robust, precision milling with interchangeable carbide inserts. Designed for a 200 mm diameter, 16-teeth configuration, and a 54 mm cutting depth, it combines reliability with versatility for demanding slitting and milling tasks.

• Diameter: 200 mm
• Teeth: 16 teeth
• Insert Thickness: 16 mm
• Cutting Depth: 54 mm
• Insert System: Indexable carbide inserts; compatible with over 10 insert types
• Compatibility: Designed for CNGX inserts
• Insert Clamping Design: Safe and reliable insert clamping
• High-Speed Capability: Certified by Swedish customers to operate securely at a maximum rotation speed of 17,200 RPM
• Chip Evacuation: Patented chip-evacuation design prevents chip blockages within the groove
• Series Range: Part of a broader family with cutter diameters from 50 mm to 300 mm across the series
• Standard Insert Thickness Options: Available in standard thicknesses from 1.4 mm to 5.5 mm

Designed for reliability in busy production environments, this cutter supports quick insert changes to minimize downtime and maintenance costs. The indexable carbide inserts allow predictable wear and easy replacement, while compatibility with more than 10 insert types gives versatility across materials and processes. The patented chip-evacuation design keeps the groove clear, reducing the risk of blockages and ensuring smooth cuts. Certified for safe operation at speeds up to 17,200 RPM, it helps you maintain tight tolerances and clean finishes. The 200 mm diameter and 54 mm cutting depth offer a balance of rigidity and reach for precise slitting and milling on larger workpieces.
