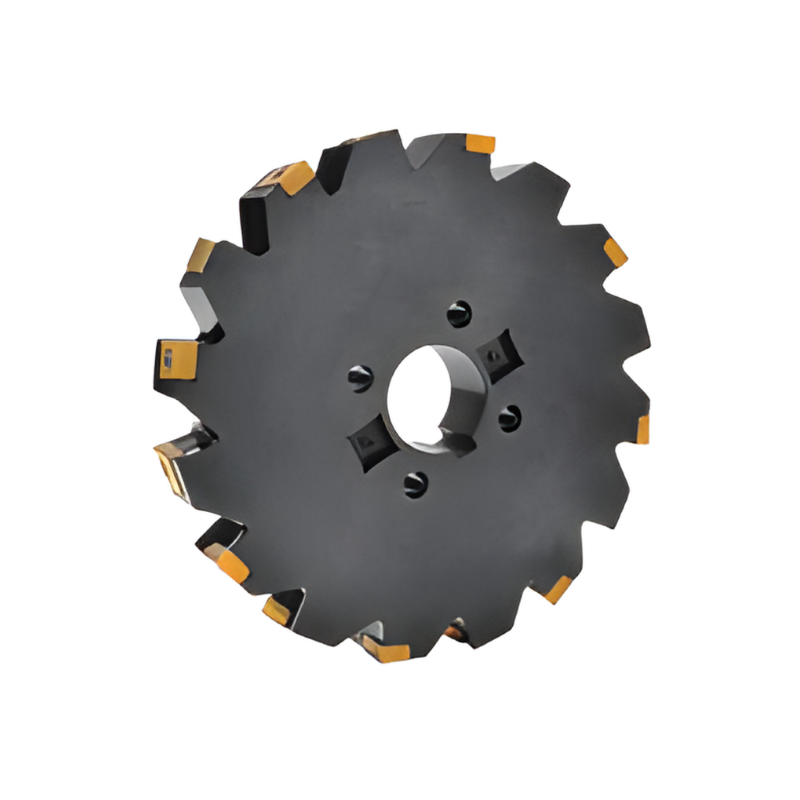

Y.T. Indexable Disc Milling Cutter For CNGX Inserts - 200mm Diameter 18mm Insert Thickness 54mm Cutting Depth 16 Teeth (CEL-200-18-40)

The Y.T. Indexable Disc Milling Cutter is a precision tool designed for high-speed milling with CNGX inserts. Built for professionals who demand durability and quick insert replacement, it combines a robust clamping system with adaptable performance.

• Diameter: 200 mm
• Insert Thickness: 18 mm
• Cutting Depth: 54 mm
• Teeth: 16
• Insert Compatibility: Indexable carbide inserts compatible with over 10 insert types
• Clamping Design: Safe and reliable insert clamping for secure operation at high speeds
• Chip Evacuation: Patented design to prevent chip blockages in the groove
• Maximum RPM: Certified up to 17,200 RPM
• Series Range: Standard thicknesses 1.4–5.5 mm; cutter diameters 50–300 mm across the series

Designed to minimize downtime and maximize precision, the cutter’s insert system lets you swap worn cutting edges quickly without retooling. The chip-evacuation feature reduces debris buildup for smoother finishes, while the broad insert compatibility gives you the flexibility to match material and finish requirements. With a 200 mm diameter and 54 mm cutting depth, you achieve efficient material removal and stable cuts, supported by a robust clamping mechanism and high-speed capability up to 17,200 RPM. The 16-tooth configuration balances load for consistent, clean results across a range of CNGX applications.
